Audiometer 820M with Bone Conductor
ELECTRONICA Technologies · 137817
Article No. AK-ENT-006

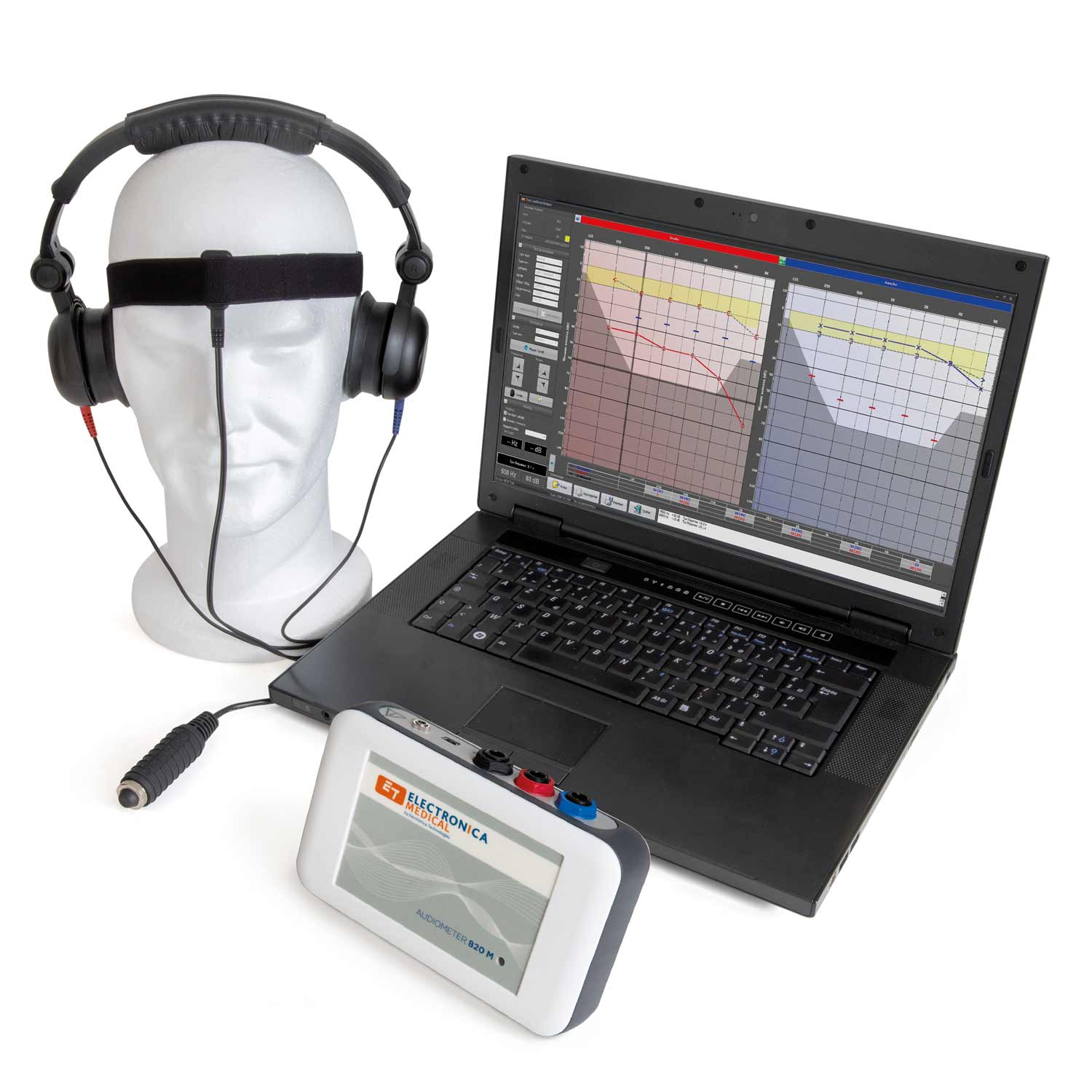

Scope of delivery: 1 audiometer 820M, 1 bone conductor B71W with headband, 1 patient response button, 1 USB cable, 1 USB stick with software and operating instructions The Audiometer 820M with bone conductor is suitable for air conduction measurement as well as bone conduction measurement and can be connected to a laptop or PC via a USB connection. The provided USB stick contains the application software, which can be installed on an unlimited number of computers and enables intuitive and interactive operation. In addition to standard tests, the 820M can also be used to perform the "Hughson Westlake test". For creating patient sheets, as well as printing, saving & exporting the data Frequency range (AC/BC) (11 values): 125, 250, 500, 750, 1000, 1500, 2000, 3000, 4000, 6000, 8000 Hz With early warning indicator (based on the arithmetic average of the measured age- and noise-induced hearing deficits)
Specifications
- Brand
- ELECTRONICA Technologies
- Model
- 137817
- Product type
- Audiometers
- Output level (AC)
- -10 to 100 dB HL (in 5dB steps)
- Output level (BC)
- -10 to 60 dB HL (in 5dB steps)
- Stimuli
- steady or pulse / left-sided, right-sided, binaural
- Test type
- standard or Hughson Westlake (standard, random & patient-specific)
- Weight (with accessories)
- 1.5 kg
- Dimensions (incl. case)
- 35 cm x 30 cm x 10 cm
- Warranty
- 3 years (except on headphones)
- CPU
- 1 GHz / RAM: 1 GB
- Hard disk space
- 50 MB
- Graphic resolution
- 1024 x 600
- Compatible operating systems
- Win 7, 8 or 10
