Functional Diagnostics

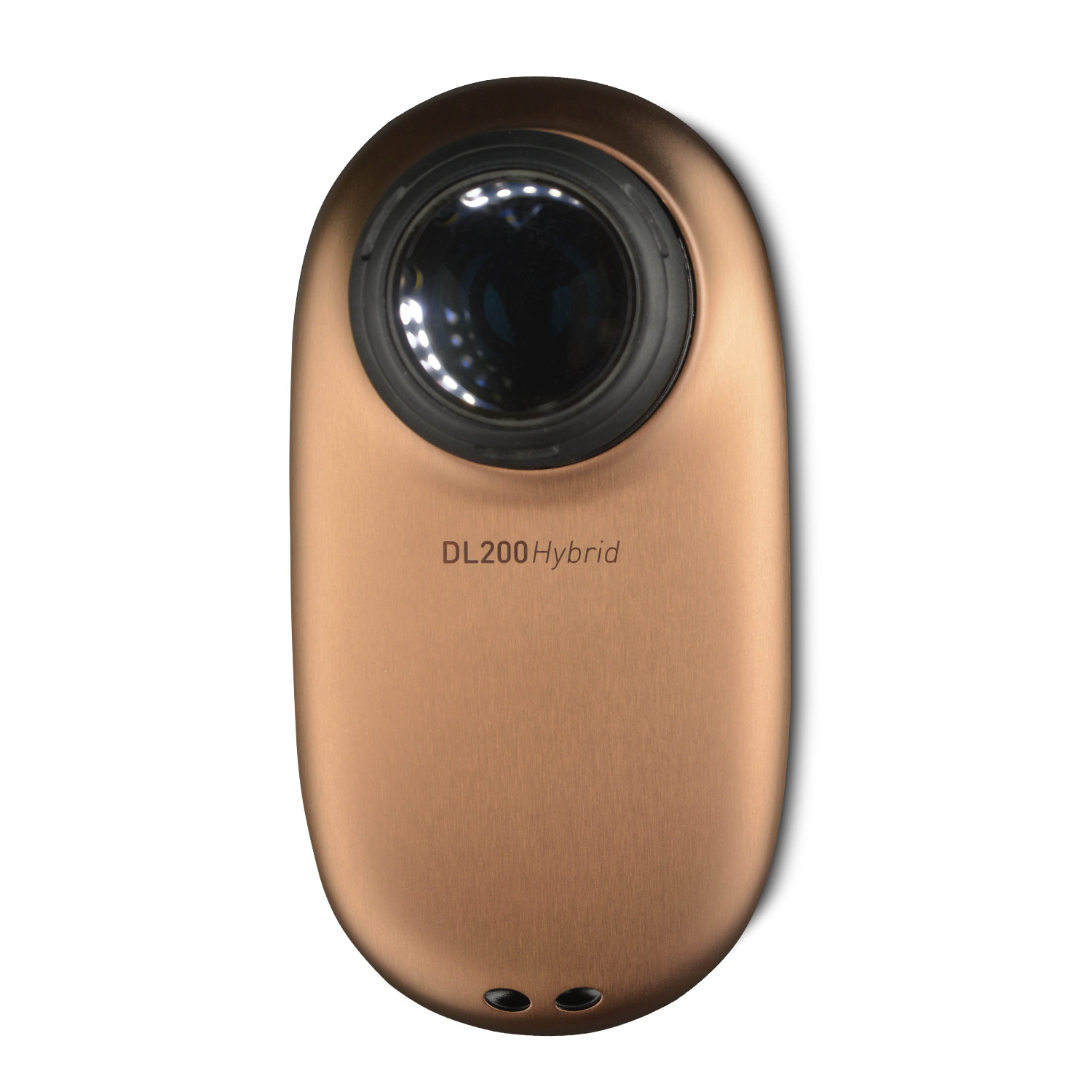

DermLite DL200 Hybrid
DermLite · DL200HY
Article No. AK-FD-129
The DermLite DL200 Hybrid offers dermatologists a modern and reliable solution for dermatoscopic examination. Thanks to the combination of 15 polarised and 6 non-polarised LEDs, the device enables differentiated visualisation of pigment and vascular structures – both with and without immersion fluid. By simply switching between lighting modes, you can flexibly respond to different diagnostic requirements and benefit from a significant improvement in image quality and diagnostic reliability. The compact design and ergonomic shape ensure comfortable handling in daily work in a medical practice and clinic routine. The extendable glass contact plate with 10-mm scale guarantees precise focusing and supports standardised documentation of findings. For use in teledermatological diagnostics or for digital documentation of findings, the DermLite DL200 Hybrid can be easily connected to numerous smartphones, tablets or cameras using the MagnetiConnect adapter. Special attention has been paid to patient safety and infection control: The included IceCaps disposable protective caps enable hygienic examinations and minimise the risk of cross-contamination. The energy-efficient LED technology and
Specifications
- Brand
- DermLite
- Model
- DL200HY
- Product type
- Dermatoscopes
- Device type
- Hybrid dermatoscope for professional medical applications
- Operating time
- up to 2 hours per charge
- Charge indicator
- four-stage
- Charging port
- USB (Micro-USB or USB-C, depending on model)
- Colours
- Silver, Gold
- Number of LEDs
- 21 (15 polarised, 6 non-polarised)
- Lens diameter
- 25 mm
- Magnification
- 10x
- Contact plate
- Removable, glass, with 10-mm scale
- Spacer
- Extendable, with snap closure
- Lighting modes
- Switchable between polarised and non-polarised light
- Compatibility
- MagnetiConnect adapter for smartphone, tablet and camera connection (adapter sold separately)
- Battery
- Lithium-ion, 3.7 V, 1800 mAh
