Functional Diagnostics

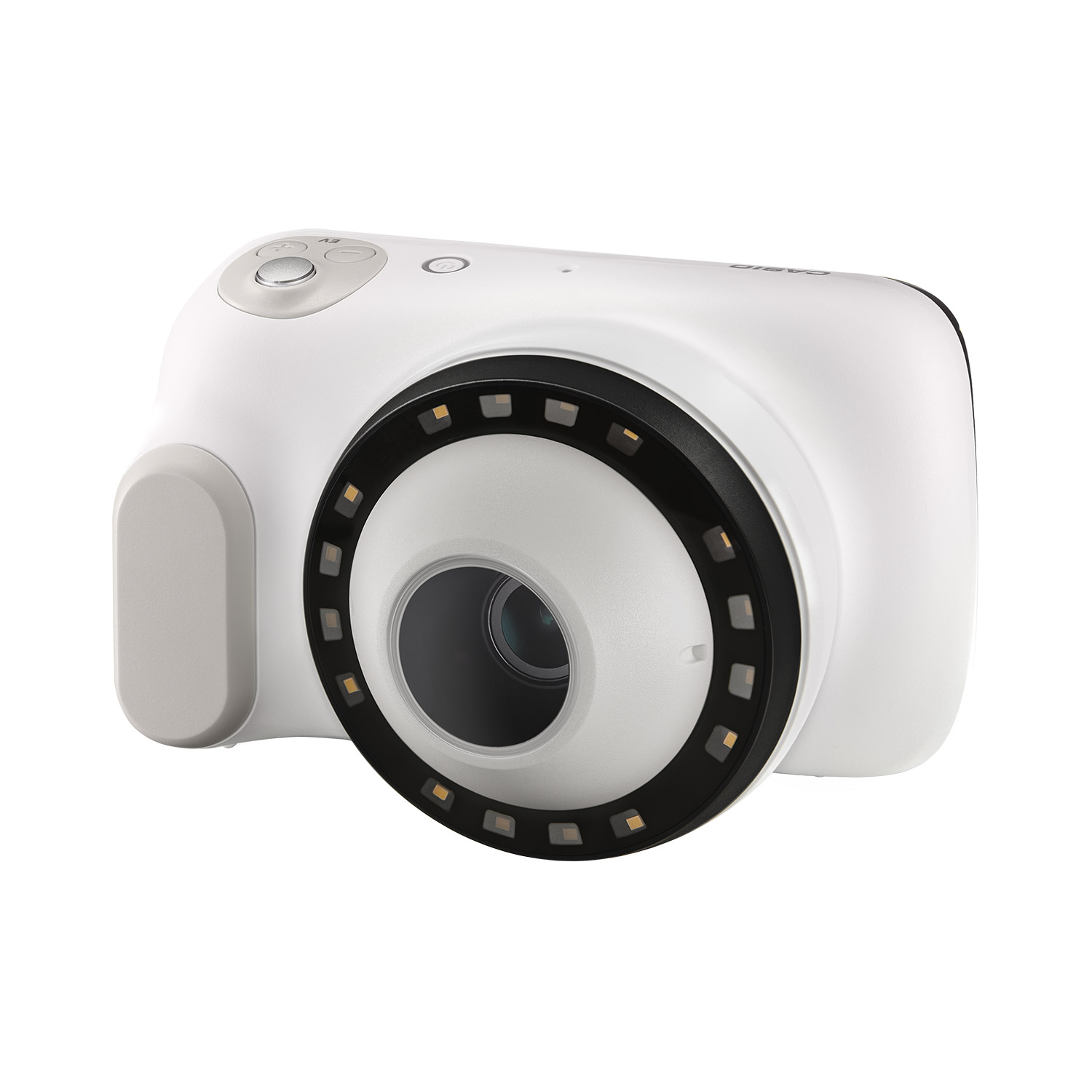

DZ-D100 Dermatology Camera

Casio · DZ-D100-ADA

Article No. AK-FD-169

The DZ-D100 digital dermatology camera has been specifically developed to meet the requirements of daily work in a medical practice and combines advanced imaging technology with high user-friendliness. With a CMOS sensor and a resolution of approximately 20.16 megapixels, the camera delivers razor-sharp images in both standard and close-up modes – without the need for time-consuming lens changes. This enables efficient documentation of the entire affected area as well as high-resolution detailed images of individual lesions within a very short time. The innovative single-shot system produces polarised, non-polarised and UV images (405 nm) at the touch of a button, supporting comprehensive assessment of skin structure and pigment distribution beneath the surface. The special LED ring illumination ensures uniform lighting and true-to-colour reproduction, regardless of the shooting mode. Thanks to the high-quality special lens, images are distortion-free right up to the edge – a decisive advantage for assessing the shape and extent of dermatological findings. The integrated scale overlay in close-up mode enables immediate size determination of lesions, which significantly simplifies f
