ENT

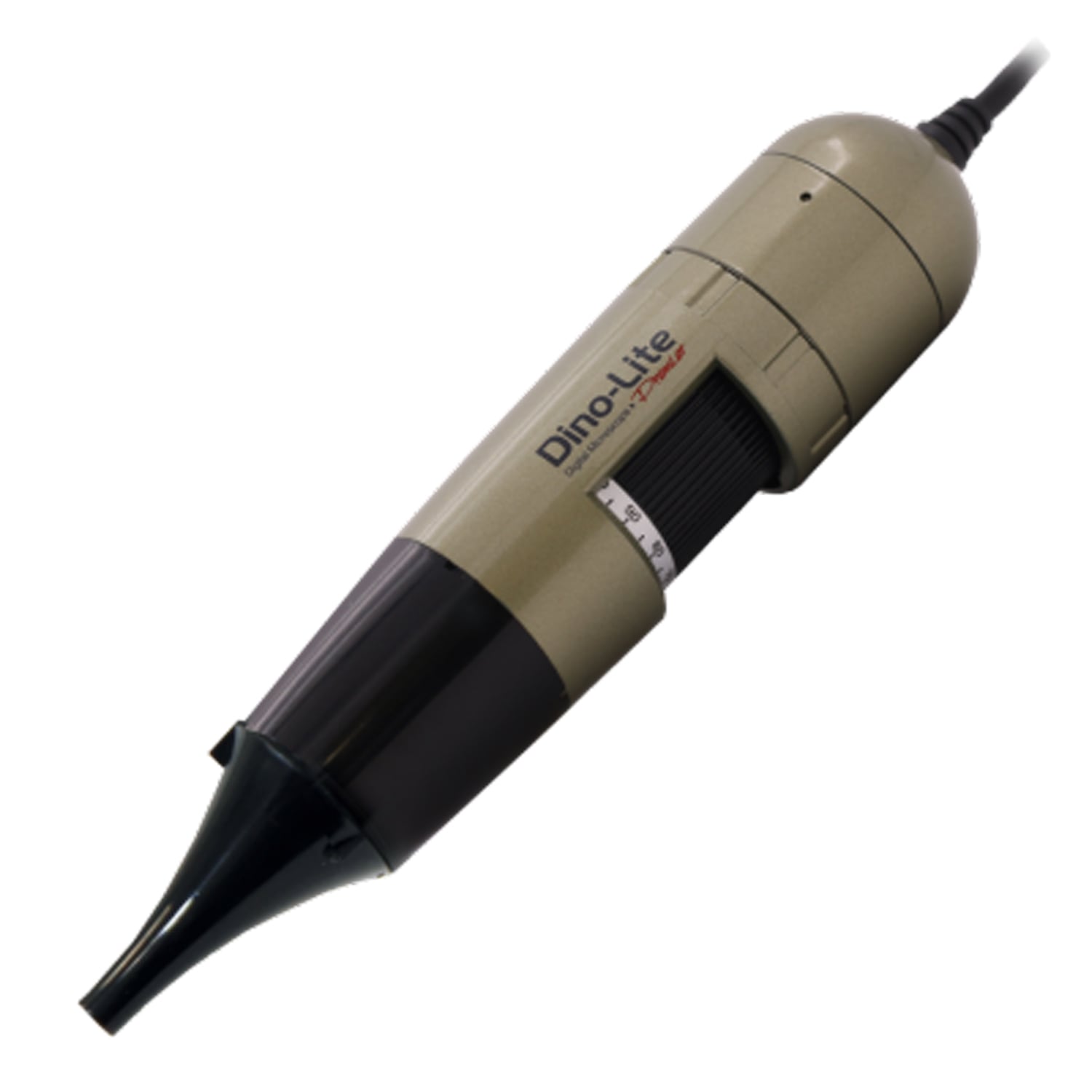

EarScope Pro

Dino-Lite · MEDL4E

Article No. AK-ENT-023

The EarScope Pro (MEDL4E) provides a compact and precise solution for examining the tympanic membrane and external auditory canal. Equipped with a high-resolution 1.3 megapixel CMOS camera and variable magnification from 55x to 90x, the device enables detailed visualisation of fine anatomical structures and supports the early detection of otological findings. Six integrated white LEDs provide uniform, glare-free illumination of the examination area, ensuring clear image quality and reliable assessment. A practical magnification lock maintains the selected magnification level even when examination pressure changes, supporting consistent imaging during use. For hygienic examinations, the EarScope Pro is supplied with single-use ear specula in sizes 3, 4, and 5 mm. This supports modern hygiene standards and helps reduce the risk of cross-contamination in clinical environments. The device is compatible with Windows and macOS systems and includes DinoCapture 2.0 (Windows) and DinoXcope (macOS) software for image and video recording. Thanks to the USB 2.0 interface, data can be transferred quickly and reliably, allowing straightforward documentation and archiving of examination findings.
