Functional Diagnostics
Electronic Height Measuring Rod
Soehnle Professional · 5003.01.001
Article No. AK-FD-184

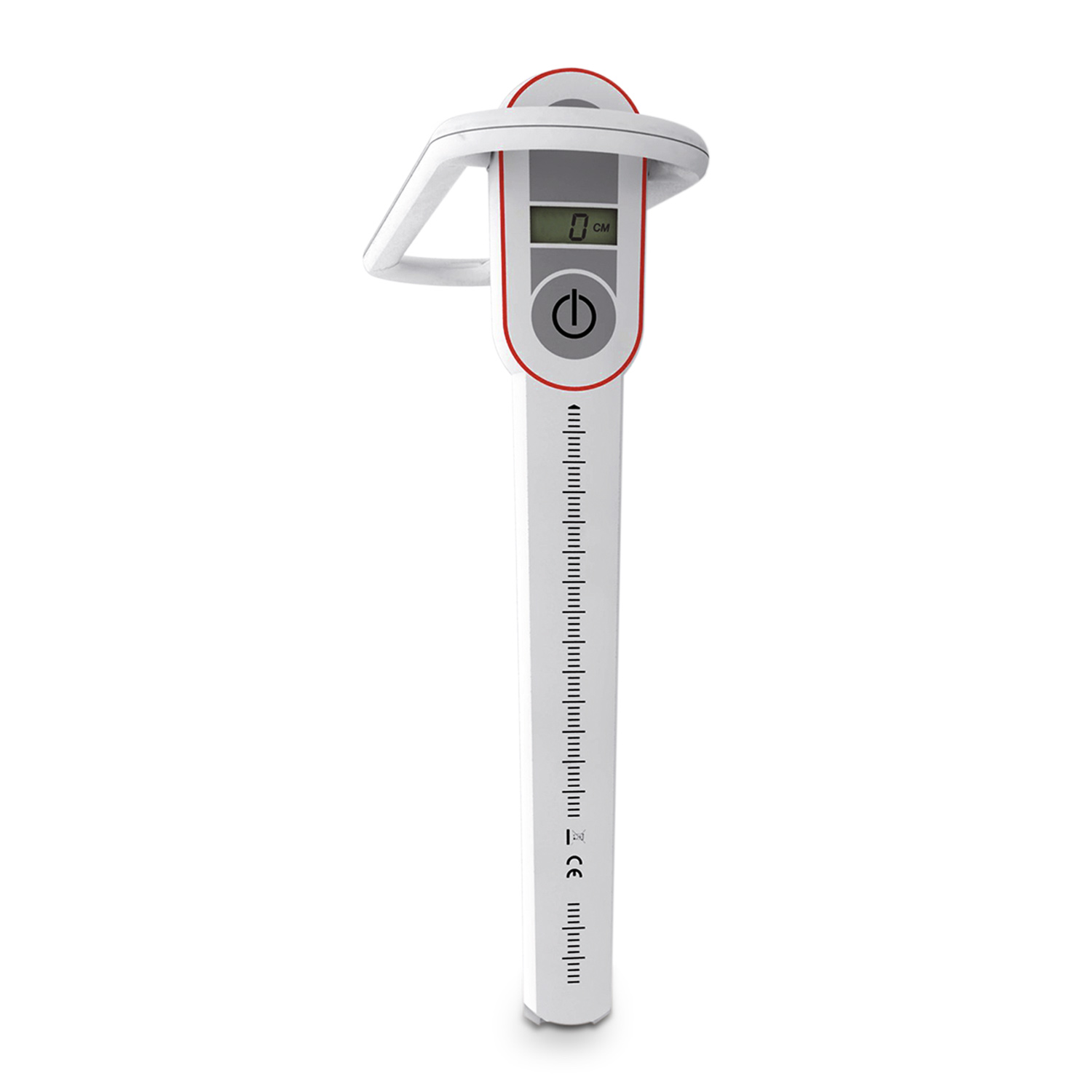

Soehnle Electronic Height Measuring Rod enables fast and precise height measurement in medical practices, clinics, and during home visits. The device uses ultrasonic measurement technology with integrated tilt sensor to ensure accurate results, even when alignment is not perfectly straight. An acoustic signal confirms completion of measurement, and the value is automatically displayed and held on the LCD screen for easy reading. The measuring range of 50–240 cm makes it suitable for both children and adults. Its foldable, compact design allows easy transport and space-saving storage. Free positioning in the room eliminates the need for wall mounting, improving workflow efficiency in clinical environments. An auto-off function helps conserve battery life. Cleaning: With a damp cloth and commercially available cleaning agent (no abrasive agents) General medicine and internal medicine: Height measurements as part of preventive care and diagnostics
Specifications
- Brand
- Soehnle Professional
- Model
- 5003.01.001
- Product type
- Stadiometers Tape Measures
- Measuring principle
- Ultrasound measuring technology, temperature compensated
- Measuring range
- 50–240 cm (graduated in 1 cm steps)
- Units
- Centimetres (cm) or inches (inch) selectable
- Digit height
- 9 mm
- Weight
- 250 g
- Housing material
- Plastic
- Dimensions
- 345 x 92 x 28 mm
- Power supply
- 2x 1.5 V AA batteries (not included)
- Energy-saving function
- Automatic switch-off (Auto-Off)
- Tolerance
- ±2 cm or ±1%
- Compliance
- In accordance with EC Directive 2004/108/EC (EMC)
- Warranty
- 2 years
- Paediatrics
- Measurement of body height in infants, children and adolescents
- Gynaecology and obstetrics
- Recording and documentation of growth progressions
- Endocrinology
- Monitoring of growth disorders
