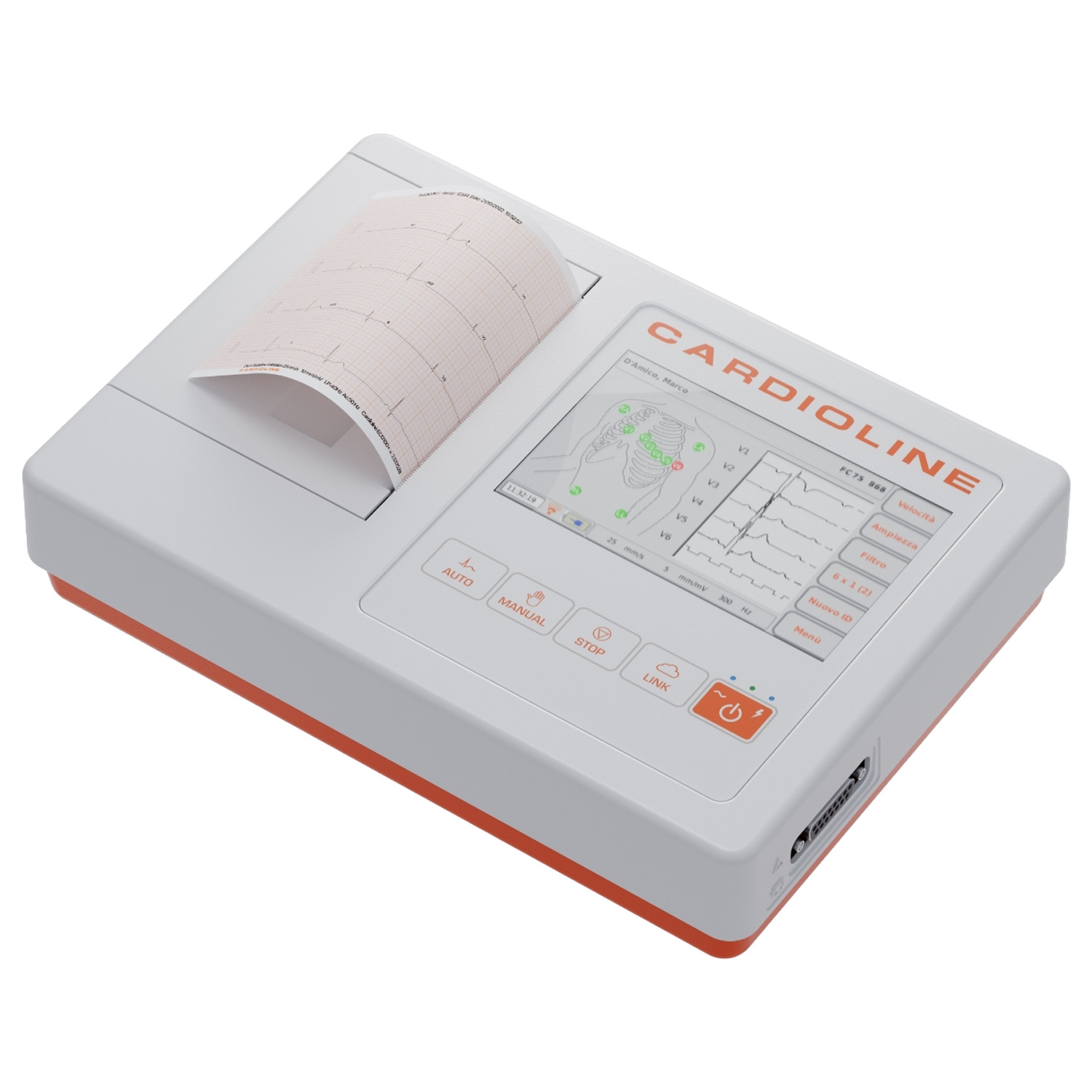

Elektrokardiograf Cardioline ECG 100
CARDIOLINE · 80509796
Article No. AK-CAR-220
The Cardioline ECG 100L offers you a reliable and flexible solution for electrocardiographic diagnostics in clinics and practices as a compact 6-channel ECG with 12 leads. The device enables comprehensive and evidence-based diagnostics in both adults and children – supported by the proven Glasgow interpretation algorithm, which provides detailed analyses according to current standards. The intuitive operation via the 5-inch touchscreen colour display with a clear step-by-step guide makes usage easier and supports efficient workflows, even in hectic situations. Visual indicators reliably inform about electrode contact and ongoing processes, contributing to patient safety and preventing misdiagnoses. Thanks to multiple operating modes (automatic, manual, rhythm analysis) and individually customisable print formats, the Cardioline ECG 100L is suitable for a wide range of clinical requirements. The rhythm analysis with heart rate trend and variability enables comprehensive assessment of cardiac events. Pacemaker detection as well as defibrillator protection according to AAMI/IEC standards ensure additional safety and compliance in everyday use. The high-resolution thermal printer deliv
Specifications
- Brand
- CARDIOLINE
- Model
- 80509796
- Product type
- Ecg Monitors
- Number of channels
- 6
- Leads
- 12 (I, II, III, aVR, aVL, aVF, V1–V6)
- Display
- 5″ touchscreen colour display with backlight
- Memory
- Up to 50 ECGs can be stored internally
- Operating modes
- Automatic, manual, rhythm
- Rhythm analysis
- 3 minutes including heart rate trend and variability
- Filters
- Advanced digital filter options
- Pacemaker detection
- Yes
- Defibrillator protection
- According to AAMI/IEC standards
- Power supply
- Mains operation or NiMH battery
- Battery operation
- Over 6 hours runtime, >500 ECGs per charge
- Charging time
- 4 hours to 85% battery capacity
