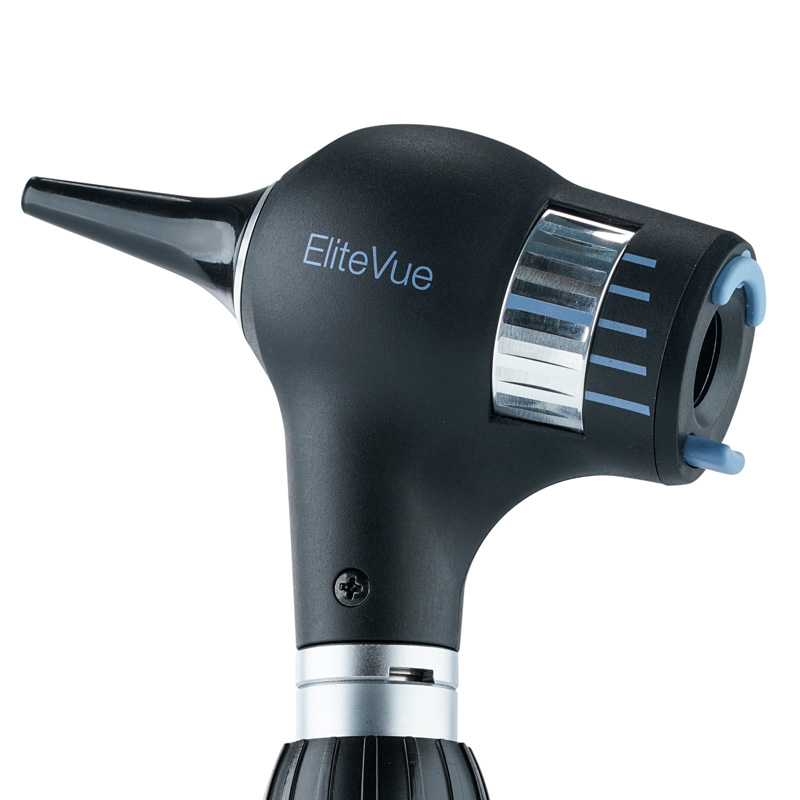

EliteVue Otoscope
Riester · 136065
Article No. AK-ENT-028
The EliteVue Otoscope from Riester has been specially developed for demanding otoscopic diagnostics in both clinical and practice settings. With its high-performance LED illumination (4,000 Kelvin, CRI = 92) and more than 5x magnification, it offers a significantly improved view of the ear canal and tympanic membrane. The viewing field, which is twice as large compared to standard otoscopes, enables a complete visualisation of the tympanic membrane, greatly increasing diagnostic confidence and supporting patient safety. The reflection-optimised high-performance glass optics provide razor-sharp and high-contrast images. The depth of field can be adjusted single-handedly using the focusing wheel, allowing you to flexibly respond to anatomical conditions and different patient groups. With the single-handed SpecEjec ejection mechanism, the used ear funnel can be removed with minimal contamination – an important contribution to infection prevention in daily work in a medical practice. The device is equipped with an insufflation port for pneumatic otoscopy and is therefore also suitable for assessing tympanic membrane mobility. The various LED options and compatibility with ri-scope L ha
Specifications
- Brand
- Riester
- Model
- 136065
- Product type
- Otoscopes
- Field of view diameter
- 11 mm (at 15–20 mm distance)
- LED lifespan
- up to 100,000 hours
- Dimensions
- 70 x 98 x 39.5 mm (H x L x W)
- Ambient temperature
- 0 °C to 40 °C
- Relative humidity
- 30% to 70% (non-condensing)
- Air pressure
- 800 hPa – 1100 hPa
- Temperature
- –10 °C to 55 °C
- Warranty
- 2 years
- Maintenance
- No special maintenance required
- Magnification
- More than 5x
- Optics
- Reflection-optimised high-performance glass optics
- Focusing
- Single-handed adjustment via focusing wheel
