Imaging & Radiology

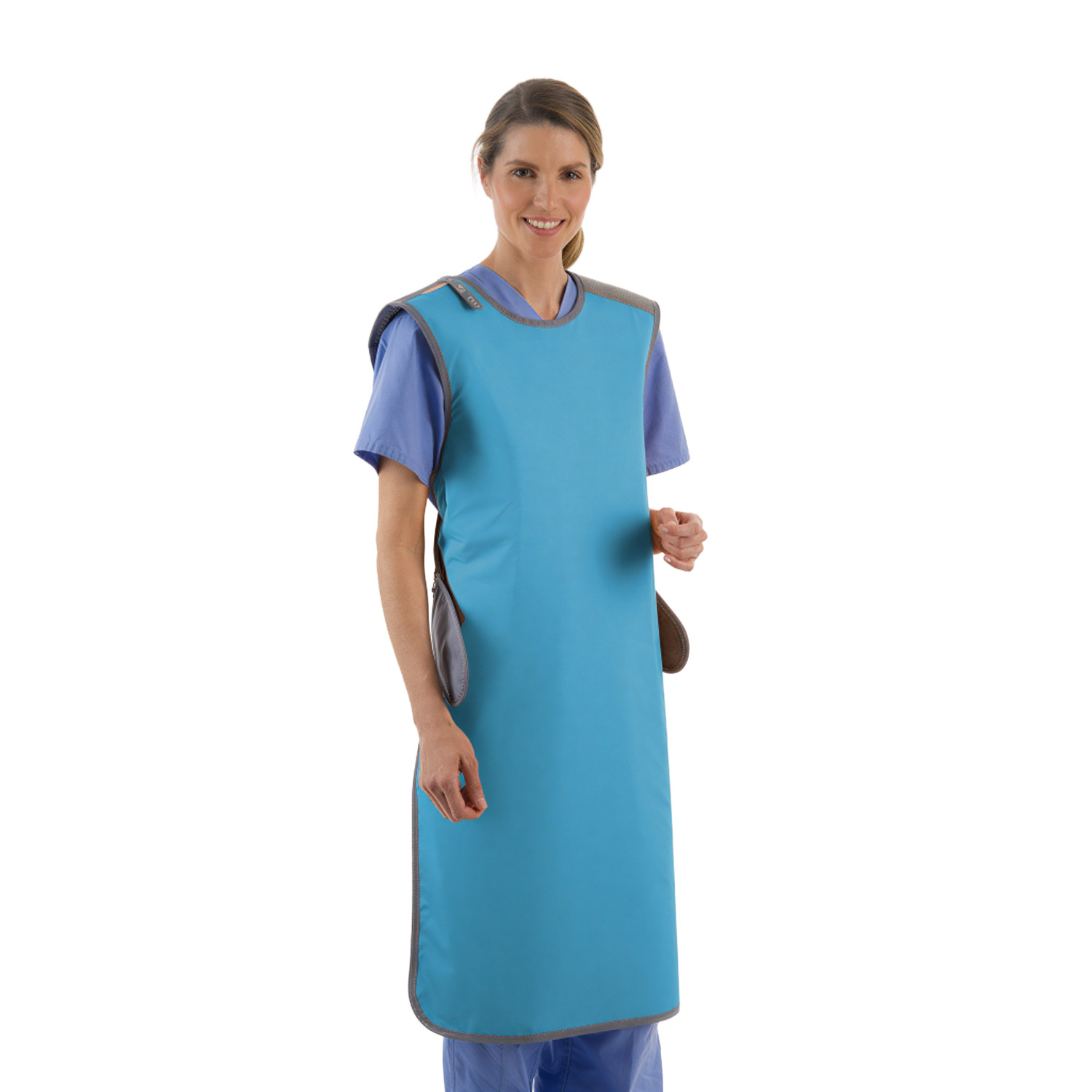

ERGONOMIC RA650 Front Apron
MAVIG · RA650+5+2+M+10+22+2+1
Article No. AK-IR-043
The ERGONOMIC RA650 Front Apron provides comprehensive radiation protection with maximum wearing comfort, specifically designed for radiological environments with predominantly frontal exposure. The apron delivers full frontal coverage (approx. 60% body circumference) and is ideal for interventional procedures and diagnostic applications where protection from the front is essential. Thanks to innovative NovaLite Plus radiation protection materials, the apron offers exceptionally low weight combined with high shielding performance, helping to reduce strain on the back and shoulders during prolonged use. Included soft shoulder pads provide additional comfort in daily clinical workflows. The wide cross straps and high-quality hook-and-loop fastening system ensure quick donning and doffing – even over sterile surgical clothing. Multiple size, length, and colour options allow for flexible adaptation to individual requirements. The ComforTex HPMF Hybrid outer material is PFC-free, certified according to Oeko-Tex® Standard 100, and designed for durability, hygiene, and environmental compatibility. The RA650 complies with (EU) 2016/425, (EU) 2017/745 and IEC/DIN EN 61331-1 and -3 standards
Specifications
- Brand
- MAVIG
- Model
- RA650+5+2+M+10+22+2+1
- Product type
- X Ray Equipment
- Radiation protection material
- NovaLite Plus (lead-containing, recyclable, low weight)
- Front
- 0.50 mm Pb
- Back
- 0.25 mm Pb (optionally without back protection for weight reduction)
- Outer material
- ComforTex HPMF Hybrid (PFC-free, complies with Oeko-Tex 100 standard)
- Closure system
- High-quality hook-and-loop fasteners in the front area
- Colours
- Various options available
- Accessories (optional)
- Breast pocket, embroidery, custom-made, bolero, thyroid-sternum protection, shoulder relief/cross straps
- Hygiene
- Optimised cleaning properties, low particle emission
- RFID chip
- Integrated as standard for digital inventory management
- IEC 61331-1
- 2014 / DIN EN 61331-1:2016
- IEC 61331-3
- 2014 / DIN EN 61331-3:2016
- Lead equivalence front
- 0.50 mm Pb
