IriScope Wireless

Ophthalmology

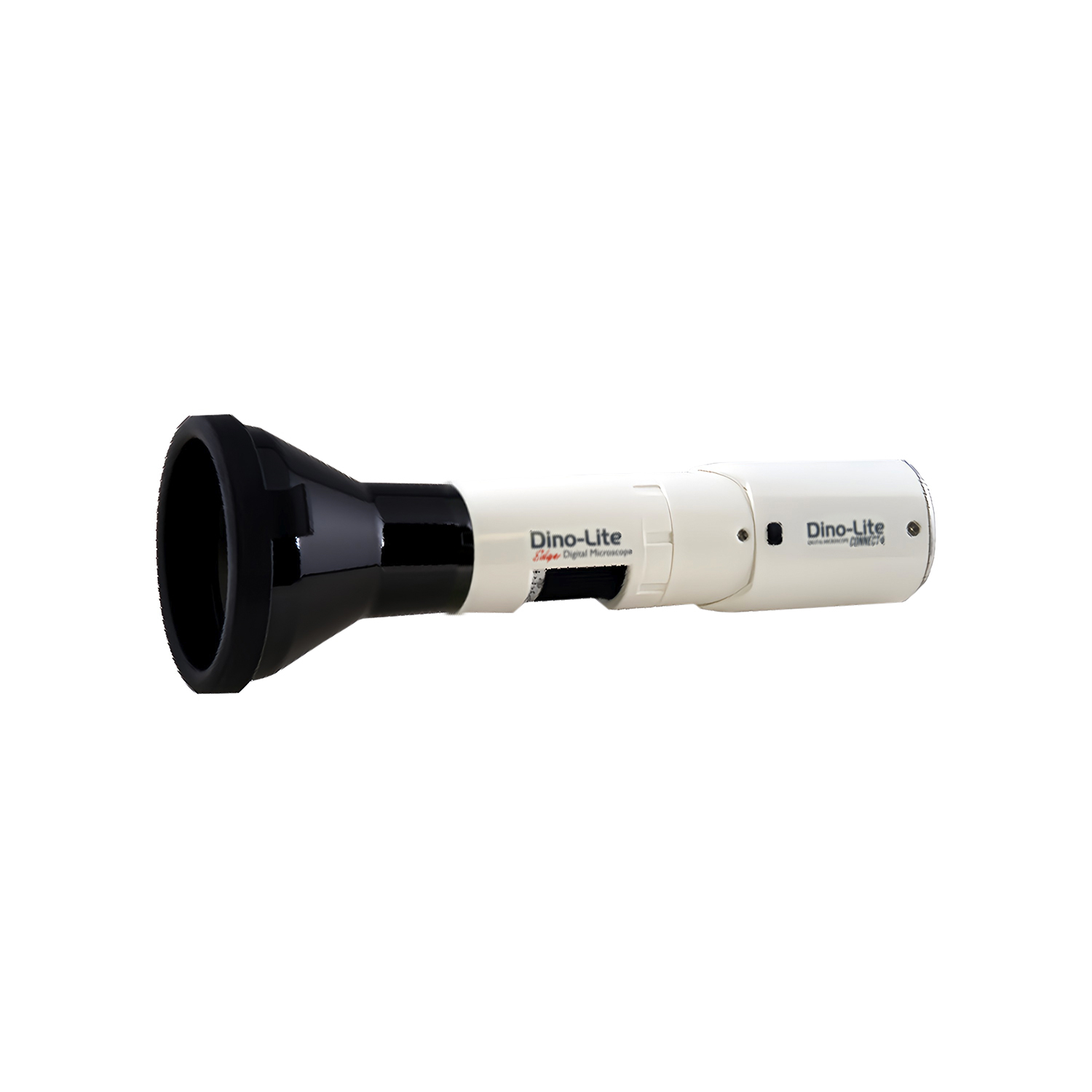

IriScope Wireless

Dino-Lite · MEDLW4R

Article No. AK-OPH-026

The IriScope Wireless is a compact digital microscope specifically designed for the examination of the iris and is used in both general medicine and naturopathy. Thanks to the high magnification rate of 10x to 20x, even the finest details of the iris can be captured, which would not be visible to the naked eye. This allows irritations, foreign bodies or other abnormalities to be precisely documented and assessed. The integrated LED illumination with two white and two yellow LEDs ensures optimal lighting of the examination area. Especially for dark irises, the yellow LEDs enable detailed imaging. The special front cap ensures the correct distance between camera and eye and increases user-friendliness as well as patient safety. With just one button press, high-resolution images and videos can be created, which can be transferred and viewed directly on Windows or MacOS systems. The associated software, which can be downloaded free of charge from the manufacturer, also offers the possibility for measurement and analysis of the recordings. This supports efficient documentation of findings and promotes the direct involvement of patients in the diagnostic process. The IriScope Wireless is

Equipment standard by AKLION.

Specifications

Brand
Dino-Lite
Model
MEDLW4R
Product type
Ophthalmoscopes
Type
Digital microscope for iris examination (wireless)
Magnification
10x–20x (continuously adjustable)
Resolution
1.3 megapixels (1280 x 1024)
Sensor
CMOS
Lens
Glass lens with anti-reflective coating
IR filter
IR cut-off filter >650 nm
Interface
USB 2.0; wireless transmission via optional wireless module
Operating systems
Windows 7, 8, 10, 11; MacOS 10.9 and higher
Video formats Windows
WMV, FLV, SWF
Image formats MacOS
JPEG, PNG
Video formats MacOS
MOV
Dimensions
10.5 x 3.2 cm
Weight
95 g
Cable length (for USB use)
1.8 m
Housing
Plastic, white
