ENT

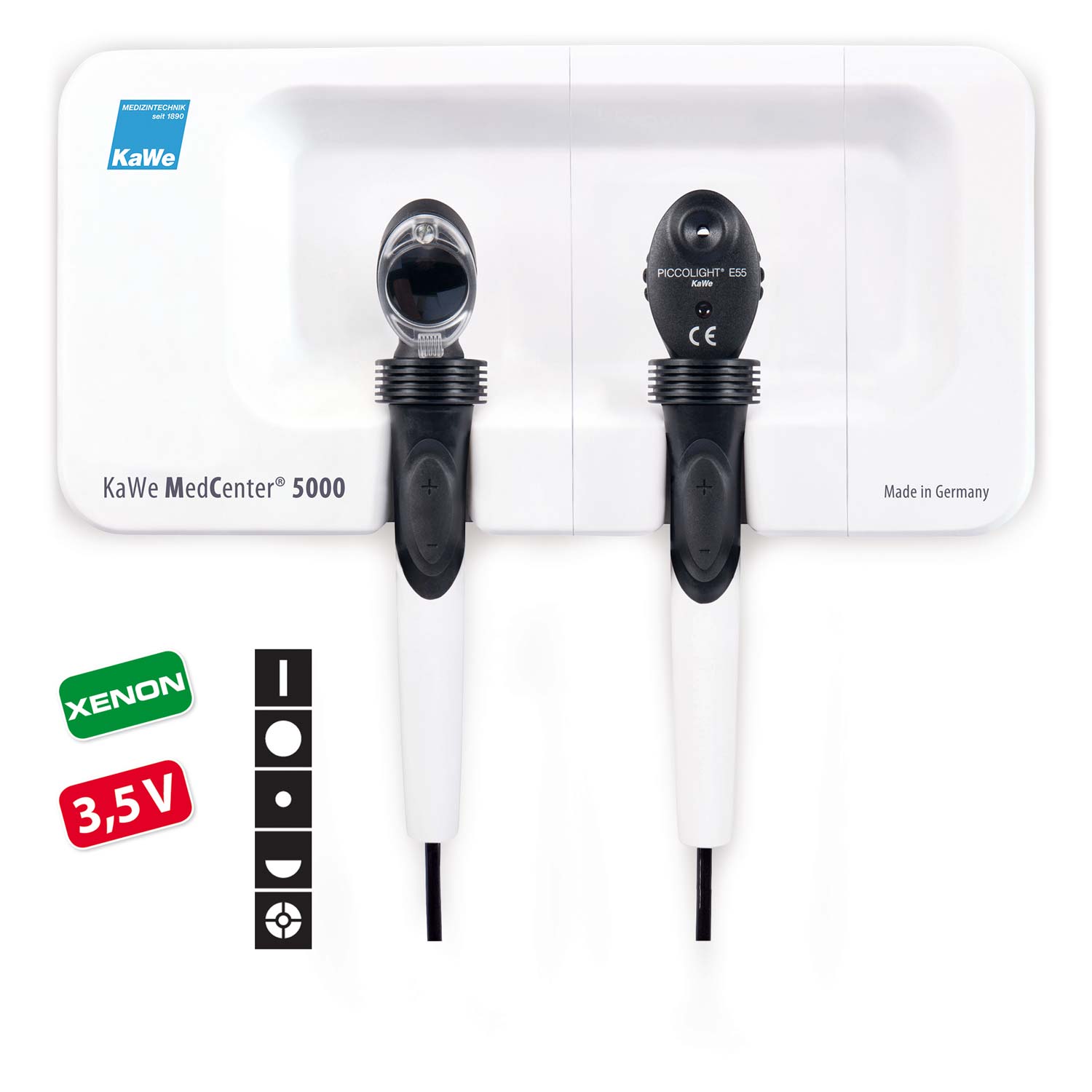

KaWe MedCenter 5000 Set
KaWe · 285.010.002
Article No. AK-ENT-050
The KaWe MedCenter 5000 Set is a modern, modular diagnostic system designed for ear and eye examinations in clinical practice. The combination of otoscope and ophthalmoscope heads allows efficient diagnostics at a central wall-mounted station, ensuring immediate readiness for use thanks to a continuous power supply. The fixed installation supports structured organisation and allows for easy cleaning and disinfection of the housing. The system offers flexible expandability, supporting up to three handles and an optional ear speculum module, so it can be adapted to individual requirements. High-quality construction combined with xenon/halogen or high-performance LED illumination supports precise visualisation. The otoscope provides 3× magnification, while the ophthalmoscope allows detailed adjustment for differentiated examination results. Different configuration options are available, and all components required for installation are included. Interchangeable mains plugs provide additional flexibility for use in different clinical environments. The smooth, durable surfaces of both housing and handles allow for quick and effective cleaning and disinfection. The KaWe MedCenter 5000 Set
Specifications
- Brand
- KaWe
- Model
- 285.010.002
- Product type
- Otoscopes
- Models
- Piccolight C (xenon), Piccolight F.O. LED (high-power LED)
- Illumination
- 3.5 V xenon lamp or 3.5 V high-power LED
- Spiral cable usable length
- 2800 mm (700 mm coiled length)
- Weight base module
- approx. 810 g
- Weight expansion module
- approx. 370 g
- Power supply
- mains operation, interchangeable mains plug
- Number of handles
- 2 (expandable to up to 3 handles)
- Housing material
- can be disinfected
- Otoscope magnifier
- 3x magnification
- Ophthalmoscope illumination
- 3.5 V xenon/halogen lamp (depending on model)
- Piccolight E56
- +20 to –20 dpt
- Eurolight E25
- +36 to –36 dpt
