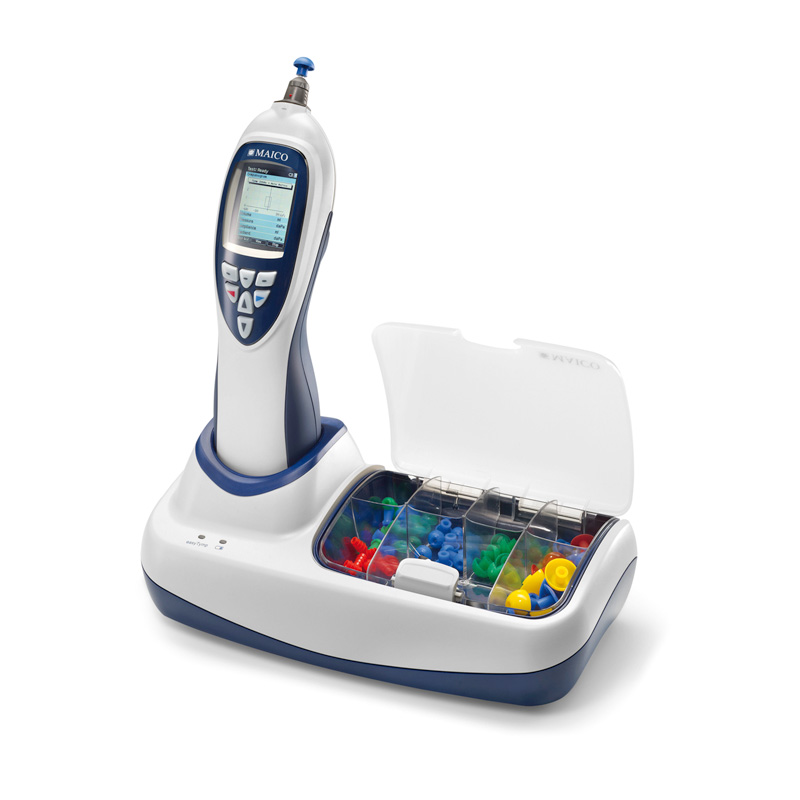

Maico EasyTymp Tympanometer
Maico · 132760
Article No. AK-ENT-073
The Maico EasyTymp is a professional tympanometer that can be used for both tympanometry and reflex threshold measurements in adults and children. Thanks to its ergonomic design with its easily accessible control panel and preset test protocols, examinations with the EasyTymp are especially comfortable. The Maico EasyTymp is supplied with the relevant tympanometry software, so data can be quickly and easily transferred to the practice PC via USB. The Maico EasyTymp tympanometer is available with an external printer, an integrated earplug box or as a handheld. For the variant with an integrated printer, the earplug box is supplied to store disposable earplugs, but it is not integrated in the base station. Measurement frequency, level: 226 Hz ± 1%, 69 dB SPL in 2 cm3 Operating system: Win XP Professional (SP3), Win 7, Win Professional or Ultimate version for 32 and 64 bit, Win 8, Professional or Enterprise version for 32 and 64 bit, .NET Framework 3.5, SP1
Specifications
- Brand
- Maico
- Model
- 132760
- Product type
- Audiometers
- Dimensions
- 8 x 30 x 7 cm (W x D x H)
- Weight
- 427g
- Pressure range
- + 200 to - 400 daPa
- Volume range
- 0.1 to 8.0 ml
- Measurement accuracy
- ± 5% or ± 10 daPa
- Test time
- < 3 seconds
- Reflex measurement test frequencies
- 500, 1,000, 2,000, 4,000 Hz ± 3%
- Measurement method
- ipsilateral
- PC System RequirementsProcessor
- Intel Dual Core 1.8 GHz
- Memory
- 1 GB RAM, 2 GB RAM with Windows 7
- Graphics
- min. 1024 x 768 (1280 x 1024 or higher recommended)
- Version 1
- easyTymp with integrated earplug box
- Version 2
- easyTymp with external printer
- Version 3
- easyTymp Handheld (without base station)
