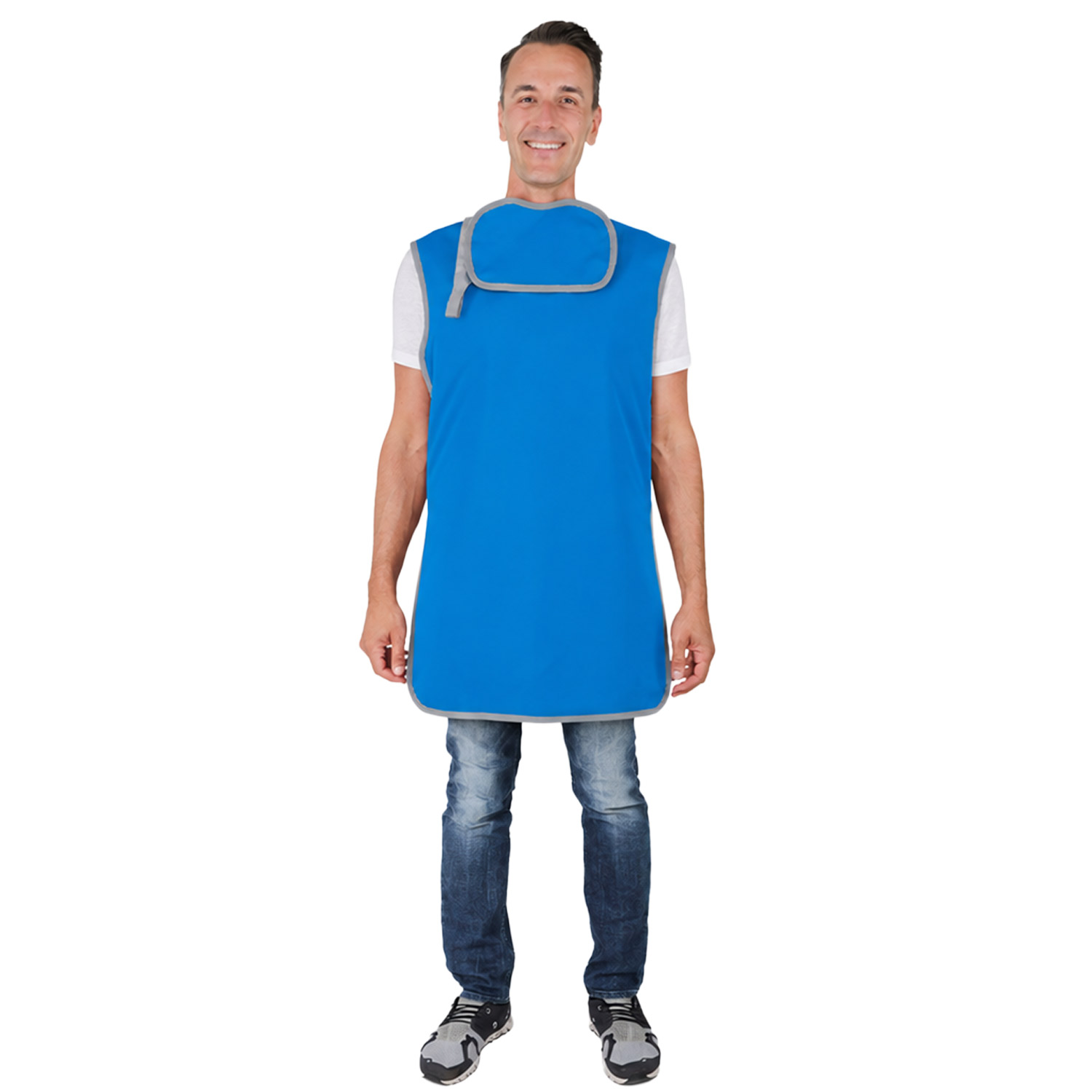

RD639 Allround Protective Apron
MAVIG · RD63933S +22 +41
Article No. AK-IR-078
The RD639 Allround Protective Apron is designed for use in digital volume tomography (DVT) and provides comprehensive radiation protection for patients at both the front and back. The NovaLite® Plus shielding material (0.35 mm Pb equivalent) ensures reliable protection across the 50–150 kV X-ray range and complies with IEC 61331-1:2014 and DIN EN 61331-1:2016 standards. For enhanced patient safety, an integrated height-adjustable thyroid shield is permanently included without interfering with image quality. A shoulder Velcro fastening system enables easy side application, while an additional rear closure allows individual adjustment for a secure fit. The ComforTex® HPMF Duplex outer material is PFC-free, Oeko-Tex® 100 certified, and designed for hygienic cleaning and low particle emission. An integrated RFID chip supports efficient tracking and documentation. Supplied with a special hanger AW106, the RD639 complies with EU Regulations 2016/425 (PPE) and 2017/745 (Medical Devices) and is available in multiple adult sizes. Application area: Radiation protection for digital volume tomography (DVT) and other X-ray applications (50–150 kV) Scope of delivery: 1 Full Protection Apron in s
Specifications
- Brand
- MAVIG
- Model
- RD63933S +22 +41
- Product type
- X Ray Equipment
- Radiation protection material
- NovaLite® Plus (lead-containing, recyclable)
- Lead equivalence
- 0.35 mm Pb (front and back)
- Surface weight
- 4.40 kg/m²
- Thyroid protection
- Integrated, height-adjustable
- Shoulder
- Velcro fastener (side opening, easy to put on)
- Back
- Velcro fastener (adjustable circumference)
- Outer material
- ComforTex® HPMF Duplex
- IEC 61331-1
- 2014 / DIN EN 61331-1:2016 (radiation protection)
- RFID chip
- Sewn into the label, for digital management
