Functional Diagnostics

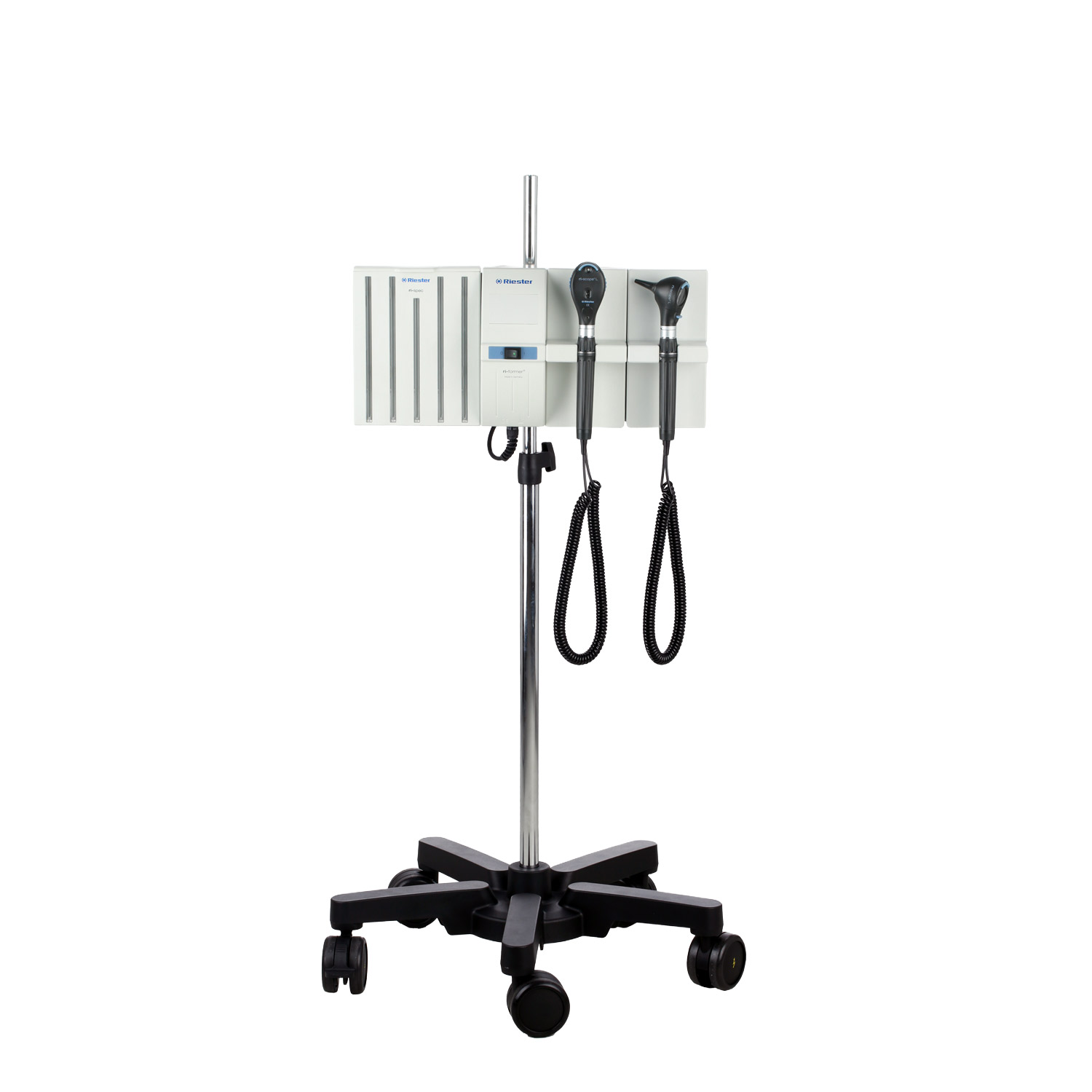

ri-former Diagnostic Station - Mobile Base
Riester · 3652-500
Article No. AK-FD-449
The ri-former Diagnostic Station with mobile base is a modular diagnostic system designed for the versatile requirements of clinics, medical practices, and hospitals. With a centralised power supply and the option to use up to three diagnostic handles simultaneously, it enables flexible and efficient patient care. For daily examinations in ENT, ophthalmology, and dermatology, it offers compatibility with up to six interchangeable instrument heads: otoscope, ophthalmoscope, dermatoscope, tongue depressor holder, nasal speculum, and light conductor. The mobile stand features a high-quality, height-adjustable stainless steel tube and antistatic, smooth-running castors, two of which are lockable. This ensures safe and effortless mobility within clinical environments. Its robust base with a 54 cm diameter provides reliable stability even with frequent repositioning. A central power supply (100–240 V AC, 50/60 Hz) ensures continuous diagnostics and eliminates the need for battery changes, reducing maintenance effort. The diagnostic handles include the proven rheotronic® function, allowing individual adjustment of light intensity for optimal examination conditions. Patient safety and hygi
Specifications
- Brand
- Riester
- Model
- 3652-500
- Product type
- Wall Units
- Fields of application
- ENT, ophthalmology, dermatology, general medicine
- Number of diagnostic handles
- 2 handles
- Protection class
- Applied part type B, protection class II
- Diagnostic station
- 200 x 180.5 x 75 mm, approx. 800 g
- Mobile base
- Stainless steel, height-adjustable (118–140 cm)
- Base diameter
- 54 cm
- Power-saving automatic
- Handle switches off automatically after approx. 3 minutes
- Input
- 100–240 V AC, 50/60 Hz, 0.6 A
- Output
- 5 V DC, 3 A, 15 W
- Operating conditions
- 0 °C to 40 °C, 10% to 85% relative humidity
- Air pressure range
- 700 to 1050 hPa
- Applied part
- Type B, protection class II
