Functional Diagnostics
ri-former Diagnostic Station - Rail Model
Riester · 3652-400
Article No. AK-FD-450

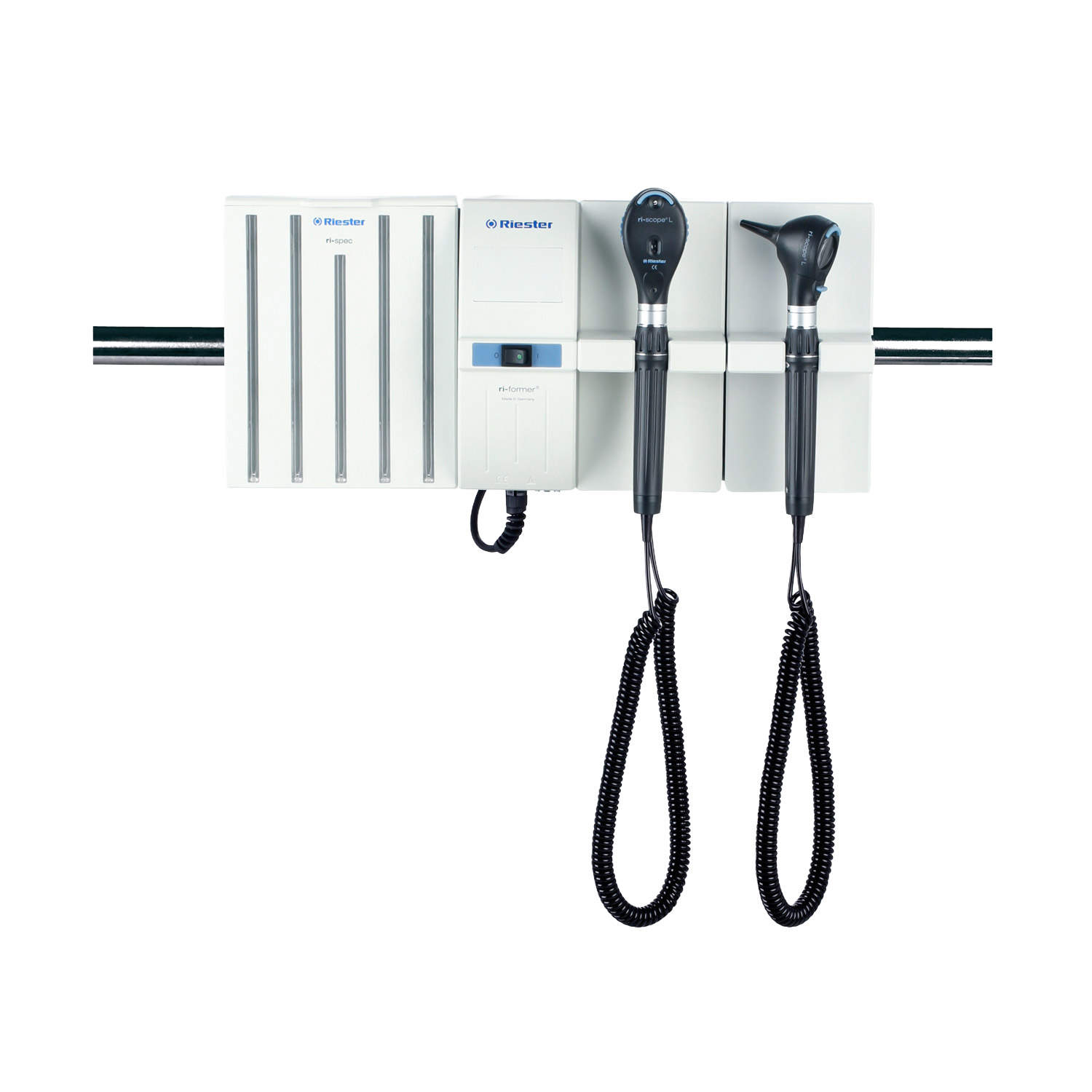

The ri-former Diagnostic Station – Rail Model from Riester provides a modular solution for non-invasive diagnostics in daily medical practice. Designed for horizontal mounting on medical rails, the system integrates seamlessly into existing clinical workflows. Its modular concept allows flexible adaptation to individual departmental requirements. A central power supply enables simultaneous use of two diagnostic handles, each compatible with six interchangeable instrument heads: otoscope, ophthalmoscope, dermatoscope, tongue depressor holder, nasal speculum, and light conductor. An integrated ri-spec specula dispenser supports hygienic handling of ear and nasal specula, helping to reduce cross-contamination and improve patient safety. Five funnel sizes allow patient-specific selection and efficient workflow through easy refilling and cleaning. The ri-former Diagnostic Station complies with Medical Device Regulation (EU) 2017/745 and is classified as a Type B applied part. It provides a reliable infrastructure for routine use in hospitals and medical practices and is suitable for all patient groups. Its robust, easy-to-clean design supports efficient, evidence-based diagnostics and c
Specifications
- Brand
- Riester
- Model
- 3652-400
- Product type
- Wall Units
- Diagnostic station
- 200 × 180.5 × 75 mm
- Weight
- 800 g
- Duty cycle
- ON: 1 minute, OFF: 5 minutes
- Input
- 100–240 V AC, 50/60 Hz, 0.6 A
- Output
- 5 V DC, 3 A, 15 W
- Temperature
- 0 °C to 40 °C
- Relative humidity
- 10% to 85%
- Air pressure
- 700 to 1050 hPa
- Classification
- Type B applied part, protection class II
