Functional Diagnostics
ri-former Diagnostic Station - Wall Model
Riester · 3650-300
Article No. AK-FD-451

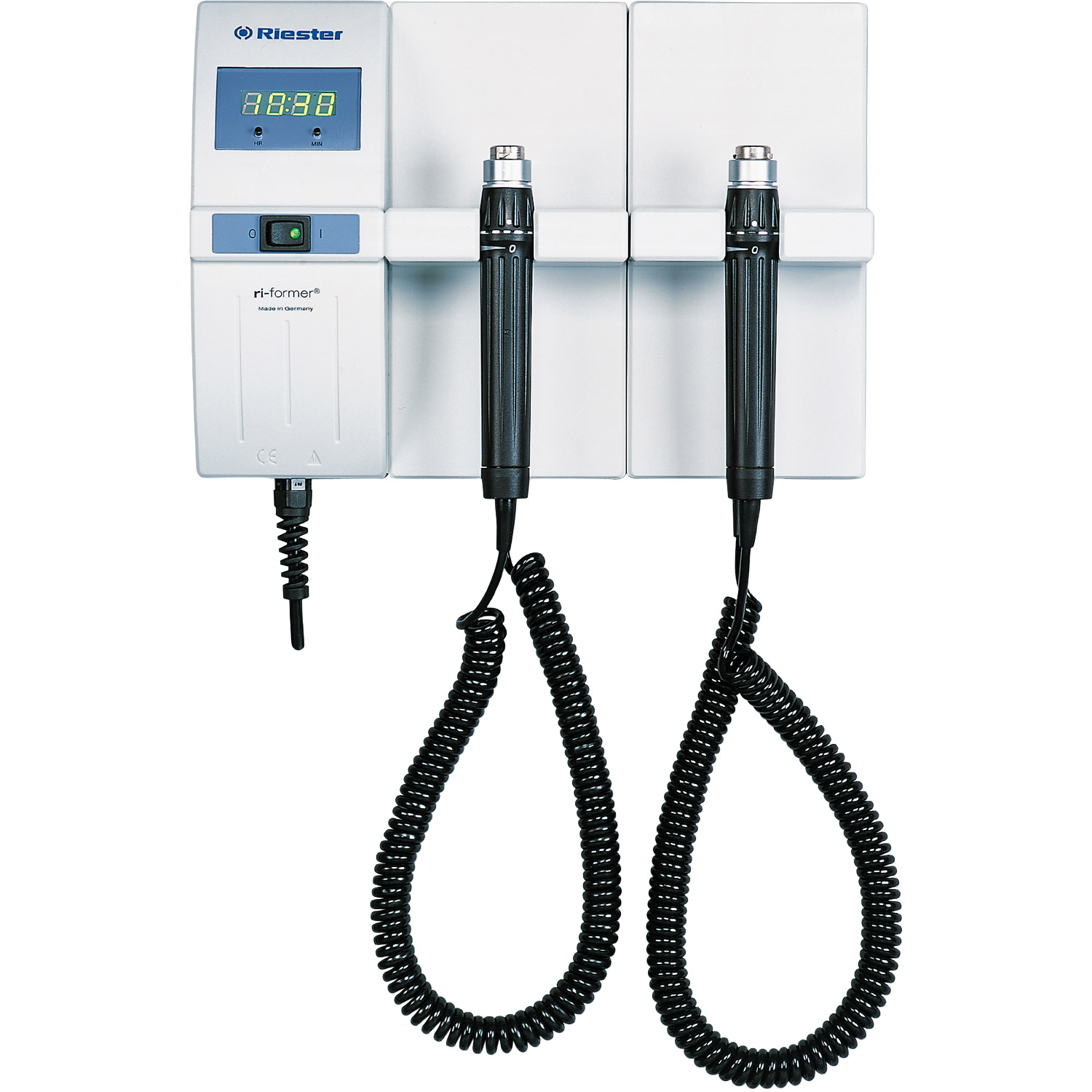

The ri-former Diagnostic Station – Wall Model from Riester provides a reliable and modular solution for non-invasive diagnostics in daily medical practice. Designed for wall mounting, the system can be equipped with one or two handles, allowing flexible adaptation to individual practice and ward requirements. A centralised power supply ensures continuous readiness for use and high operational reliability. The diagnostic handles are compatible with up to six interchangeable instrument heads, including otoscope, ophthalmoscope, dermatoscope, tongue depressor holder, nasal speculum and light conductor. The ri-former Diagnostic Station complies with Medical Device Regulation (EU) 2017/745 and meets electromagnetic compatibility standards (IEC 60601-1-2). Type B applied parts and practical features such as automatic handle shut-off when not in use enhance patient safety and improve operational efficiency in clinical environments. 1x ri-former Diagnostic Station – Wall Model (depending on the variant with 1 or 2 handles, each with or without clock) Note: The instrument heads are available separately and are not included in the scope of delivery.
Specifications
- Brand
- Riester
- Model
- 3650-300
- Product type
- Wall Units
- Diagnostic station
- 200 x 180.5 x 75 mm
- Weight
- approx. 800 g
- Specialties
- General medicine, ENT (ear, nose and throat), ophthalmology, dermatology
- Input
- 100–240 V AC, 50/60 Hz, 0.6 A
- Output
- 5 V DC, 3 A, 15 W
- Output 1
- 1 x 3.5 V DC, 700 mA
- Output 2
- 2 x 5 V DC, each 1.15 A
- Operating temperature
- 0 °C to 40 °C
- Operating humidity
- 10% to 85% relative humidity
- Storage/transport
- –5 °C to 50 °C, 10% to 85% r.h.
- Air pressure
- 700 to 1050 hPa
