ENT

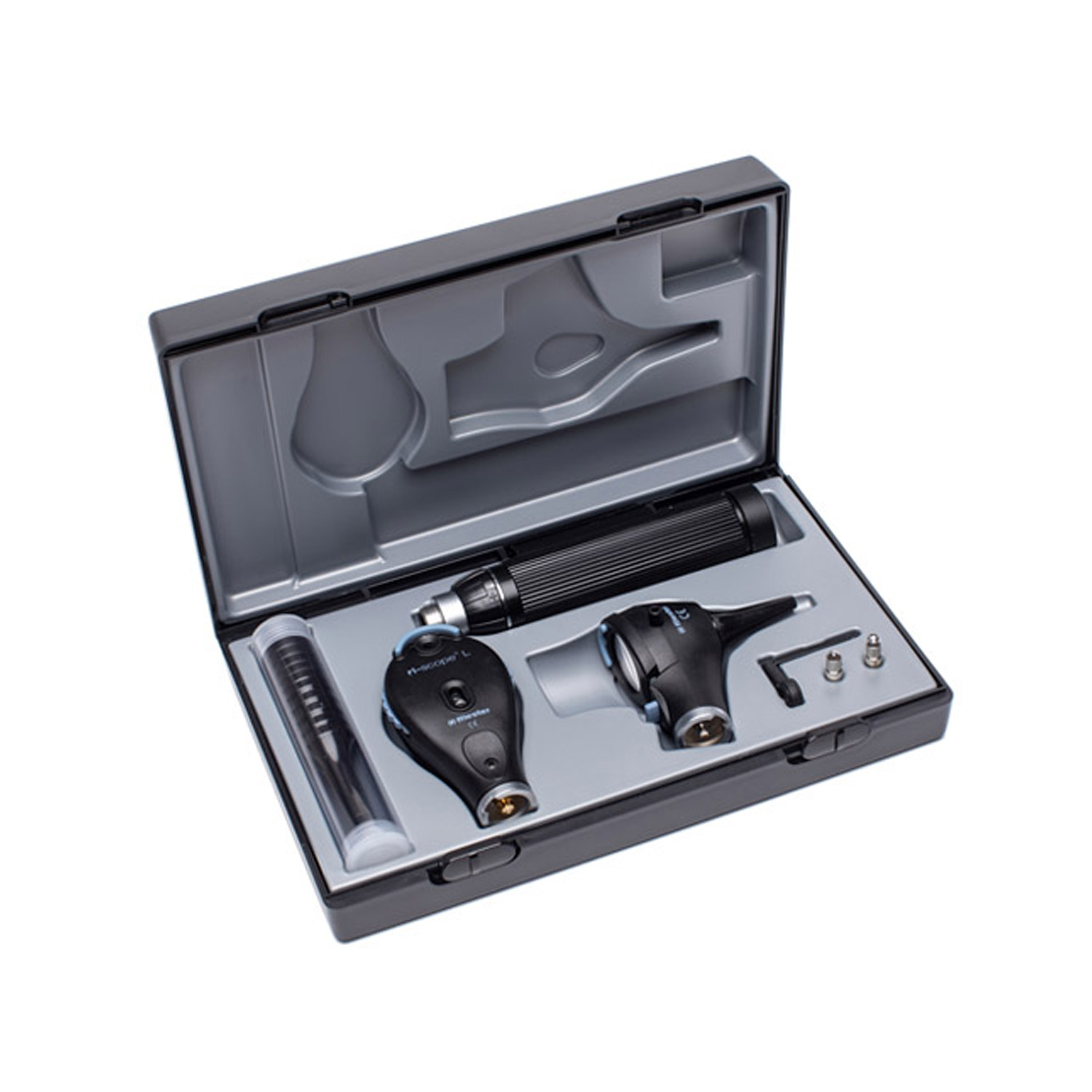

ri-scope L2 Diagnostic Set
Riester · 3746013
Article No. AK-ENT-093
The ri-scope L2 Diagnostic Set is designed for professional use in clinical practice and combines a premium ophthalmoscope and otoscope in one compact diagnostic system. It features high-performance optics with an aspherical condenser lens and a parallel beam path, enabling precise and reliable examination of both the eye and external auditory canal. The dustproof construction ensures long-term durability and hygienic safety in daily clinical practice. The integrated ophthalmoscope provides 29 dioptre correction lenses and a flexible aperture and filter system with red-free, blue, and polarisation filters. Each filter can be selected individually, supporting accurate assessment of retinal diseases, optic nerve damage, glaucoma, and vascular changes. This enhances diagnostic precision and supports evidence-based clinical decision-making. The otoscope offers 3x magnification via a swivelling glass optic and features an integrated fibre-optic LED illumination system (2.5 V). The high light output ensures clear visualisation with minimal heat generation and a service life of up to 100,000 hours. It is compatible with reusable and disposable ear specula and supports pneumatic otoscopy,
Specifications
- Brand
- Riester
- Model
- 3746013
- Product type
- Otoscopes
- Average LED lifespan
- up to 100,000 hours
- Plus
- 1–10, 12, 15, 20, 40
- Minus
- 1–10, 15, 20, 25, 30, 35
- Ambient temperature
- 0 °C to 40 °C
- Relative humidity
- 30% to 70% (non-condensing)
- Air pressure
- 800 hPa – 1100 hPa
- Temperature
- -10 °C to 55 °C
- Ophthalmoscope
- LED 2.5 V, 300 mA, average lifespan approx. 100,000 hours
- Otoscope
- LED 2.5 V, 300 mA, average lifespan approx. 100,000 hours
- Optics
- Aspherical condenser lens (ophthalmoscope), 3x magnification (otoscope)
- Aperture wheel (ophthalmoscope)
- opening, slit, fixation star, semicircle, small/medium/large circles
- Filter wheel (ophthalmoscope)
- red-free filter, blue filter, polarisation filter, symbol display
- Brightness control
- Rheotronic®
- Bayonet lock
- Tool-free change of instrument heads
