Imaging & Radiology

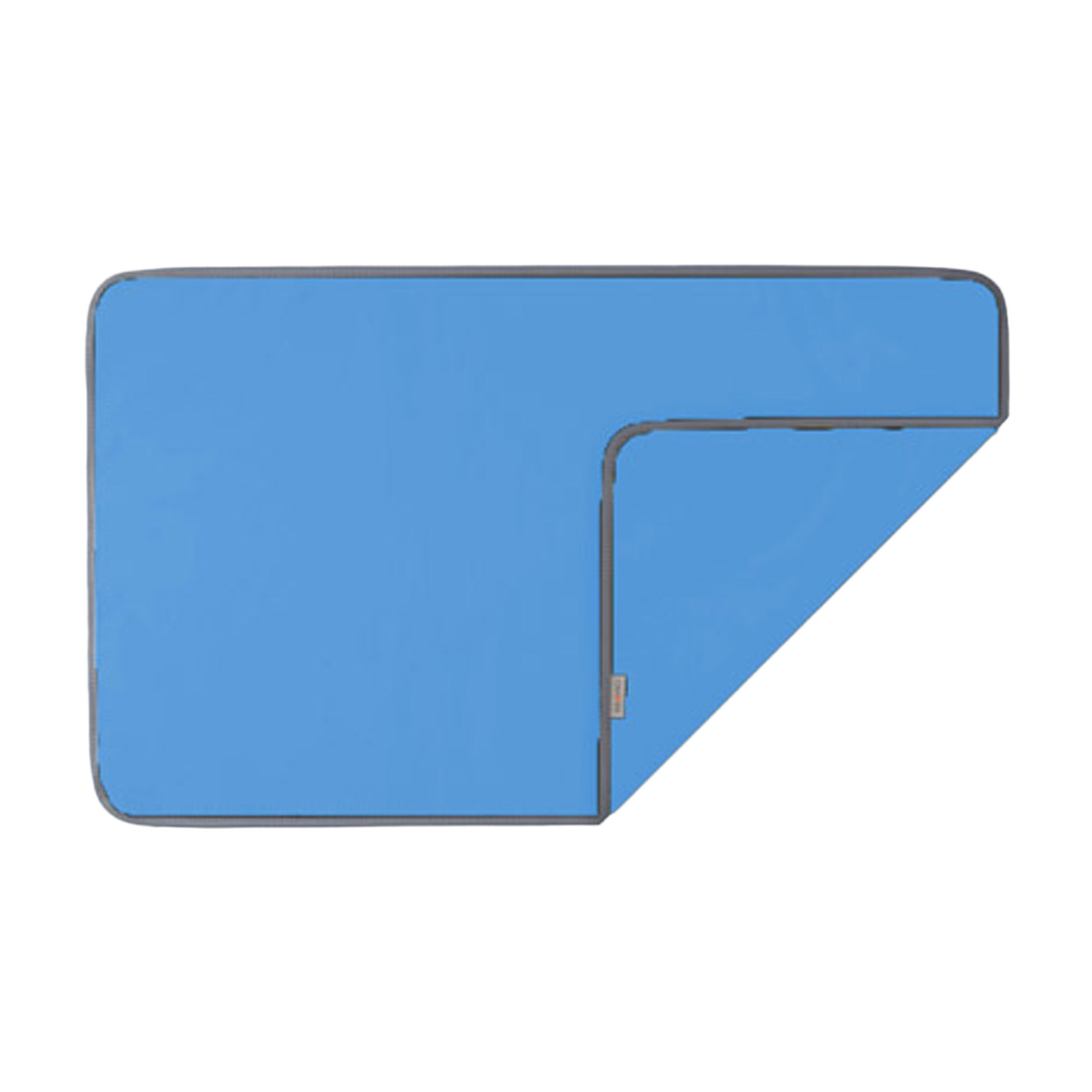

RP689 Patient Drape
MAVIG · RP68919050 +22 +42
Article No. AK-IR-087
The RP689 Patient Drape is a versatile solution for targeted radiation protection in radiological applications. Its flexible design allows for a free choice of format, enabling precise adaptation to different anatomical areas or combined protective positioning as needed. The integrated standard lead shielding material ensures reliable attenuation of radiation, while the ComforTex® HPMF Duplex outer material is PFC-free, Oeko-Tex® 100 certified, and designed for high hygiene and easy cleaning in clinical environments. Thanks to its customisable cut and optional hook-and-loop fastening, the drape can be quickly adjusted for efficient handling in daily workflows. The soft, flexible material improves patient comfort and simplifies positioning during examinations. An integrated RFID chip supports efficient tracking and documentation of protective equipment. The RP689 complies with EU Regulation 2016/425 (PPE), EU 2017/745 (Medical Devices), and IEC/DIN EN 61331 standards, ensuring certified safety and reliable performance in radiology practice.
Specifications
- Brand
- MAVIG
- Model
- RP68919050 +22 +42
- Product type
- X Ray Equipment
- Inner material
- Standard lead (suitable for patient protection)
- Outer material
- ComforTex® HPMF Duplex (PFC-free, Oeko-Tex® 100 certified)
- Lead equivalence
- optionally 0.50 mm Pb
- Area weight at 0.50 mm Pb
- 6.80 kg/m²
- Additional features
- Optional hook-and-loop straps available
- Cleaning
- Easy to clean, material meets high hygiene standards
- Colour
- curacao
- Features
- Integrated RFID chip in the label
- Personal protective equipment
- Regulation (EU) 2016/425
- Medical device
- Regulation (EU) 2017/745
- Radiation protection
- IEC 61331-1:2014 / DIN EN 61331-1:2016
- Surgical textiles requirement
- Based on DIN EN 13795-1:2019
- Scope of delivery
- 1 patient drape in selected size
