Cardiology

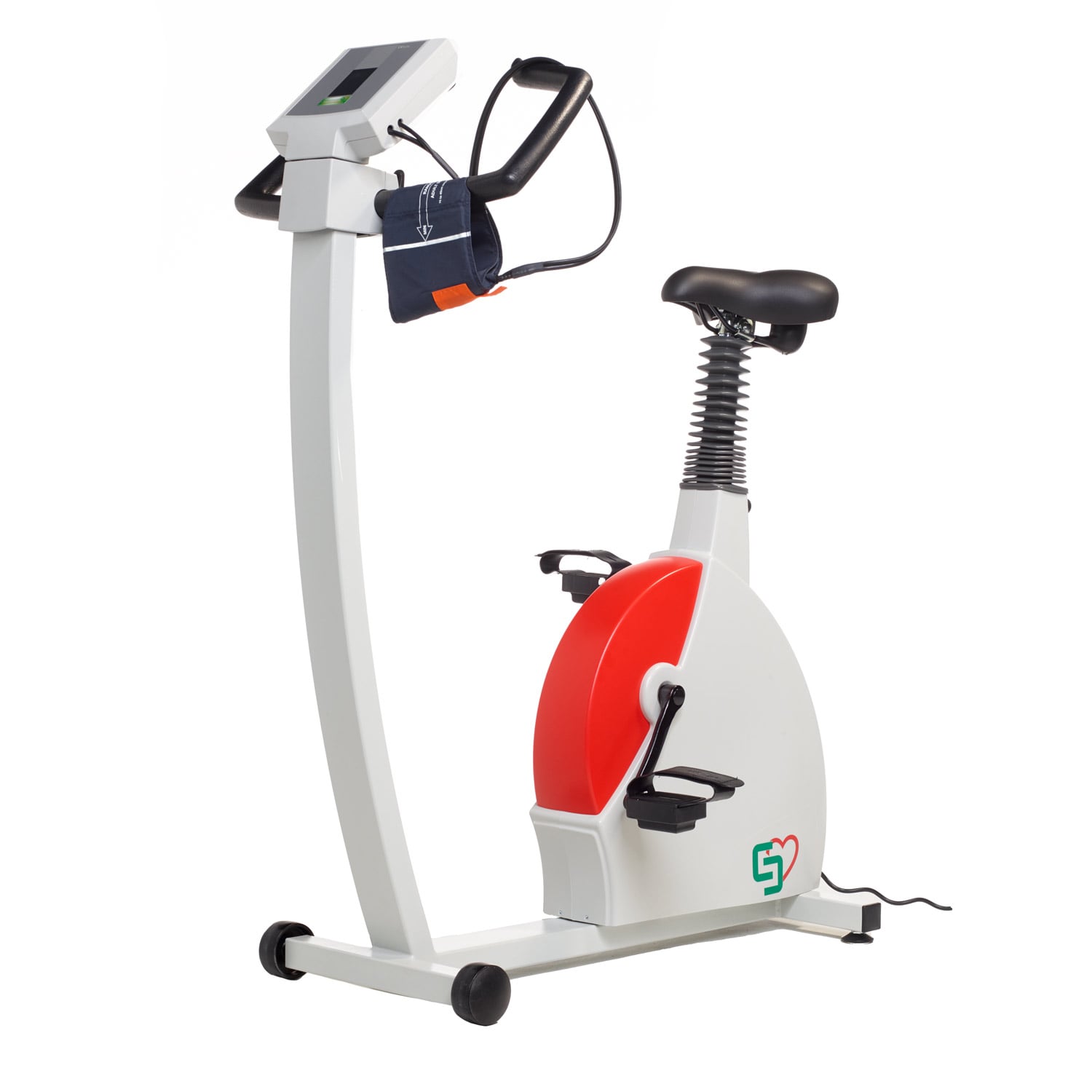

SmartBike Bicycle Ergometer
Dr. Gerhard Schmidt · 540.120.320
Article No. AK-CAR-417
The SmartBike Bicycle Ergometer from Dr. Gerhardt Schmidt is a trusted solution for cardiopulmonary diagnostics and stress testing in clinical settings. Its robust steel and aluminum frame supports users up to 150 kg, ensuring high stability even under intense loads. The belt-driven system provides near-silent operation, allowing smooth examinations without distractions. Load control is easily managed via PC connection using RS-232 or Bluetooth, enabling precise and reproducible exercise protocols. Optional integrated SpO₂ and blood pressure monitoring ensures reliable measurements even under high workload conditions. The barrier-free frame with a wide step-through design allows safe and patient-friendly use, ideal for elderly or mobility-impaired patients. The ergonomic, easy-to-clean housing supports hygiene standards and smooth integration into modern clinical environments. Measurement options: SpO₂ measurement, blood pressure measurement (optional, valid even under high load) Dimensions (L x W x H): approx. 120 x 60 x 130 cm The SmartBike Bicycle Ergometer provides an effective, safe, and patient-friendly solution for stress testing, diagnostics, and rehabilitation in clinical
Specifications
- Brand
- Dr. Gerhard Schmidt
- Model
- 540.120.320
- Product type
- Ecg Monitors
- SmartBike Bicycle Ergometer
- Clinical Cardio & Stress Testing for Modern Clinics
- Construction
- Steel tube and aluminum frame
- Maximum load capacity
- 150 kg body weight
- Maximum load
- Standard 400 W, optionally expandable up to 999 W
- Drive
- Belt-driven, nearly silent for patient comfort
- Control
- PC-based, interfaces RS-232 and Bluetooth (optional)
- Entry
- Barrier-free, extra-wide step-through for easy access
- Housing
- Easy-care, dirt-resistant, white/red finish
- Weight
- approx. 50 kg
- Certifications
- Medical device according to MDR, CE compliant
- Scope of delivery
- Ergometer, user manual, basic cable set for PC connection
