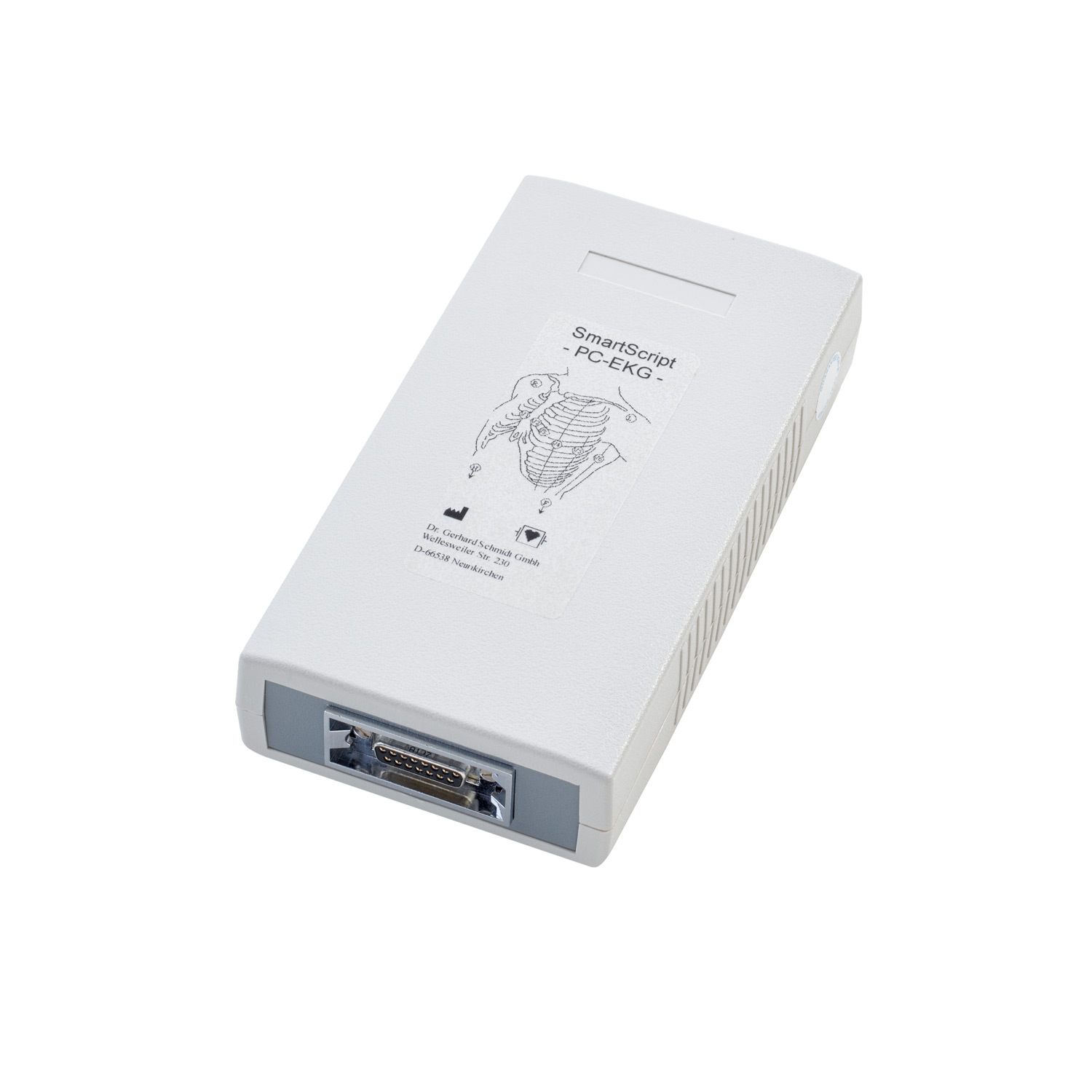

SmartScript PC-ECG System
Dr. Gerhard Schmidt · 141597
Article No. AK-CAR-424
The expandable SmartScript PC ECG system from Dr. Gerhard Schmidt can be easily expanded from a 12-lead resting ECG to an ergo-spirometry system with the help of the appropriate modules. The recorded patient and ECG data are archived in an SQL-capable client/server database and can be accessed and subsequently edited from any workstation to which the ECG system is connected. Thanks to the GDT and HL7 interface, it is possible to integrate data securely and quickly into the existing practice EDP. If required, the CE-marked software can be freely combined with other Dr. Gerhard Schmidt products such as the Smartholder24 or SmartScan24. The SmartScript PC ECG system is available in three different complete packages, with either a USB cable or with Bluetooth. CE-marked software can be freely combined with other products (e.g.: Smartholder24 or SmartScan24) Ordering InformationBasicBasic PlusPremiumDelivery ContentsSmartScrip ECG ModuleConnection cable SmartScript ECG moduleResting ECG softwareSmartSoft Software (USB stick)10-wire patient cableSmartScript ECG moduleConnection cable SmartScript ECG moduleOperating instructionsSmartSoft SoftwareECG interpretation software10-wire patient c
Specifications
- Brand
- Dr. Gerhard Schmidt
- Model
- 141597
- Product type
- Ecg Monitors
- Recording duration resting ECG
- 10 seconds
- Options
- Rhythm ECG, electronic measurement, automatic interpretation
- Recording speed
- 5, 10, 25, 50 mm/s
- Sensitivity
- 5, 10, 20 mm/mV
- Filter
- 35 Hz, low-pass filter, anti-drift
- Sampling rate
- 600 Hz
- Resolution
- 12 bit
- Input impedance
- > 20 MOhm
- Common mode rejection
- > 105 dB
- Classification
- IIa
- Power consumption
- < 2 Watt (BSC: 0.5 Watt)
- Weight
- approx. 350 g
- Power supply
- via PC (USB); via battery (Bluetooth)
- Operating system
- Windows 7/8/8.1/10 (32 or 64 bit)
