SONY HVO-500MD HD Medical Recorder

Sony Corporation · HVO-500MD

Article No. AK-IR-093

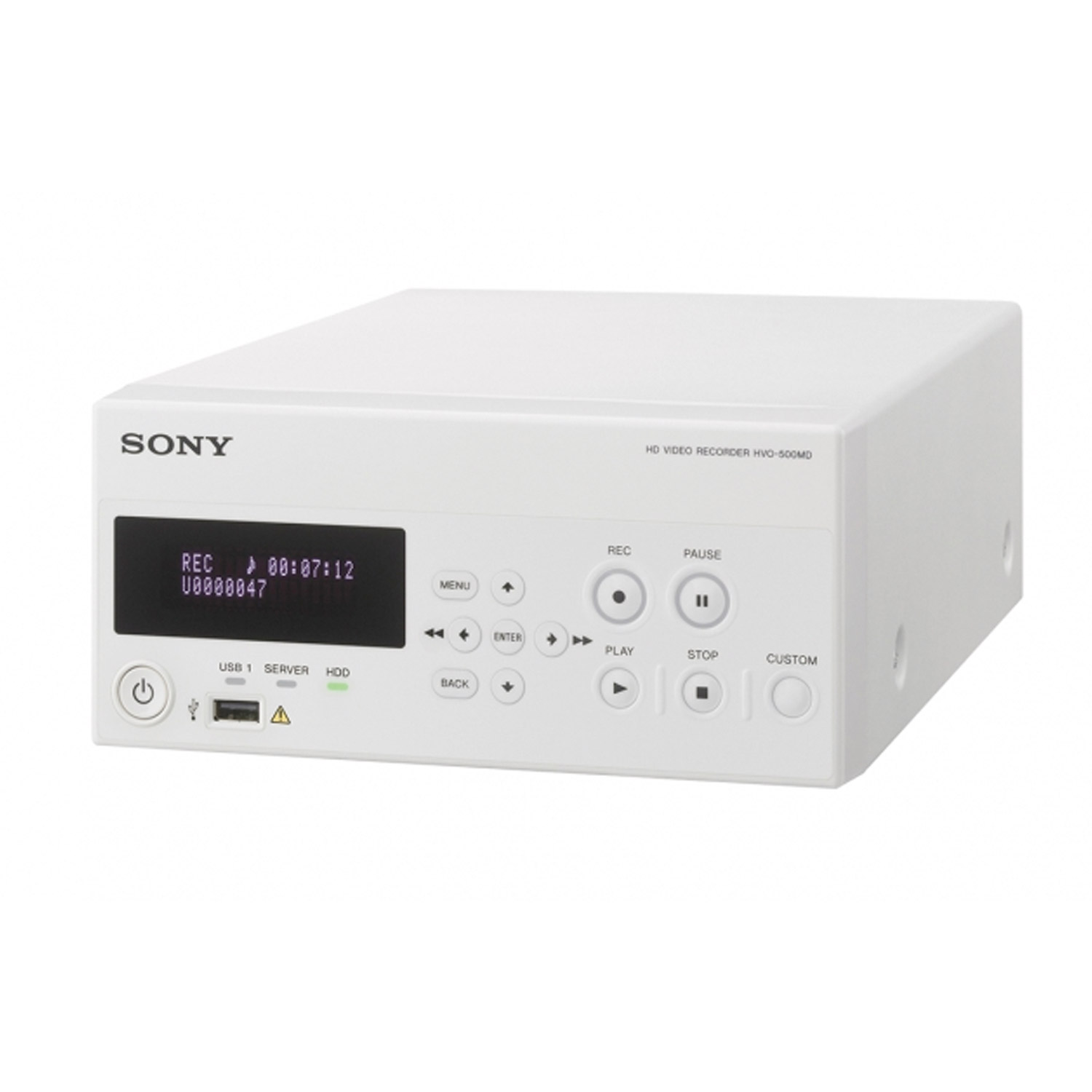

With the HVO-500MD video recorder from Sony, you can store video from diagnostic and surgical imaging systems such as ultrasound machines, digital X-ray systems, and endoscopic and laparoscopic cameras. Simultaneous HD video recording on internal and external media, as well as on network systems, eliminates the need to export videos to another device after recording. In addition, this function minimizes the risk of data loss. With a wide range of interfaces, the Sony video recorder is compatible with many systems, making it versatile. Due to the long recording time, recordings with a duration of 60 - 194 hours can be made in high-resolution quality. A single recording is limited to a duration of 24 hours. After recording, videos can be exported in AVCHD or MP4 formats. Backup to internal hard disk as well as to external USB drive or network server Resolution1.280 × 720/59.94 p, 1.280 x 720/50 p, 720 × 480/59.94 i, 720 x 576/50 i InputHDMI (Type A)(1), DVI-D (DVI, 19-pole)(1), S-VIDEO (Mini-DIN, 4-pole)(1), VIDEO (BNC)(1)AUDIO (stereo jack)(1)DC-IN (DIN, Other InterfacesUSB connection (type A)(3), USB (type B)(1), Network (RJ-45, 1000 Base-T/100 Base-TX)(1) REMOTE RS-232C (D-Sub 9-p
