Imaging & Radiology

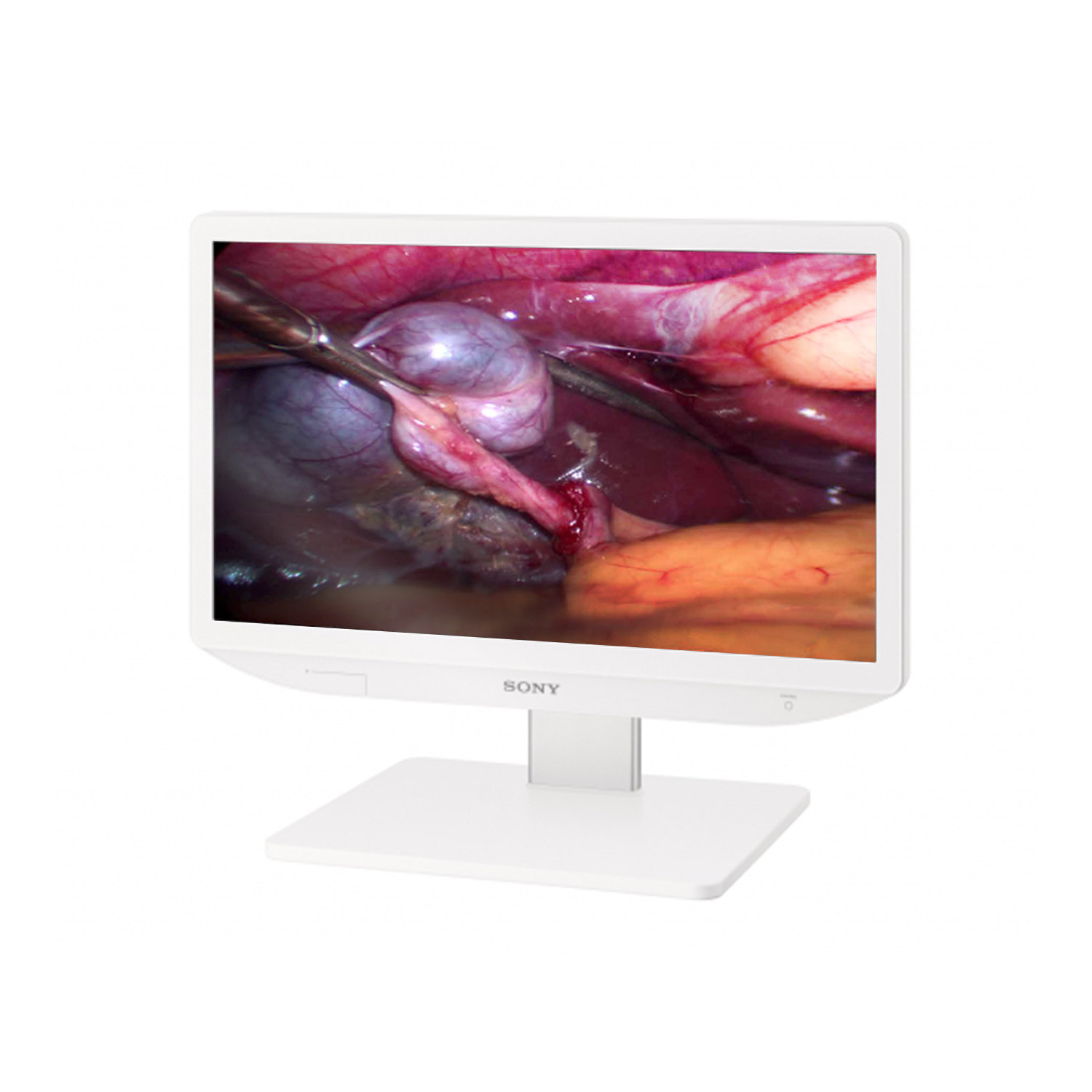

Sony Full HD LCD Medical Monitor

Sony Corporation · LMD-2435MD

Article No. AK-IR-095

This LCD monitor is ideal for displaying clear and high resolution Full HD images in operating theatres, surgical centres, clinics and consulting rooms. The 24" LMD-2435MD shows you 2D video and still images from medical imaging systems, such as endoscopes and laparoscopic cameras. The monitor is designed to be integrated in modern environments, e.g. operating rooms. It can be mounted either on the ceiling or on a medical trolley. Analog and digital interfaces simplify connection with a wide range of HD and Standard Definition imaging sources. Operation is simplified by the monitor's intuitive, easy to use control panel. Coloured LED backlighting highlights active control buttons, guiding the user and reducing the risk of inadvertent operation, especially in dark environments. Y/C InputMini-DIN 4-pin (x1)Y: 1.0 Vp-p (75 Ω)C: 0.286 Vp-p (75 Ω, NTSC burst)0.3 Vp-p (75 Ω, PAL burst) RGB, Component InputRGB: Via HD-15 connector (D-sub 15-pin)*0.7 Vp-p (75 Ω) (when Sync On Green, 0.3 Vp-p sync)* Needs SMF-405 sold separatelyComponent: Via HD-15 connector (D-sub 15-pin)*Y: 1.0 Vp-p (75 Ω) (including 0.3 Vp-p sync)Pb: 0.7 Vp-p (75 Ω), Pr: 0.7 Vp-p (75 Ω)* Needs SMF-405 sold separately HD1
