SONYA4 Analogue and Digital Printer for Black and White Thermal Paper

Sony Corporation · UP-971AD

Article No. AK-IR-116

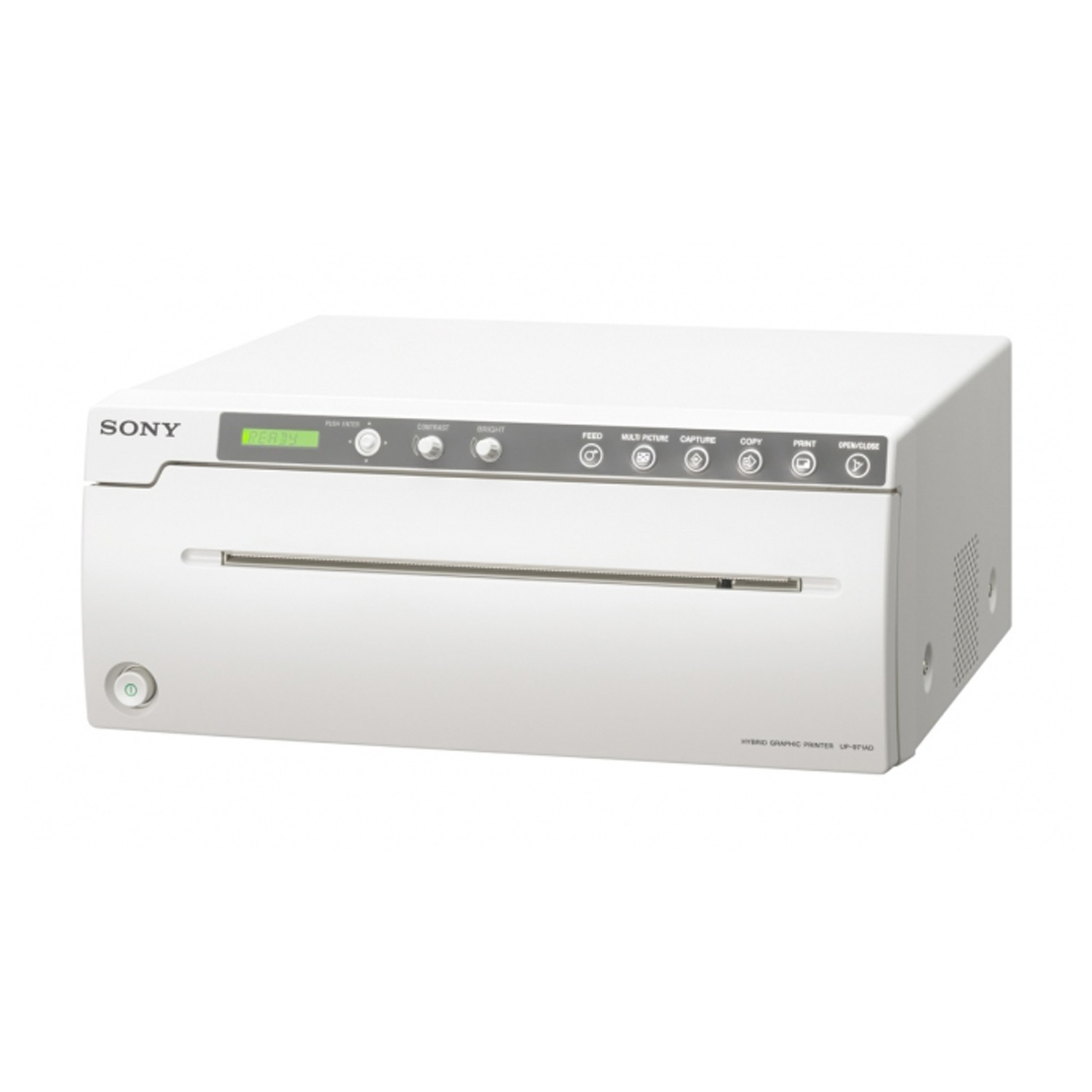

The SONY A4 analogue and digital printer for black and white thermal paper is a compact black and white printer designed for use with analogue and digital radiology imaging systems such as mobile C-arms, ultrasound machines, cardiac catheterization labs and other compatible medical imaging systems. The various printing methods and settings can be conveniently selected and adjusted via the control panel on the front. User-friendliness is rounded off by the enlarged LCD display panel and a joystick for intuitive menu navigation. In addition, the optimum settings for printing can be selected in advance from nine images in a comparison collage, or printouts up to 600 mm long can be output with the panorama print function. Optionally, it is possible to switch between single-frame and multi-frame mode (with analogue video signal). The high-quality printouts of the images captured by the imaging system can be used as reference printouts for the patient's file or for referrals and are output in a photo quality of approx. 325 dpi. Dimensions: approx. 316 x 132.5 x 265 mm (W x H x D) Image memory: 2816 x 7680 x 8 bit (digital); 6 images (720 x 608 x 8 bit per image) (video) Image elements: 7
