Functional Diagnostics
SpiroSonic FLO
Uscom · SpiroSonic Flo
Article No. AK-FD-560

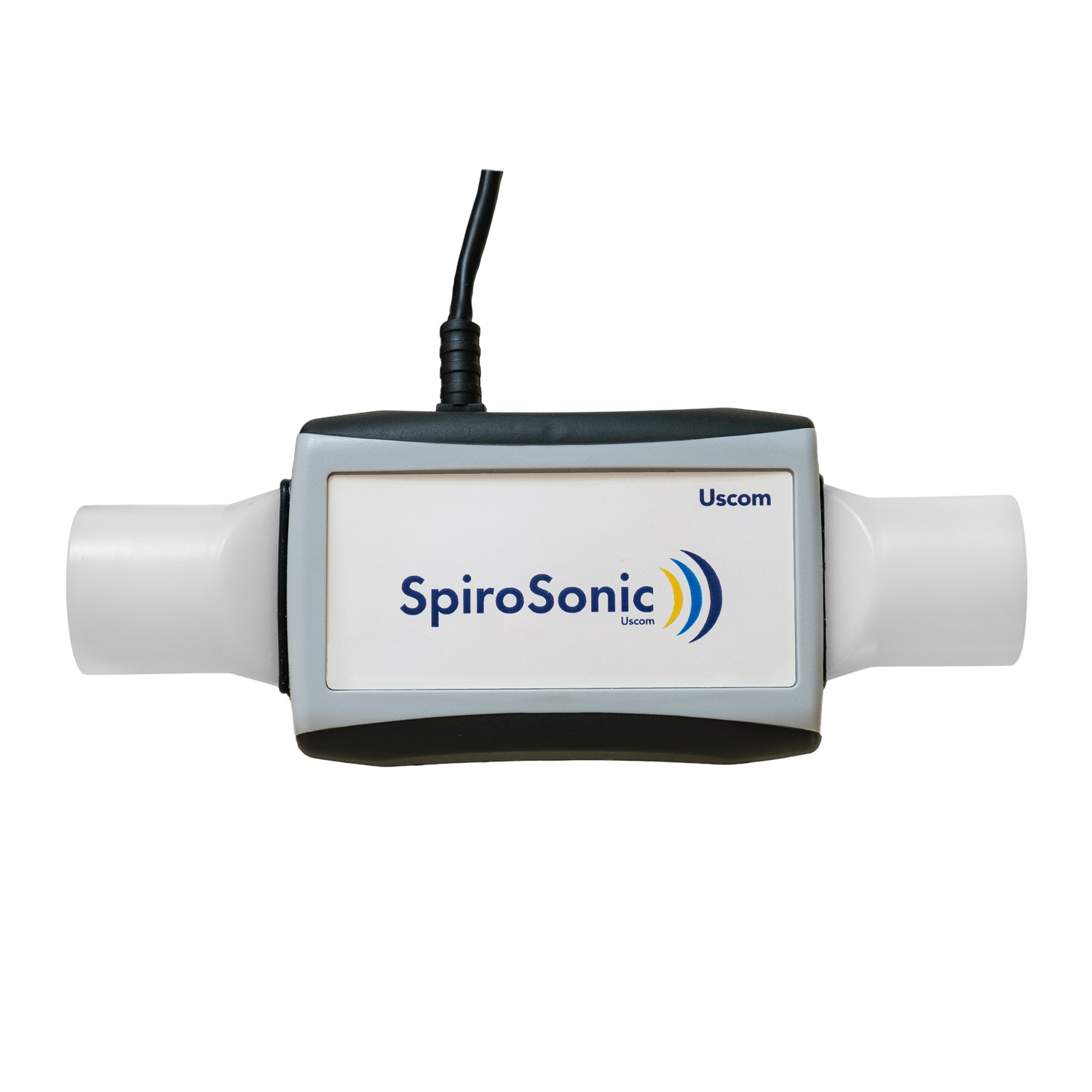

SpiroSonic FLO is a high-resolution, digital ultrasonic spirometer based on innovative PureFlow technology. It measures lung function precisely and reliably using half-duplex, digital ultrasound flow measurement without moving parts. This design enables easy and thorough disinfection, minimising the risk of nosocomial infections and significantly enhancing patient safety. The absence of moving mechanical components also contributes to the device's durability and reduces maintenance requirements. Seamless integration with the PC-based SpiroReporter software allows comprehensive analysis, archiving, and documentation of spirometry data. Thanks to automatic calibration before each measurement, the time required for external adjustments is eliminated, significantly optimising workflow in the practice. The extremely low flow resistance is particularly advantageous for diagnostics in children, elderly, or weakened patients. SpiroSonic FLO enables modern, evidence-based lung function diagnostics, enhancing and streamlining existing routines. Additionally, the device's compact and lightweight design facilitates easy handling and portability within clinical settings. Device dimensions: 28 ×
Specifications
- Brand
- Uscom
- Model
- SpiroSonic Flo
- Product type
- Spirometers
- Measurement principle
- PureFlow digital ultrasound multi-path flow measurement (half-duplex, single-path)
- Flow measurement range
- ± 14 L/s
- Maximum volume
- ± 20 L
- Volume measurement accuracy
- ± 2.5% or 50 ml, whichever is greater
- Flow measurement accuracy
- ± 2.5% or 50 ml/s, whichever is greater
- Sampling rate
- 100 Hz
- Expiratory resistance at 14 L/s
- < 0.15 kPa/L/s
- Connection
- USB 2.0 Type A
- Flow tube dimensions
- Diameter 30 mm, length 165 mm
- Device weight
- 122 g
- Protection rating
- IP32
- Electrical protection class
- BF (patient-applied part protection)
- Operating temperature
- 10 – 40 °C
- Relative humidity
- 5 – 95% non-condensing
- Conformity
- CE marking in accordance with EU Medical Device Directive
