Cardiology

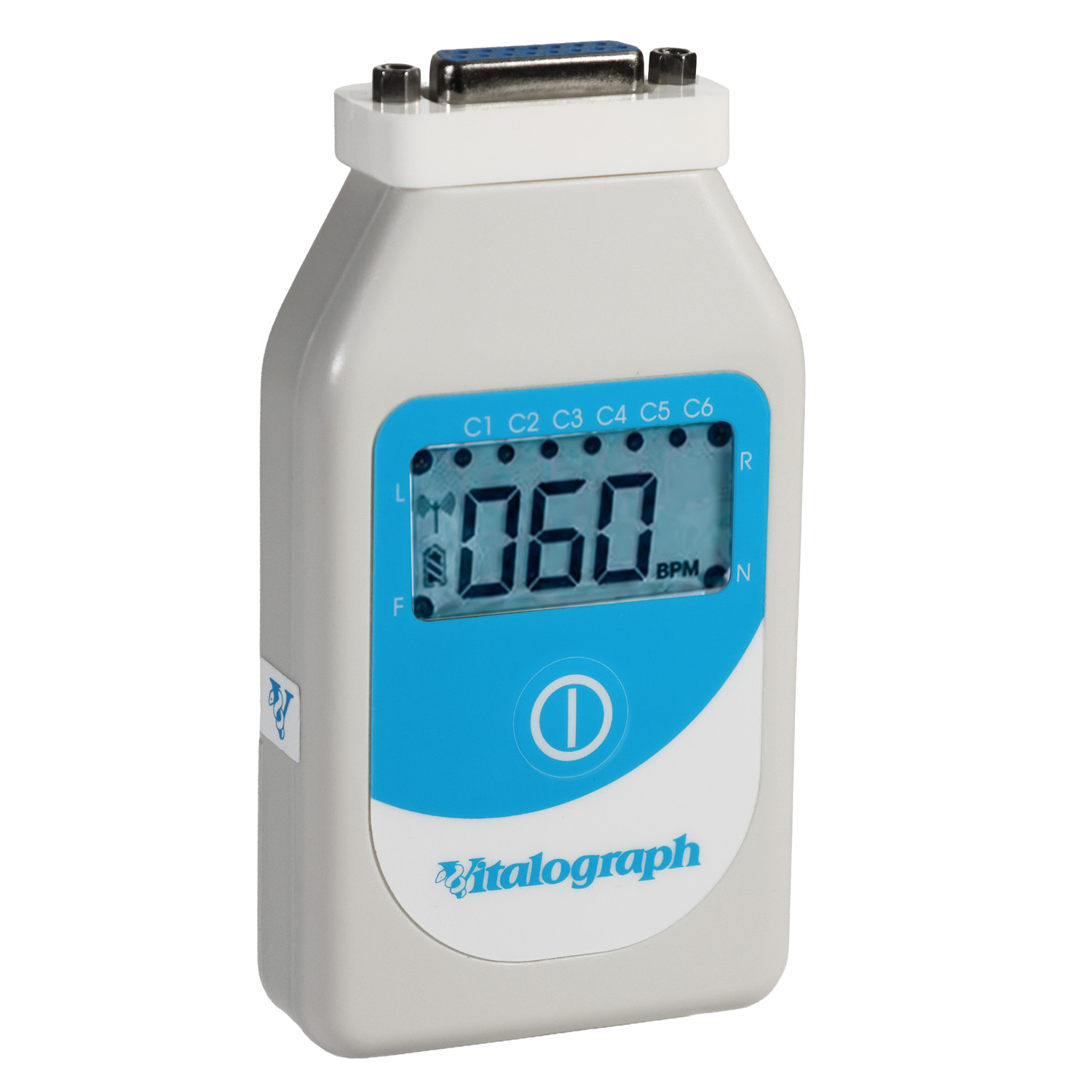

Vitalograph® BT12™
Vitalograph · 41300
Article No. AK-CAR-485
Vitalograph® BT12™ is a wireless 12-lead resting ECG system designed for efficient use in clinical and outpatient practice. Its Bluetooth connectivity and compact design enable fast, low-artifact ECG acquisition in both mobile and stationary settings. The device features automatic electrode check, improving signal reliability and patient safety. ECG data is transmitted in real time for immediate analysis, while the integrated Glasgow algorithm provides evidence-based interpretation of cardiac findings, including ischaemia, infarction, arrhythmias, ST/T changes and conduction disorders. Seamless integration via the GDT interface enables automatic transfer of patient and measurement data into practice software, reducing manual effort and potential errors. This supports efficient clinical workflows and reliable data management. The BT12™ can optionally be combined with Vitalograph spirometry systems, enabling a single software platform for cardiopulmonary diagnostics. Additional features include filter functions, pacemaker detection and intuitive operation with visual and acoustic guidance. With a 5-year manufacturer warranty (upon registration) and multi-workstation licensing options
Specifications
- Brand
- Vitalograph
- Model
- 41300
- Product type
- Ecg Monitors
- Application
- Resting ECG, stationary and mobile
- Measurement method
- Glasgow algorithm for automatic interpretation
- Data transmission
- Bluetooth 2.1 (range approx. 10 m)
- Electrodes
- Standard electrodes with snap button
- Electrode check
- Automatic detection of faulty leads
- Heart rate calculation
- Acoustic and visual signal
- Recording
- 10-second test option, real-time analysis
- Digital resolution
- 2.6 μV
- A/D converter
- 24-bit (15 bits transmitted)
- Sampling rate
- 500 Hz
- Dimensions
- 61 x 106 x 23 mm (W x H x D)
- Weight
- 210 g (incl. batteries)
- Network capability
- Licence for up to 5 measurement workstations (with software version)
- Warranty
- 5 years (with registration within 30 days)
