Ultrasound Diagnostics
VitaScan PD
VITACON · 136298
Article No. AK-UD-284

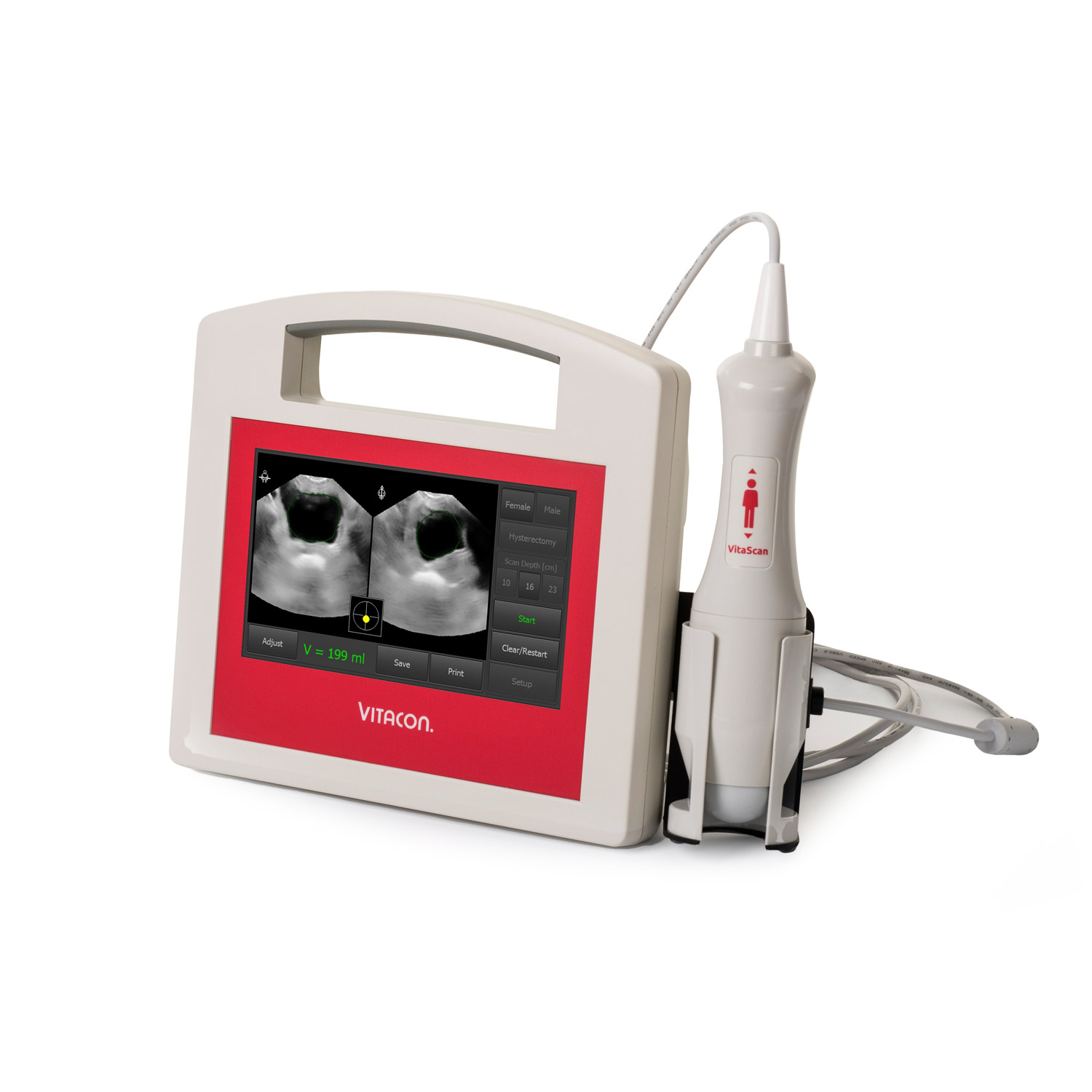

The VitaScan PD urinary bladder scanner is a B-mode ultrasound machine with which the volume of the urinary bladder can be quickly and precisely measured down to the millimeter. This portable device is battery powered, has an integrated thermal printer and is easy to operate via the intuitive software and touchscreen display. You will receive the VitaScan PD urinary bladder scanner in your choice of a stand alone device or with a practical, height-adjustable mobile chassis. Mechanical sectoral scan converter delivers cross-sectional images of the bladder of up to 24 scan levels Also allows for calculation of time needed to empty the bladder and recognises remaining volume Storage of ultrasound images on an external storage device is possible (USB 2.0)
Specifications
- Brand
- VITACON
- Model
- 136298
- Product type
- Ultrasound Machines
- Scan depth
- 10 cm (children), 16 cm (adults), 23cm (obese patients)
- Volume range
- 0-1,000 ml
- Accuracy
- ±10%
- Frequency
- 2.35 MHz
- Scan method
- sectoral, 180 degrees
- Rotational positions
- 6, 12 or 24
- Pan angle
- 110 degrees
- Recognition depth
- 10, 16 or 23 cm
- Dimensions
- 22.2 x 20.5 x 8.0 cm
- Weight
- approx. 2.4 kg
