Ultrasound Diagnostics
VitaScan v.2 Bladder Scanner
VITACON · 136252
Article No. AK-UD-285

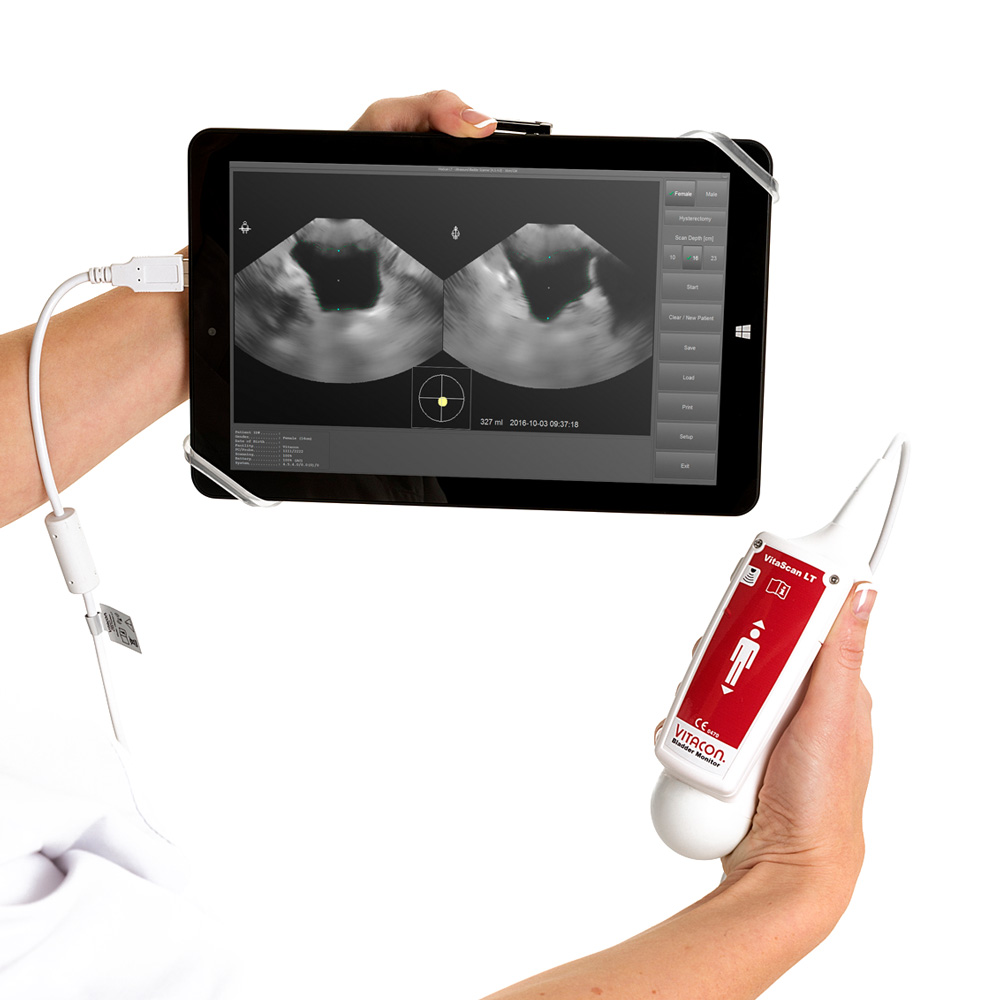

The VitaScan v.2 bladder scanner is used for non-invasive measurement of the bladder volume in real time. The VitaScan v.2 calculates the bladder volume in millilitres based on the up to 24 levels of bladder cross sections. The bladder scanner can be used in many clinical settings, e.g., in order to determine the time of bladder voiding or to determine the residual urine after the bladder has been emptied. Sonic head delivers cross sections of the bladder in up to 24 scan levels Optionally available as single VitaScan LT ultrasound transducer or as complete system incl. tablet PC Settable penetration depth: 100 mm (children), 160 mm (adults), 230 mm (obese patients) Microsoft Surface Pro Tablet with 10.1" IPS LCD Multi-touch display, Quad-Core Intel Atom (Z3735F - 1.83 GHz), 2 GB DDR3 RAM, 32 GB Solid State Drive, Win 10 (English), pre-installed VitaScan LT software, Micro-USB charger, 2 year limited warranty
Specifications
- Brand
- VITACON
- Model
- 136252
- Product type
- Ultrasound Machines
- Product Details
- VitaScan Bladder Scanner
- Technical Data
- VitaScan Bladder Scanner
- Volume range
- 0-1,000 ml
- Accuracy
- ± 10% of measured results, ± 20 ml
- Frequency
- 2.35 MHz
- Rotation positions
- 6, 12 or 24
- Tilt angle
- 110 degrees
- Dimensions
- 14 x 4.5 x 6.6 cm (L x W x H)
- Weight incl. cable
- 0.38 kg
- CPU
- Intel Cedarview Processor N2600
- Monitor resolution
- < 800 x 600
- Available hard drive space
- 4 GB
