Ultrasound Diagnostics

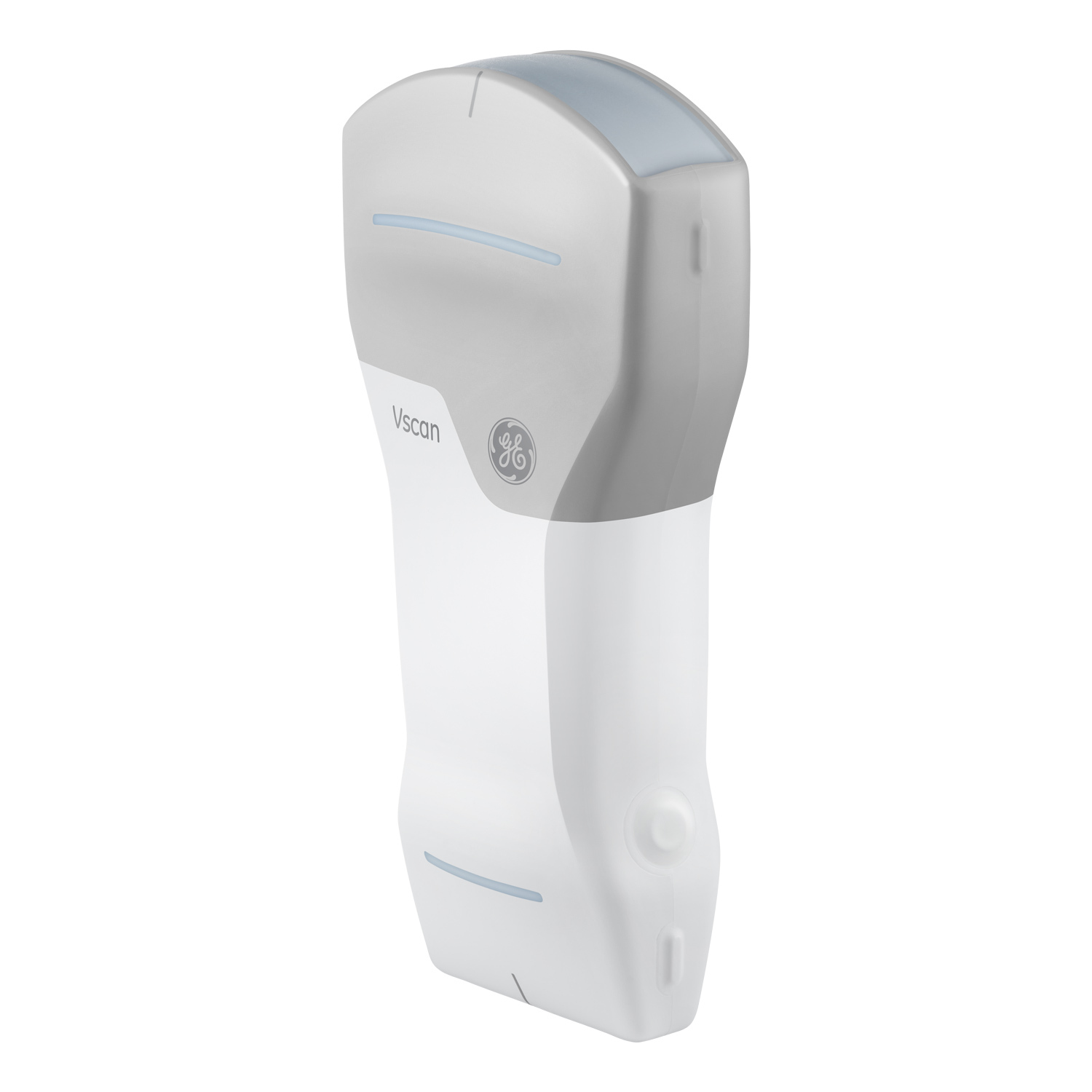

Vscan Air™ CL Ultrasound System

GE Healthcare · 141235

Article No. AK-UD-288

The new Vscan Air from GE Medical Systems is a diagnostic ultrasound system specially designed for mobile use. Thanks to the innovative dual probe technology, both superficial and deeper structures can be imaged with the device without having to change probes. On one side there is a linear probe with a maximum penetration depth of 8 cm and on the other side a convex probe with a maximum penetration depth of 24 cm. This bandwidth allows the Vscan Air to be used for all classic applications from abdominal sonography to thyroid sonography and gynaecological sonography. Use in paediatrics is also possible without any problems. The Vscan Air can be paired with an Android or iOS device via Bluetooth. The images can be displayed in real time in the free Vscan Air app, and later also saved and forwarded to specialist colleagues. The Vscan Air impresses with its exceptional image quality and console-quality signal processing. Convex probe: frequency 2 - 5 MHz, maximum depth: 24 cm (64 x 16 mm lens) Linear probe: frequency 3 - 12 MHz, maximum depth: 8 cm (40 x 7 mm lens) Size: 64 x 131 x 31 mm (W x H x D), weight: approx. 205 g Vscan Air Ultrasound System, Protective Case, Quick Start Guide,
