12-Channel ECG DIXION ECG-1012

Cardiology

12-Channel ECG DIXION ECG-1012

DIXION

Article No. AK-CAR-001

Product details

Article number
AK-CAR-001
Category
Cardiology
Brand
DIXION

Description

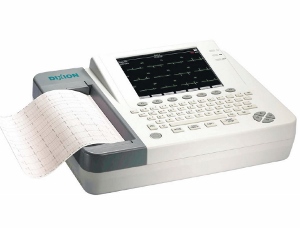

Lightweight and portable digital 12-channel ECG machine. Large graphic LCD with backlight. Internal ECG data storage (800 ECG records). Automatic ECG data interpretation. Built-in rechargeable lithium battery. Built-in high resolution thermal recorder to print on normal thermal paper 210mm or 215mm and A4 size fax paper (support external USB printer). USB interface for patient record transmission. Data transmitting to PC via LAN/ internal Wi-Fi. Sleep/Wake-up mode. Various report formats.

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Lead
12 Standard leads
Input Circuit
Floating input circuit, protection from defibrillation and pace-maker
Acquisition mode
12 leads simultaneously
Frequency Range
0.01Hz – 300 Hz
Input Impedance
≥50MΩ (10Hz)
Input Circuit Current
≤10nA
Noise level
<12.5μVp-p
Anti Baseline Drift
Automatic
Filter
EMG-Filter; 25Hz /35Hz /45Hz / Off / DFT-Filter 0,05/0,15/0,25/0,5Hz / Lowpass filter 150Hz/100Hz/75Hz / AC-Filter On/Off
CMRR
>140 dB (AC on), >123 dB (AC off)
Recording Mode
Auto/Manual
Safety Standards
IEC 60601-1:2005 EN 60601-1:2006 EN 60601-1-2:2007 IEC 60601-1-2:2007 IEC/EN60601-2-25
Power supply
110-240 V, 50-60 Hz Built-in rechargeable Li-ion battery:voltage 14.8V (should be able to print at least 300 ECG records)
Dimension
420x 330x 105 mm
Display
320 x 240 pixels LCD-interface
Time constant
≥3,2 s
Communication Interface
Ethernet, USB
Lead for rhythm test
1 or 3 leads-Option
Weight
≤5 kg
