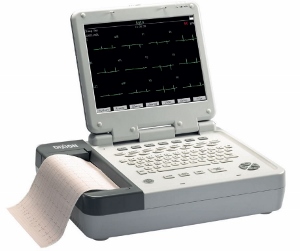

12-Channel ECG DIXION ECG-1012 Expert
DIXION
Article No. AK-CAR-007Product details
- Article number
- AK-CAR-007
- Category
- Cardiology
- Brand
- DIXION
Description
Modern easy-to-use expert class ECG machine with notebook design. Designed for both in-hospital and mobile use. 12.1″ high-resolution color touchscreen foldable display. Provisional diagnosis output. Automatic data interpretation.
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Lead
- 12 Standard leads
- Input Circuit
- Floating input circuit, protection from defibrillation and pace-maker
- Acquisition mode
- 12 leads simultaneously
- Frequency Response
- 0,05 – 150 Hz
- Input Impedance
- >50MΩ
- Input Circuit Current
- 10 nA
- Noise level
- <15μVp-p
- Anti Baseline Drift
- Automatic
- Filter
- EMG-Filter; 25Hz /35Hz /45Hz /Off / DFT-Filter 0,05/0,15/0,25/0,5Hz / Lowpass filter 150Hz/100Hz/75Hz / AC-Filter 50Hz/60Hz
- CMRR
- >140 dB
- Recording Mode
- Auto/Manual
- Safety Standards
- IEC 60601-1:2005, EN 60601-1:2006, EN 60601-1-2:2007 IEC 60601-1-2:2007, IEC/EN60601-2-25
- Power supply
- AC: 220 -230V, 50-60 Hz Built-in rechargeable Li-ion battery: voltage 14.4 V
- Record Paper
- 210mm x 30m, Z-Typ, in rolls
- Paper speed
- 5;6,25;10;12,5;25;50mm/c
- Dimension
- 420x 330x 105 mm
- Display
- 800 x 600 pixels LCD-interface
- Time constant
- >3,2 s
- Communication Interface
- Ethernet, USB, Wi-Fi
- Lead for rhythm test
- 1 or 3 lead-Option
- Weight
- 6.5 kg
