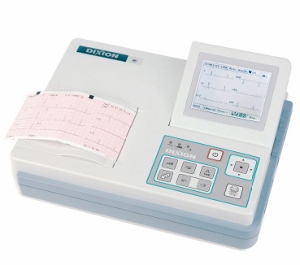

3-Channel ECG Dixion ECG-1003
Dixion
Article No. AK-CAR-002
Portable digital 3-channel ECG machine with modern design. Easy to use with a membrane keyboard. ECG data storage. Automatic ECG data interpretation. Built-in battery and automatic switch-over of power supply. Built-in thermal printer. Data transmission to PC.
Equipment standard by AKLION.
Specifications
- Lead
- 12 standard leads
- Input Circuit
- Floating input circuit, protection from defibrillation (optional:pace-maker detection)
- Time constant
- ≥3.2s
- Frequency Response
- 0.05Hz – 150 Hz
- Sensitivity
- 2.5, 5, 10, 20 (mm/mV), AGC
- Input Impedance
- ≥50MΩ (10Hz)
- Input Circuit Current
- ≤50 nA
- Noise Level
- ≤12.5 µVp-p
- Anti Baseline Drift
- Automatic
- Filter
- EMG-Filter: 25Hz/35Hz/45Hz/Off / DFT-Filter: 0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz / AC-Filter: On/Off / LOWPASS-filter:150Hz/100Hz/75Hz
- CMRR
- ≥110 dB/≥115 dB
- Recording Mode
- Auto/Manual
- Safety Standarts
- IEC 60601-1:2005 EN 60601-1:2006 EN 60601-1-2:2007 IEC 60601-1-2:2007 IEC/EN60601-2-25
- Power Supply
- AC: 100 V-115 V/220 V-240 V, 50/60 Hz Built-in rechargeable Li-ion battery: voltage 14.8 V (can work about 6.5 hours)
- Recorder
- Thermal printer / Dot structure: 384 dots/line / Dot pitch: 0.125 mm (8 dots/mm) / Dot size: 0.125mm x 0.12mm
- Printing density
- 8 dots per mm / 200 dots per inch (amplitude axes) 40 dots per mm / 1000 dots per inch (time axes, @ 25 mm/s)
- Record paper
- 80mm x 30m (rolled thermal paper) / 80mmx70mmx200pages (folded thermal paper)
- Paper speed
- 5; 6.25;10;12.5;25;50mm/s ± 3%
- Dimension
- 290x 220x85 mm±2mm
- Weight
- 2.5kg
- Display
- 320x240 pixels LCD-Interface
- External Input/Output
- Input: ≥ 100kΩ; Sensitivity 10mm/V ± 5% / Output: ≤ 100kΩ Sensitivity 1V/mV±5%
- Communication interface
- RS-232, Ethernet, USB
