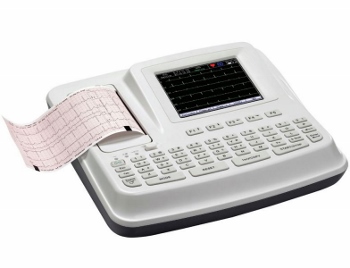

6-Channel ECG Dixion ECG-1006
Dixion
Article No. AK-CAR-004
AC/DFT-Filter 50 Hz/60Hz (-20 dB) CMRR >110dB Recording Mode Auto/Manual Safety Standarts IEC 60601-1:2005 EN 60601-1:2006 EN 60601-1-2:2007 IEC 60601-1-2:2007 IEC/EN60601-2-25 Power Supply AC: 100 V-115 V / 220 V-240 V, 50/60 Hz/ Li-ion battery: voltage 14.8 V More than 6.5 h Recorder Thermal printer.
Equipment standard by AKLION.
Specifications
- Leads
- 12 standard leads
- Input Circuit
- Floating input circuit, protection from defibrillation
- Time constant
- ≥3.2s
- Frequency Response
- 0.05Hs – 150 Hz
- Sensitivity
- 2.5; 5; 10; 20 (mm/mV), AGC
- Input Impedance
- ≥50MΩ
- Input Circuit Current
- ≤50 nA
- Noise Level
- ≤12.5μVp-p
- Anti Baseline Drift
- Automatic
- Filter
- EMG-Filter: 35 Hz (-3dB) / AC/DFT-Filter 50 Hz/60Hz (-20 dB)
- CMRR
- >110dB
- Recording Mode
- Auto/Manual
- Safety Standarts
- IEC 60601-1:2005 EN 60601-1:2006 EN 60601-1-2:2007 IEC 60601-1-2:2007 IEC/EN60601-2-25
- Power Supply
- AC: 100 V-115 V / 220 V-240 V, 50/60 Hz/ Li-ion battery: voltage 14.8 V More than 6.5 h
- Recorder
- Thermal printer / Dot structure: 384 dots/line / Dot pitch: 0.125 mm (8 dots/mm) / Dot size: 0.125mmx0.12mm
- Record paper
- 50mm x 30 m (rolled thermal paper)
- Paper speed
- 25mm/s, 50mm/s
- Dimension
- 288x 210x 70 mm
- Weight
- 2,3kg (including battery)
- Display
- 192x64 pixels LCD-interface
- External Input/Output
- Input: ≥ 100kΩ; Sensitivity 10mm/V ± 5% / Output: ≤ 100kΩ; Sensitivity 1V/mV±5%
- Communication
- RS-232
