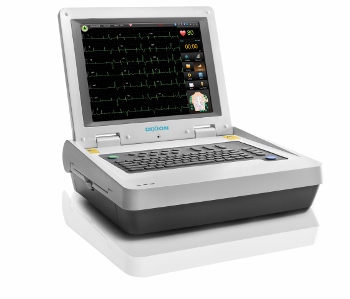

Workstation ECG Dixion 1018
Dixion
Article No. AK-CAR-009
The 18/15-lead ECG brings more information on right precordial and posterior wall, helping doctor find the accurate location of the myocardial infarction or ischemia, and apply right treatments, preventing possible tissue death.
Equipment standard by AKLION.
Specifications
- Lead
- 18 standard leads
- Acquisition Mode
- 18 leads acquisition simultaneously
- Time constant
- ≥3.2s
- Frequency Response
- 0.01Hz ~ 300Hz (-3dB)
- Sensitivity
- 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 10/5mm/mV, 20/10mm/mV, AGC
- Input Impedance
- ≥50MΩ (10Hz)
- Input Circuit Current
- ≤0.01μA
- Noise Level
- ≤12.5 µVp-p
- Filter
- EMG-Filter: 25Hz/35Hz/45Hz/Off / DFT-Filter: 0.01Hz/0.05Hz/0.32Hz/0.67Hz / AC-Filter: 50Hz / 60Hz /Off / LOWPASS-filter: 300Hz / 270Hz / 150Hz / 100Hz / 75Hz
- CMRR
- ≥123dB (AC Off)
- HR Range
- 30 bpm ~300 bpm / Accuracy: ±1 bpm
- Safety Standarts
- IEC 60601-1:2005/A1:2012 EN 60601-1:2006/A1:2013 / IEC 60601-1-2:2014 EN 60601-1-2:2015 IEC 60601-2-25:2011 EN 60601-2-25:2015
- Power Supply
- Operating voltage =100V–240V~ / Operating frequency = 50Hz / 60Hz
- Built-in Li Battery
- Rated voltage = 14.8V, Rated capacity = 5000mAh / 100% Charge time: 6 hours / When the battery is fully charged, ECG 1018 can work normally about 6 hours, and it can continually print about 3 hours in the manual mode or print about 250 ECG reports of 6x3+1R in the AUTO mode.
- Recorder
- Thermal dot-matrix recorder
- Printing density
- 8 dots per mm / 200 dots per inch (amplitude axes) 40 dots per mm / 1000 dots per inch (time axes, @ 25 mm/s)
- Record paper
- Folded thermal paper: / 210mmx295mmx100pages / 215mmx280mmx100pages / 210mmx295mmx200pages
- Paper speed
- 5; 6.25;10;12.5;25;50mm/s ± 3%
- Dimension
- 438mmx395mmx135mm, ±2mm
- Weight
- 9.5kg,±0.3kg (Excluding recorder paper and battery)
- Display
- 15 inch 1024x768 multicolor LCD screen
