Mobile Hospitals

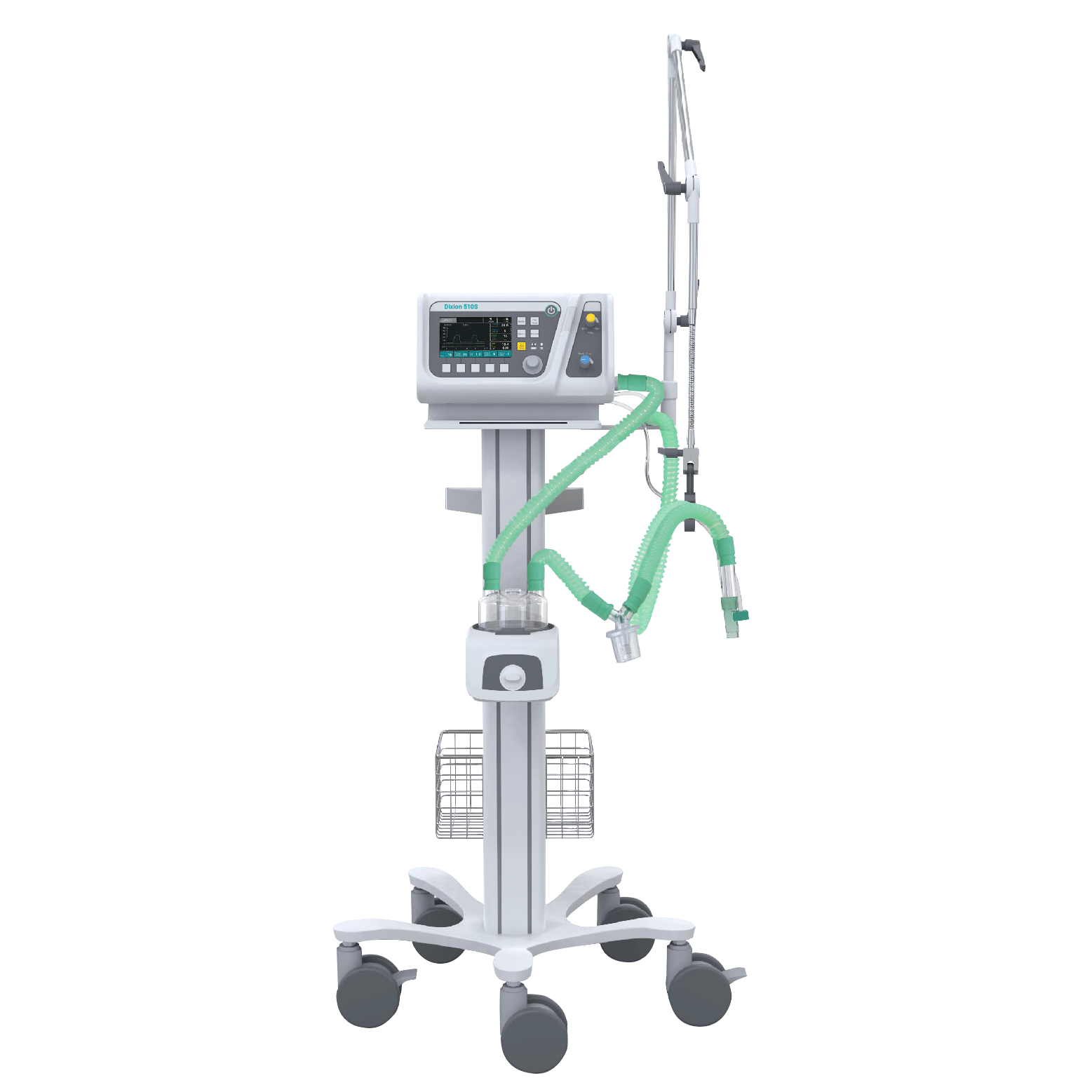

Integrated Respiratory Workstation Aeros 4300s
Dixion
Article No. AK-MH-004
DIXION Healthcare Project offers training to international medical staff in Germany's leading healthcare institutions and organises treatment for international patients in Europe's most reputable clinics.
Equipment standard by AKLION.
Specifications
- A/C-V with Sigh
- A/C-P
- SIMV-V
- SIMV-P
- SPONT/PSV
- CPAP
- Apnea back-up ventilation
- Manual breath
- Tidal volume (Vt)
- Manual breath
- Alarm silence
- 0–2000 mL
- Pinsp
- 5-50 cmH2O
- Psupp
- 0–50 cmH2O
- CPAP (NIV)
- 0–30 cmH2O
- PEEP
- 0–30 cmH2O
- Pressure trigger
- -20-0 cmH2O
- Flow trigger
- 2-30 L/min
- Frequency (f)
- 1–120 bpm (A/C) 1–40 bpm (SIMV)
- I:E ratio
- 4:1-1:10
- Pause time (Tpause)
- 0-5 s
- O2 concentration
- 40–100 %
- Inspiration flow
- Max. 90 L/min
- High MV
- OFF, 1-25 L
- Low MV
- OFF, 0-24 L
- Low FiO2
- OFF, 35-99 %
- High Paw
- 6-80 cmH₂O
- Low Paw
- 0-40 cmH₂O
- AC power failure
- Gas supply down
- O2 deficiency
- MV high
- Low battery
- No VT
- Apnea
- CP high
- Operating condition
- -18-50 °C
- Storage condition
- -20-60 °C
- Operating condition
- 15-95 %
- Storage condition
- 10-95 %
- Operating condition
- 70-110 kPa
- Storage condition
- 50–110 kPa
- AC voltage
- 100–240 V, 50/60 Hz
- DC voltage
- 12 V
- Battery run time
- Minimum 4.5 hours
- Battery type
- Nickel-cadmium battery
- Supply pressure (O2)
- 250–600 kPa
- Flow
- Max. 180 L/min
- Main unit weight
- 3 kg (exclude trolley)
- Dimension (HxWxD)
- 168x156x300 mm
- LCD screen
- 5″ TFT
- Communication Ports
- RS232
Adult & Child (>3.5 kg)
MANUAL
Alarm silence
Temperature
Relative humidity
Barometric pressure
