Obstetrics & Gynecology

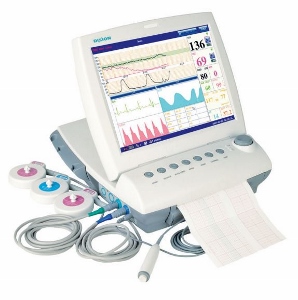

Fetal Monitor DIXION Overtone 6900 Exp
Dixion
Article No. AK-OG-005
Overtone 6900 is designed for the entire continuum of antepartum, intrapartum and postpartum applications. It offers the most advanced integrated monitoring for the delivery room and antepartum department.
Equipment standard by AKLION.
Specifications
- Technique
- Ultrasound pulse doppler with autocorrelation
- Ultrasound frequency
- 1.0 MHz
- FHR range
- 50 bpm – 240 bpm
- ExternaI TOCO
- 0 % – 100 %,135 g correspond to effort 1
- Pressure measurement range
- 100 %
- Zero mode
- Automatic/manual
- Manual fetal movement mark
- Manual transducer
- ECG
- 3 leads
- SPO2
- 0 – 100 %
- Heart rate
- 18 – 235 bpm
- NIBP
- Systolic: 50 – 240 mmHg / Diastolic: 15 – 180 mmHg / Medium: 25 – 200 mmHg
- Temperature
- 28 – 44 ºC
- CRT size
- 310 mm (12.1′)
- Screen size
- 246.0 x 184.5 mm
- Color
- 262, 144 (RGB 6 – Byte Driver)
- Interface
- LVDS (Low Voltage Differential Signaling)
- Paper
- Roll paper, thermosensitive
- Paper width
- 152 mm
- Print speed
- 1,2,3 cm/min
- Fast print (saved lines)
- up to 25 mm/s
- Data for recording
- FHR1, FHR2, FECG, TOCO, auto mark, date, time, print speed, alarm FHR, fetal movement mark, doctor's action mark, auto zero mode, ID, etc.
- Type
- Lithium-ion, rechargeable
- Continual working time
- 2 ~ 4 hours
- Rated storage
- 4000 mAh
- Rated voltage
- 14.8 V
- Time of operation
- > 500 charges
- Data transference interface
- USB/RS232, local network support
- Dimensions
- 347 x 330 x 126 mm
- Weight
- ~ 6 kg
- Electrical protection class
- IEC 60601-1:2005, EN 60601-1:2006/AC:2010, IEC 60601-1-2:2007, EN 60601-1-2:2007/AC:2010, IEC/EN 60601-2-27, IEC/EN 60601-2-37, IEC/EN 60601-2-49, IEC 80601-2-30, ISO 80601-2-61, ISO 80601-2-56, EN 12470-4, AAMI/ANSI EC13
- Current supply
- 220 V, 50 Hz
Ultrasound
Maternal monitoring (Overtone 6900 Exp)
Screen
Printer
Battery
