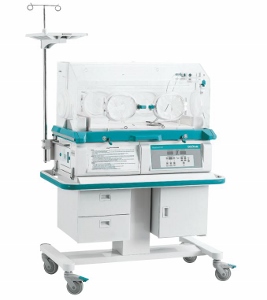

Infant Incubator BabyGuard
Choose model — 4 available
Dixion
Article No. AK-OG-009
Infant incubator BabyGuard I-1103 for intensive care is air-temp and skin-temp servo-controlled by a micro-computer and equipped with a special air circulation system inside the apparatus which minimizes the flow in the hood environment. The automatic curtain reduces the heat loss. The double-walled hood conserves the heat for 2 hours.
Equipment standard by AKLION.
Specifications
- Air temperature control range
- 25 – 37 °С (override mode 37 – 39° C)
- Skin temperature control range
- 34 – 37 °C (temperature override mode to 37 – 38 °C)
- Temperature rise time
- 30 min
- Inclination of the bassinet
- ± 12°
- Airflow rate within hood environment
- < 0,3 m/sec
- Noise level (inside hood)
- ≤ 45 dB
- Alarms
- Power failure Airflow failure Air temperature sensor failure Skin temperature sensor failure Temperature sensor deviation High temperature sensor failure Over temperature alarm
- Power supply
- 220 – 230 V, 50 – 60 Hz
- Dimension
- 1085mm x640mm x910mm (Main body) / 1125mm x665mm x725mm (Cabinet)
- Gross weight
- 63kg / 68 kg(Cabinet)
Temperature servo-control
