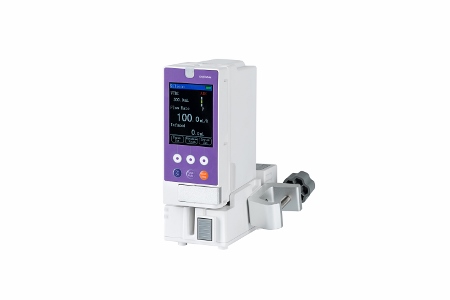

Feeding Pump DIXION Instilar 1420
Dixion
Article No. AK-ICC-001
Adjustable rate at 600-2000 ml/h (in 1, 5, 10 ml/h increments) Accuracy ±5% VTBI 1-9999 ml (in 1, 5, 10 ml increments) Infusion Mode ml/h Withdraw 600-2000 ml/h (in 1, 5, 10 ml/h increments) Cleaning 600-2000 ml/h (in 1, 5, 10 ml/h increments) Alarms Occlusion, air-in-line, door open, end program, low battery, end battery,.
Equipment standard by AKLION.
Specifications
- Pumping Mechanism
- Curvilinear peristaltic
- Enteral Feeding Set
- Standard enteral feeding set with silicon tube
- Flow Rate
- 1-2000 ml/h (in 1, 5, 10 ml/h increments)
- Purge, Bolus
- Purge when pump stops, bolus when pump starts, / adjustable rate at 600-2000 ml/h (in 1, 5, 10 ml/h increments)
- Accuracy
- ±5%
- VTBI
- 1-9999 ml (in 1, 5, 10 ml increments)
- Infusion Mode
- ml/h
- Withdraw
- 600-2000 ml/h (in 1, 5, 10 ml/h increments)
- Cleaning
- 600-2000 ml/h (in 1, 5, 10 ml/h increments)
- Alarms
- Occlusion, air-in-line, door open, end program, low battery, end battery, / AC power off, motor malfunction, system malfunction, reminder alarm, / tube dislocation
- Additional Features
- Real-time infused volume, automatic power switching, mute key, / purge, bolus, system memory, history log, withdraw, cleaning
- Occlusion Sensitivity
- High, medium, low
- History Log
- 30 days
- Air-in-line Detection
- Ultrasonic detector
- Wireless management
- Optional
- Fluid Warmer
- Optional (30-40℃, in 1℃ increments, over temperature alarm)
- Vehicle Power (Ambulance)
- 12 V
- Power Supply, AC
- 110/230 V, 50/60 Hz, 45 VA
- Battery
- 10.8 V, rechargeable
- Battery Life
- 8 hours at 100 ml/h
- Working Temperature
- 10-30℃
- Relative Humidity
- 30-75%
- Atmospheric Pressure
- 860-1060 hpa
- Size
- 150(L)*120(W)*60(H) mm
- Weight
- 1.5 kg
