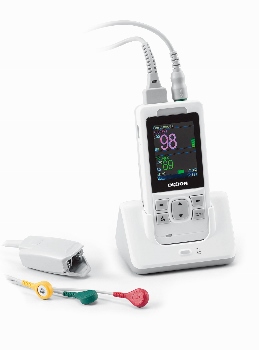

Pulse Oximeter DIXION Storm 5100

Technical specifications

Dimensions

58.5mm(W)x123mm(H)x28mm(D)

Weight

200g

BatteryType

3 AA Alkaline batteries or / Lithium ion rechargeable battery (Option) / Runtime: >16 hours for normal measurement status

Display

2.4″ OLED 320*240 pixels

Data Storage

Displaying way: Trend tabular / Trend interval: 2 seconds to 30 minutes / Trend parameter: PR, Sp02 / Trend data:Spot-checkmode: ID from 1 to 99, 300 group for each ID. / Continuous monitor mode: 60000 group can be srored

Digital Sp02

Range: 0-100% / Resolution: 1% / Accuracy: 70% to 100%: ±2%

PR

Range: 25 bpm to 250 bpm / Resolution: 1 bpm / Accuracy: ±2% or ±1 bpm

Nellcor Sp02 (Option)

Range: 0% to 100% / Resolution: 1% / Accuracy: 70% to 100%: ±3% (neonatal), ±2%(Adult/child) / 0% to 69%: unspecified / Refreshing rate:7 seconds / Pitch Tone: with

PR

Range: 20 bpm to 300 bpm / Resolution: 1 bpm / Accuracy: 20bmp~250bmp ±3bmp, / 251~300bmp unspecified / Refreshing rate: 7s

ECG (Option)

3 lead (RA, LA, LL or R, L, F) / Lead: I, II, III / Input impedance: >5.0MQ / Input current: <0.1 uA / CMRR: Diagnostic mode >90dB / HR range: 10 bpm -300 bpm / HR Resolution: 1 bpm / HR Accuracy: +1% or +1 bpm
