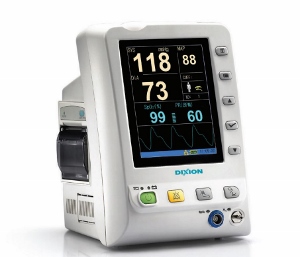

Vital Signs Monitor DIXION Storm 5300
Dixion
Article No. AK-ICC-017
The monitor Storm 5300 provides continuous monitoring of SpO2 (Nellcor – optional) and СО2 for both intubated and non-intubated patients. This monitor is portable and compact. It offers high-performance monitoring suitable for adults, children and infants.
Equipment standard by AKLION.
Specifications
- Display
- 5.6 inch high resolution color TFT-LCD screen (640x480)
- Battery
- Lithium battery (rechargeable)
- Paper width
- 48 mm
- Print Speed
- 12.5; 25 mm/sec
- Dimension
- 174 x 235 x 189 mm
- Weight
- ≤3.5 kg (without battery)
- SpO2
- Measuring range: 0-100 % Alarm range: 0-100% Pulse Pulse rate: 25-300 bpm Accuracy: ±2 bpm Resolution: 1 bpmNELLCORE module (OPTIONAL)Measuring range: 0-100 % Alarm range: 0-100% Pulse Pulse rate: 20-300 bpm Accuracy: ±2 bpm Resolution: 1 bpm / Sensor / Wave length: ≈660- 900nm
- NIBP
- Method: oscillometric, automatic Mode: manual, auto, continuous Measuring type: systolic (SYS), diastolic (DIA), mean( MAP), PR Measuring rang: Adult mode Pediatric mode Neonatal mode SYS 40-270 mmHg SYS 40-230 mmHg SYS 40-135 mmHg DIA 10-215 mmHg DIA 10-180 mmHg DIA 10-100 mmHg MAP 20-235 mmHg MAP 20-195 mmHg MAP 20-110mmHg
- CO2
- Method: infra-red absorption technique Measuring mode: lateral Apnea Signal: available Measuring range: CO2 0-99 mmHg Ins CO2 0-99 mmHg AwRR 0-150 bpm
