radioSURG® Standard Electrode Set No. 300 ELBU0300

Description

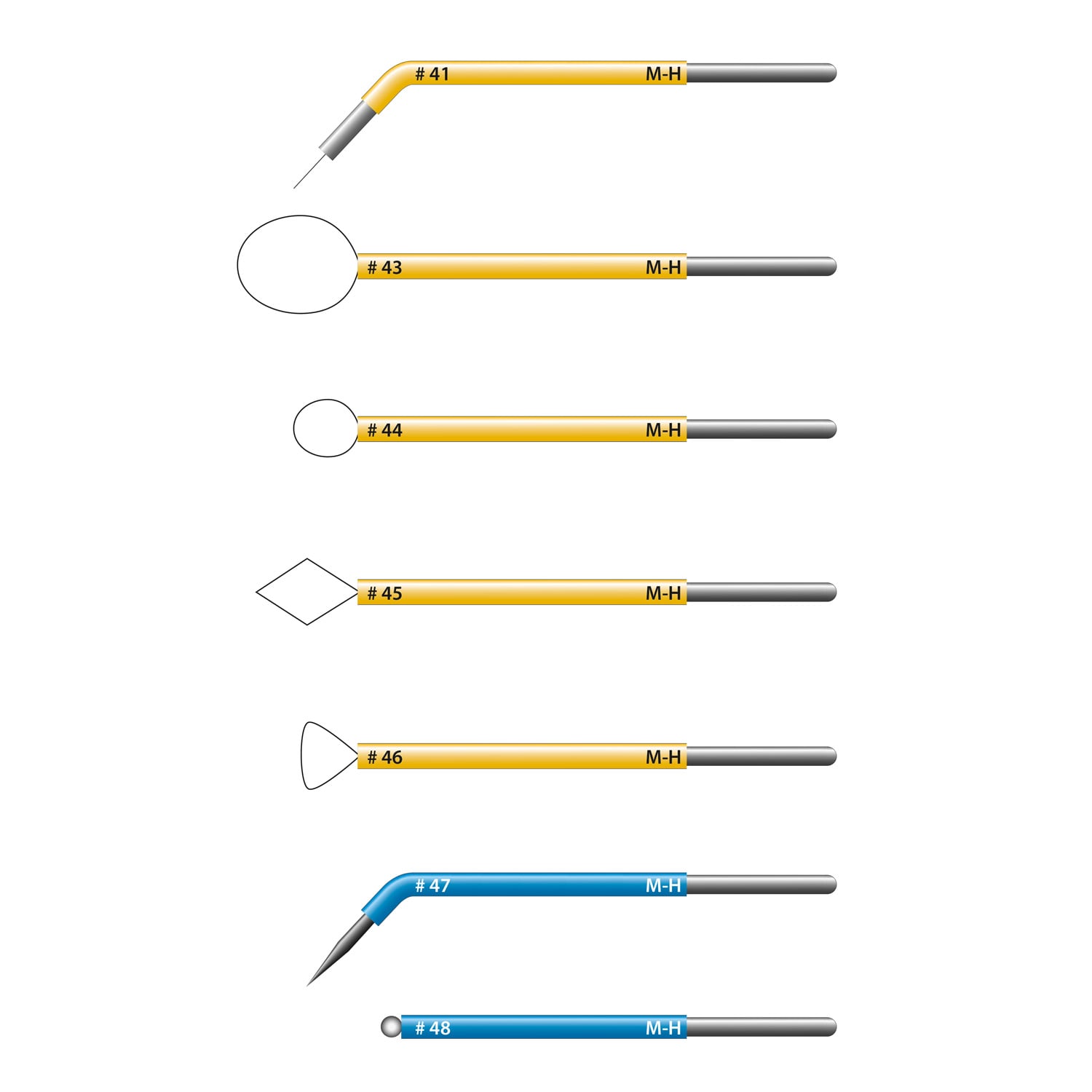

The radioSURG® Standard Electrode Set No. 300 from Meyer-Haake consists of seven different cutting and coagulation electrodes with bendable shafts. The cutting electrodes are made of high-quality fine wire with a diameter of 0.25 mm. The electrodes are compatible with the radioSURG® PT/PTA, TP/TPA and M radiosurgical units. Delivery ContentsElectrode TypeDescription1x Needle Electrode no. 2- Shaft angled - Total length insulated shaft: 37.5 mm1x Loop Electrode no. 43 (large)- Loop diameter: 13 mm- Shaft straight- Total length insulated shaft: 31 mm1x Loop Electrode No. 44 (small)- Loop diameter: 7 mm- Shaft straight- Total length insulated shaft: 31 mm1x Diamond Electrode no. 45- Side length: 7 mm- Total diamond length: 10 mm- Shaft straight- Total length insulated shaft: 31 mm1x Triangle Electrode No. 46- Side length: 5 mm- Shaft straight- Total length insulated shaft: 31 mm1x Needle Electrode No. 47 (thick)- Needle diameter: 1.5 mm (conical tip)- Needle length: 10 mm- Shaft angled- Shaft rigid- Total length insulated shaft: 31 mm1x Ball Electrode No. 48- Ball diameter: 2 mm- Shaft straight & bendable- Total length insulated shaft: 31 mm
