Mobile Hospitals

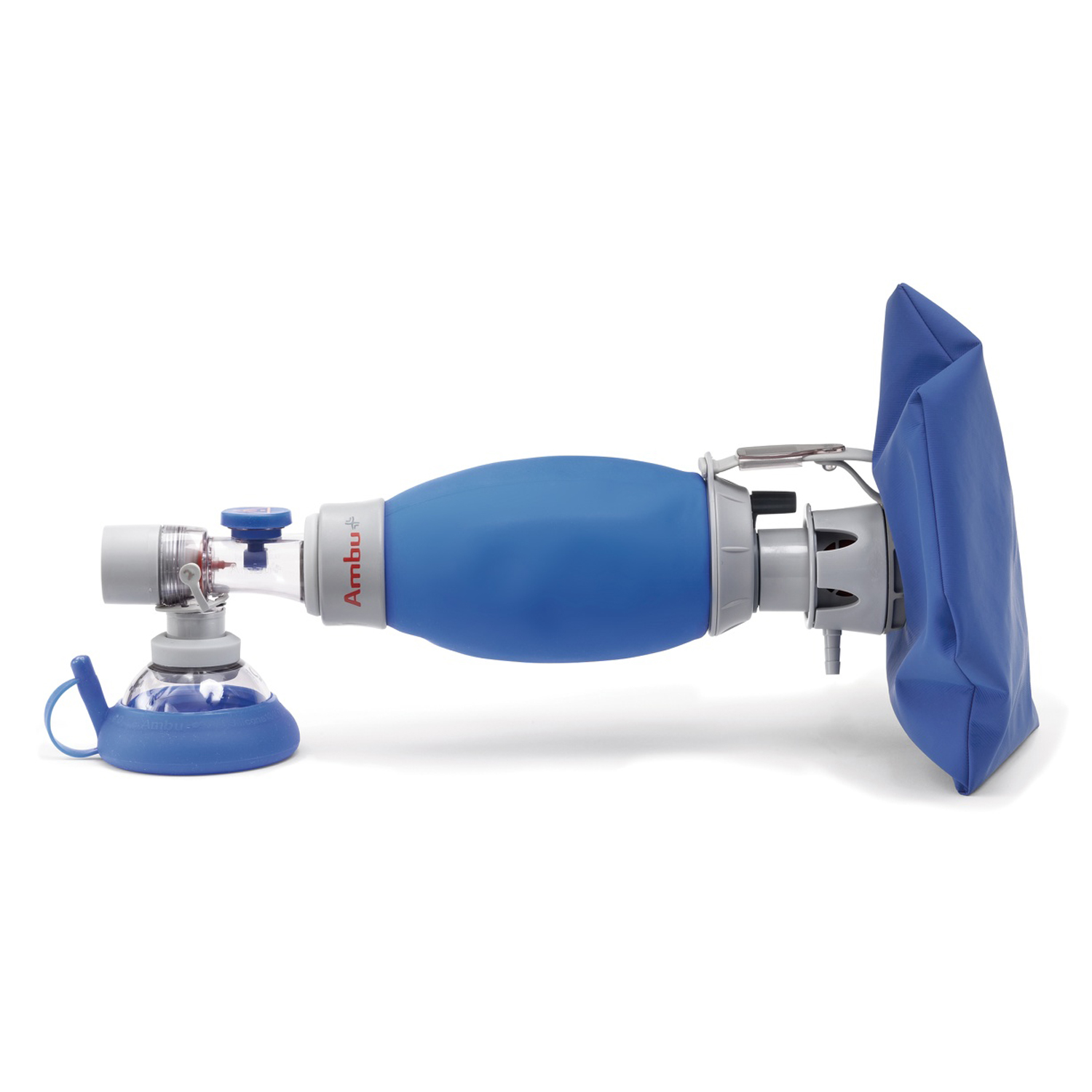

AMBU Mark IV Baby Resuscitator 126114
Ambu · 126114
Article No. AK-MH-096Product details
- Article number
- AK-MH-096
- Category
- Mobile Hospitals
- Brand
- Ambu
- Model
- 126114
Description
The AMBU Mark IV, baby resuscitator is specifically designed for the manual ventilation of newborns, infants, and young children up to a body weight of 20 kg and meets the high demands of daily work in a medical practice as well as emergency medicine. The proven double-chamber principle provides the user with excellent grip; at the same time, it enables tactile perception of ventilation pressure, allowing you to reliably recognise when the maximum pressure is reached. This increases patient safety and minimises the risk of barotrauma – supported by the integrated pressure-limiting valve, whose cap allows a temporary increase in pressure if required. The transparent single-membrane patient valve enables you to visually check the function of the valve at any time and ensures reliable ventilation. A rotatable 360° connector between the patient valve and face mask allows flexible handling without interrupting ventilation. The included silicone face mask size 0A is anatomically adapted to the needs of babies and ensures optimal sealing as well as effective ventilation. For hygienic multiple use, the AMBU Mark IV baby resuscitator bag is autoclavable up to 134 °C (excluding oxygen reserv
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Ambu
- Model
- 126114
- Product type
- Bag Valve Masks Resuscitators
- Stroke volume
- approx. 300 ml
- Dimensions
- 26.5 x 8.5 cm (length x diameter)
- Weight (without mask)
- 190 g
- Material
- Latex-free
- Autoclavable
- up to 134 °C (excluding oxygen reservoir tube and face mask)
- Resuscitator bag
- up to 30 sterilisation cycles
- Oxygen reservoir bag
- up to 15 sterilisation cycles
- Double-chamber principle
- for tactile feedback of ventilation pressure
- Application
- Manual ventilation and resuscitation
- Maximum patient weight
- 20 kg
- Length
- 26.5 cm
- Diameter
- 8.5 cm
