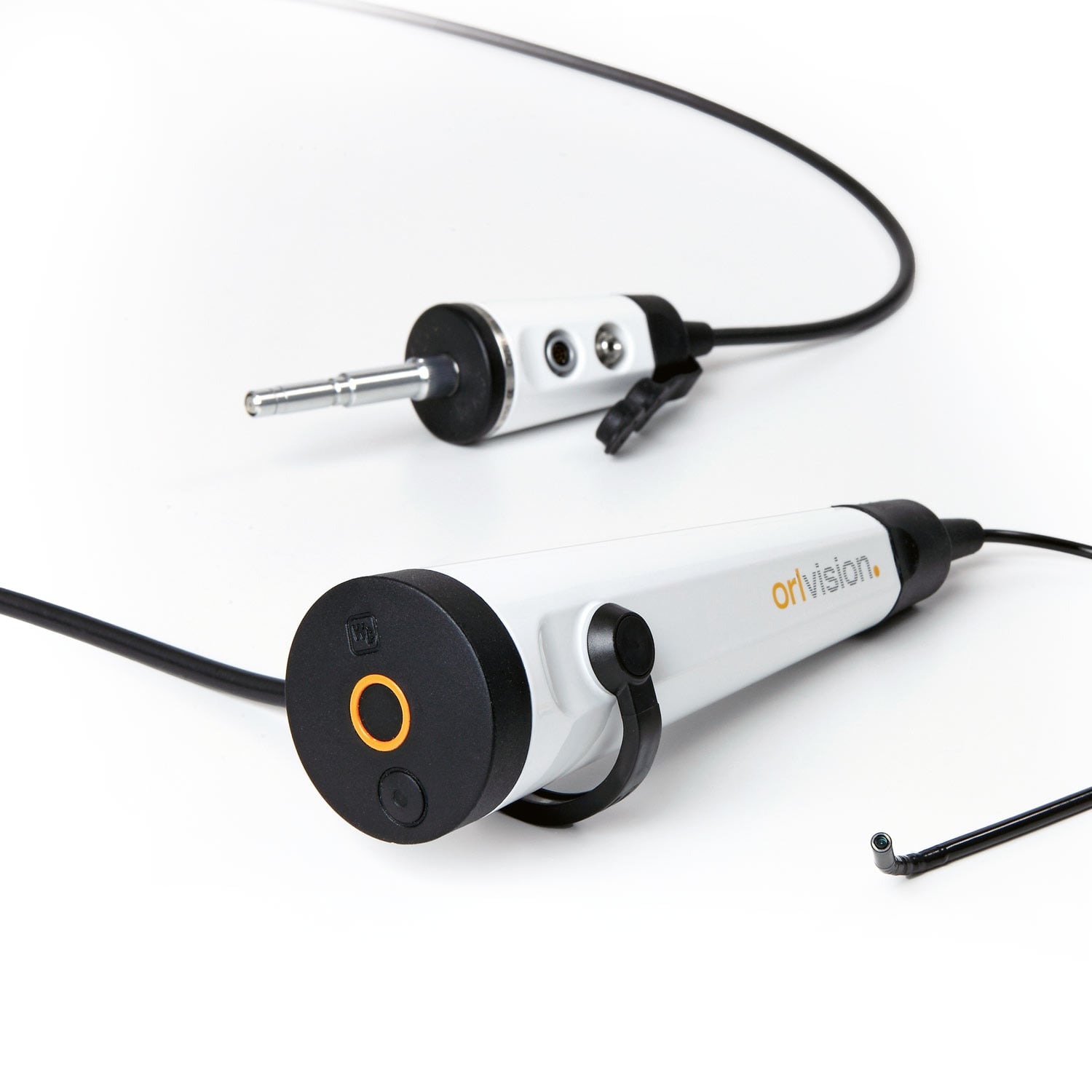

Orlvision Video Rhino-Laryngoscope RS1 M-200-24031-0000
orlvision GmbH · M-200-24031-0000
Article No. AK-MH-288Product details
- Article number
- AK-MH-288
- Category
- Mobile Hospitals
- Brand
- orlvision GmbH
- Model
- M-200-24031-0000
Description
The flexible Orlvision Video-Rhino-Laryngoscope was specially developed for ENT doctors and is used for image and video documentation of examinations of the nose, nasal cavities, pharynx, larynx and nasopharynx. The integrated camera processor as well as the precision optics with integrated cold light illumination provide clear natural images. The images obtained can be displayed and stored on a high-resolution screen. The attached lens of the Orlvision RS1 allows a viewing angle of 90°. In addition, the distal end of the insertion tube can be angled in a range of ± 130°, enabling particularly detailed examinations. The Orlvision RS1 video rhino-laryngoscope can be quickly and easily connected to various light sources with the hepl of different adapters. The video endoscope has a white balance button and capture button directly on the handpiece to enable particularly easy operation.
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- orlvision GmbH
- Model
- M-200-24031-0000
- Product type
- Laryngoscopes Accessories
- Image sensor
- CCD image sensor
- Diameter insertion tube
- 3.9 mm
- Probe control up/down
- 130°/130°
- Angle of view
- 90°
- Video format
- NTSC/ PAL and NTSC
- Resolution
- 320 x 240/500 x 582 and 510 x 492
- Working length
- 310 mm
- Total length
- 540 mm
- Illumination
- Cold light source, fibre optic light guide
- Power supply
- 100-240 V
- Power
- max. 1.5 W
- Interface
- Cinch video/ Y_C Video, Cinch
- Air pressure
- 950 to 1050 hPa
- Protection class
- IP 68
