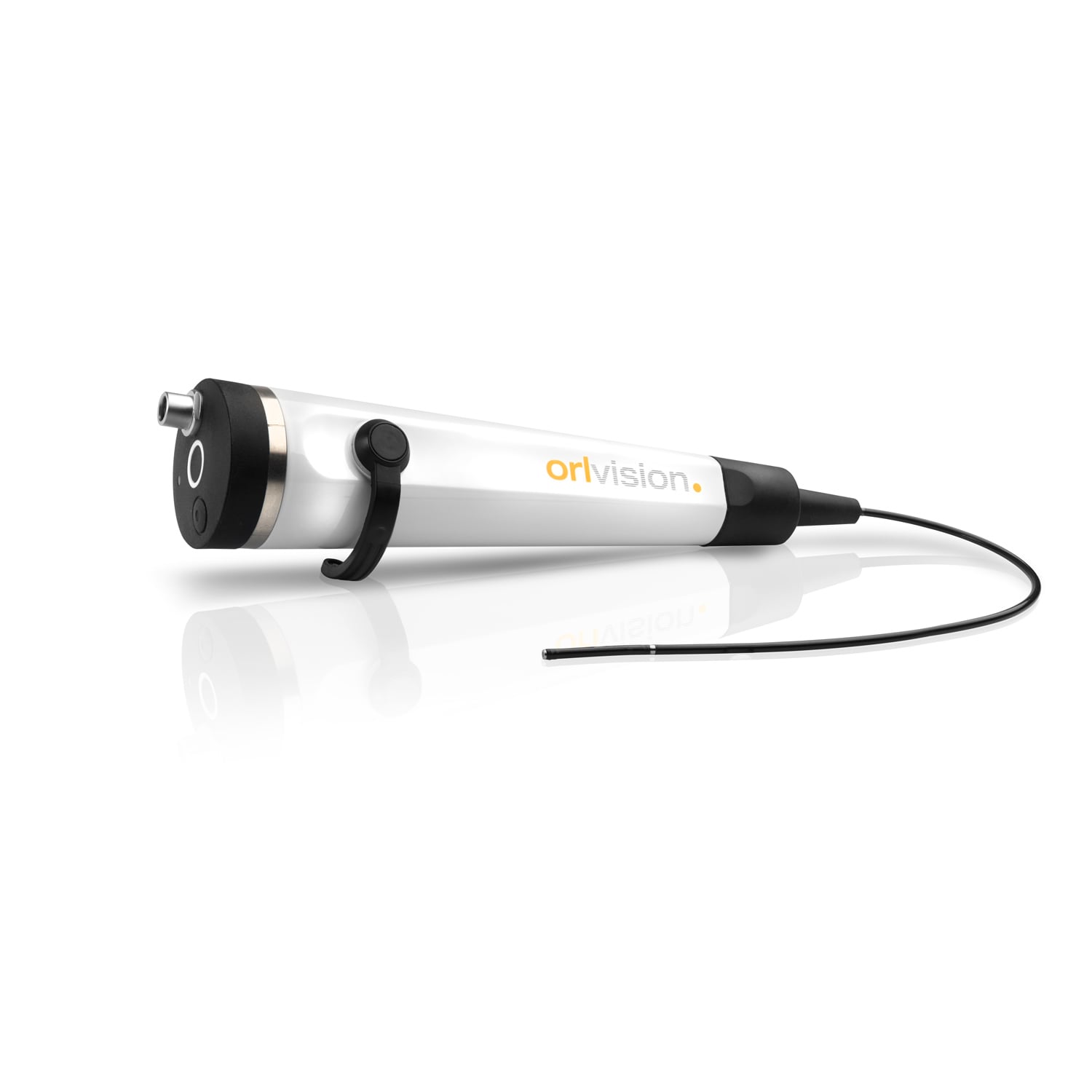

Orlvision Video Rhino-Laryngoscope RSX M-205-24031-0100

Description

The flexible Orlvision Video Rhino-Laryngoscope RSX is the world's first ultra-compact video endoscope for examining the nasopharynx. The lightweight handpiece has integrated high-performance LED illumination and an integrated camera processor. This ensures optimal illumination of the examination area and displays high-resolution images. The attached lens of the RSX video rhino-laryngoscope allows a 90° angle of view, while the distal end of the insertion tube can be angled up and down to 130°. Captured images and videos can be evaluated and edited with the software included in the delivery. SpecificationsS-Video Connection (147650)USB (147651) Paediatrics (USB) (147652) HD (USB) (147653)Image sensorCMOS 1/10'' image sensorCMOS 1/18'' image sensorCMOS 1/18'' image sensorHD CMOS image sensorFocus range10 - 55 mm10 - 55 mm10 - 55 mm10 - 50 mmAngle of view90°90°90°90°Insertion tube diameter3.9 mm3.9 mm2.9 mm3.9 mmProbe control130°/130°130°/130°130°/130°130°/130°Resolution400 x 400400 x 400400 x 400800 x 800Working length310 mm310 mm310 mm310 mmTotal length540 mm540 mm540 mm540 mmPower supply5V DC/0,3A5V DC/0,3A5V DC/0,3A5V DC/0,3APowermax. 2.2 Wmax. 2.2 Wmax. 2.2 Wmax. 2.2 WInterfa
