ICU & Critical Care
Pulse CO-Oximeter® 9216-U
Choose model — 4 available
Masimo · 9216-U
Article No. AK-ICC-316Product details
- Article number
- AK-ICC-316
- Category
- ICU & Critical Care
- Brand
- Masimo
- Model
- 9216-U
Description

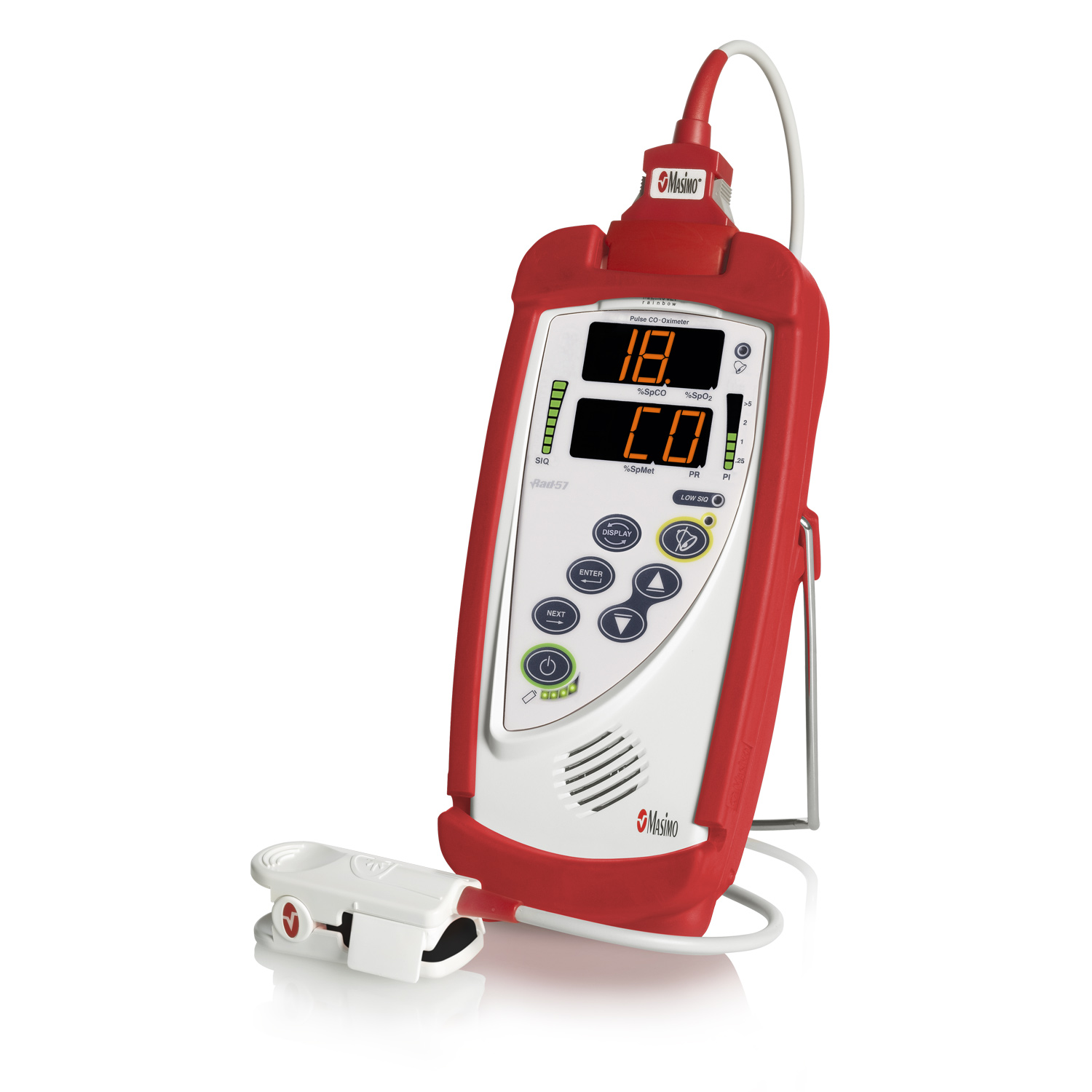

The Rad-57® Pulse CO-Oximeter® enables precise, non-invasive measurement of oxygen saturation (SpO2), pulse rate, and carbon monoxide content in the blood – crucial for comprehensive respiratory function monitoring. The integrated Masimo SET® technology ensures reliable data acquisition even during movement or reduced peripheral perfusion, significantly optimising workflow. The robust device impresses with a clear, multicoloured LED display featuring numerical and graphical readouts, supporting quick and confident decision-making. Individually adjustable alarms for critical values significantly enhance patient safety. Proven in everyday clinical use for decades, it modernises existing monitoring routines without replacing them, providing an efficient addition for a wide range of clinical applications. The combination of high accuracy, long-term stable measurement quality, and ergonomic design makes the Rad-57® a reliable instrument for physicians who depend on precise and rapid diagnostics. Important note: the Rad-57® Pulse CO-Oximeter® is delivered without the SpCO function, which can be added later as an optional upgrade. Alarms: Audible and visual alarms for critical values (Hi/
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Masimo
- Model
- 9216-U
- Product type
- Pulse Oximeters
- Measurement parameters
- Oxygen saturation (SpO2), pulse rate, carbon monoxide concentration (SpCO)
- Measurement method
- Masimo SET® Measure-through Motion™ and Low Perfusion™ technology
- Display
- Multicoloured LED display with numerical and graphical readout
- Battery type
- 4× AA alkaline batteries
- Memory
- Trend recording for up to 72 hours
- Sensitivity levels
- Three levels (Max, Normal, APOD™)
- Averaging time
- Adjustable from 2 to 16 seconds
- Weight
- Lightweight (approx. 369 g with batteries)
- Dimensions
- Compact, portable (17.5 x 7.6 x 3.6 cm)
- Application areas
- Hospital, emergency medicine, home care, clinics
- Standards and certifications
- CE marking, compliant with relevant medical standards
- Scope of delivery
- Rad-57® Pulse CO-Oximeter®, rubber protective case, batteries, user manual
- Housing
- High-quality, impact-resistant plastic with non-slip surface
- Protection
- Shockproof case made of elastic plastic
