Fold Down Exam Table

Hospital Furniture

Fold Down Exam Table 125-04/L+64-149

125-04/L+64-149

Article No. AK-HF-302

Product details

Article number
AK-HF-302
Category
Hospital Furniture
Brand
AKLION
Model
125-04/L+64-149

Description

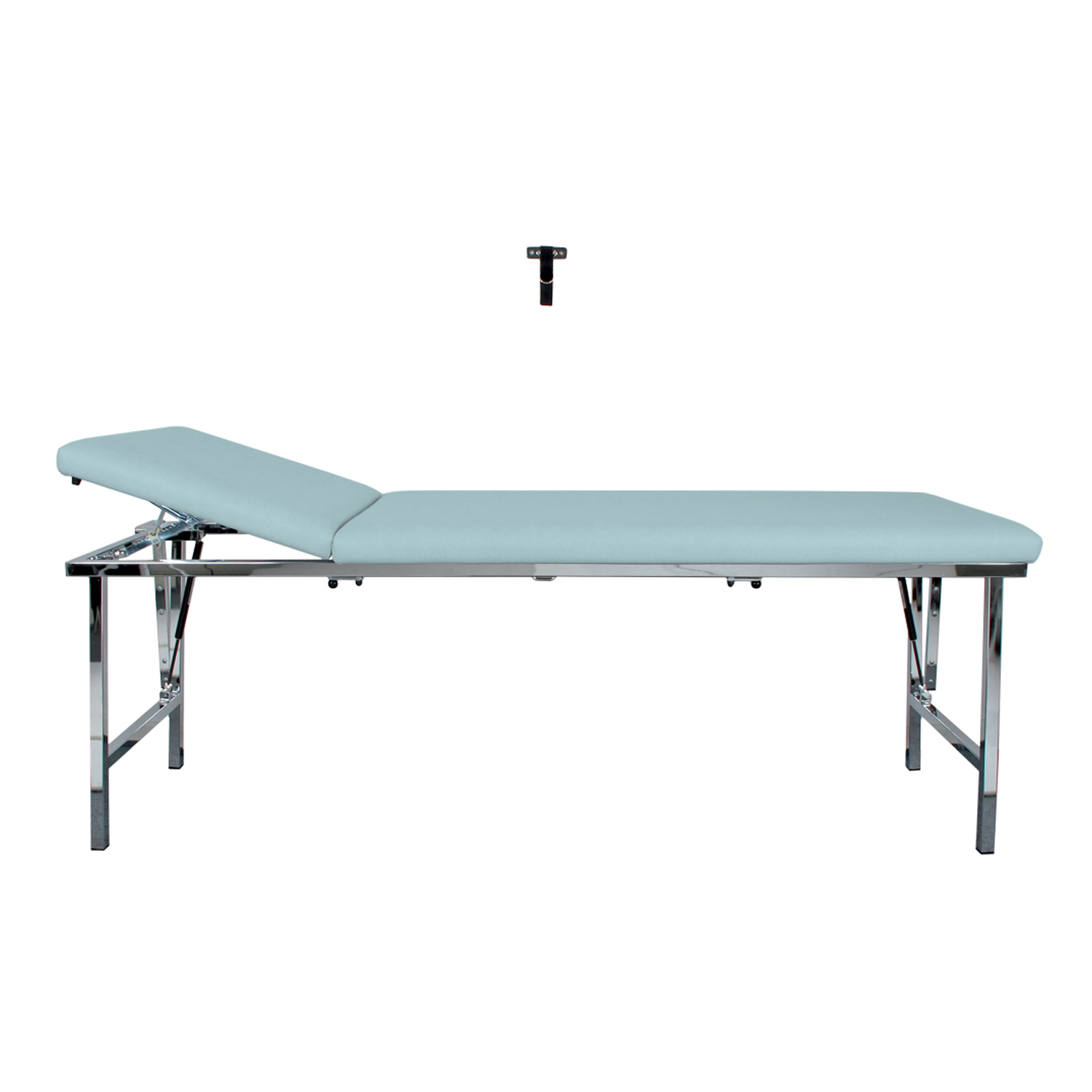

The space-saving wall-mounted fold down exam table from Dewert has a two-part lying surface and a head section that can be adjusted by up to 30°. The table was specially designed to be mounted on one side of a stable stone wall and can be folded upwards on the long side if required. When folded up, the couch can be fixed in place with the help of the safety holder with strap. Folding out is simplified by the gas spring-supported foot release. The particularly robust table frame consists of a stable square tube and allows a maximum load capacity of up to 200 kg. In addition, the lounger has galvanised steel hinges that serve as connecting elements between the head and foot sections. The positive headboard adjustment is facilitated by the two parallel safety grids. The smooth upholstery cover with velvety shimmer effect is antibacterial, latex-free and available in many different colours. Material composition: approx. 3 % PVC-PU finish, approx. 12 % BW/PES knitted fabric, approx. 85 % PVC compound Flame retardant (NF M2, BS 5852 IS-0+1, DIN 4102 (Part 1, B2), DIN EN 1021 1+2, MVSS 302)

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Model
125-04/L+64-149
Product type
Examination Couches
Headrest length
550 mm
Footrest length
1400 mm
Upholstery thickness
80 mm
Length of the lying surface
1950 mm
Total length (with wall brackets)
2040 mm
Width of the lying surface
650 mm
Height
700 mm
Weight
35 kg
Max. load capacity
200 kg
Thickness
1.35 +/- 0.2 mm
