Hospital Furniture

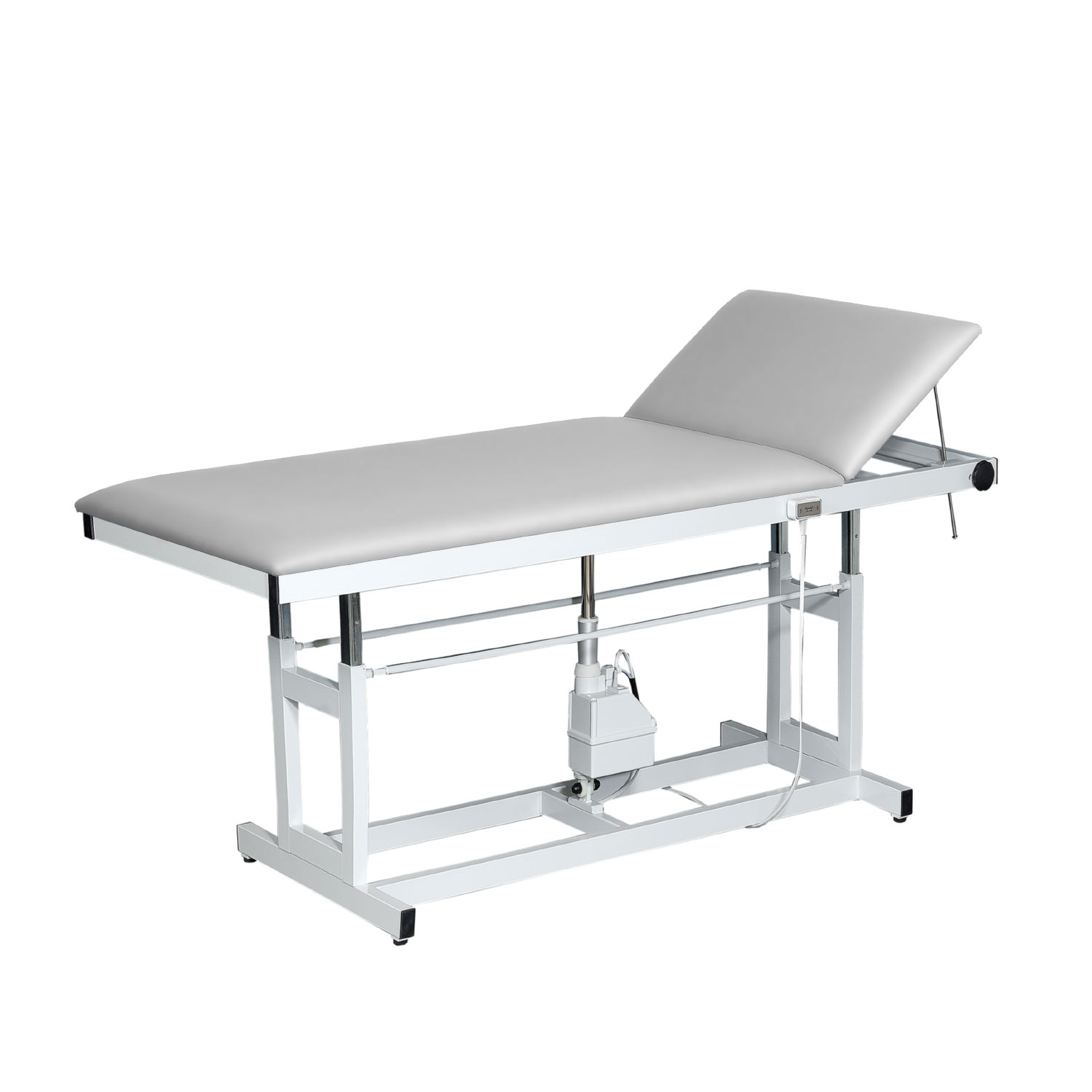

XXL Exam Table 135638HGR
AGA · 135638HGR
Article No. AK-HF-672Product details
- Article number
- AK-HF-672
- Category
- Hospital Furniture
- Brand
- AGA
- Model
- 135638HGR
Description
The height-adjustable XXL exam table is designed for clinics and daily work in medical practices, enabling safe patient positioning – including for patients weighing up to 300 kg. The reinforced steel tube frame with cross braces and gusset plates provides high stability and makes the couch suitable for bariatric care. The table is available with hydraulic or electric height adjustment. Both versions support ergonomic working for medical staff. The electric model is operated via a hand control. Height adjustment from 65 to 85 cm is continuous, quiet and vibration-free, even under full load. The head section adjusts continuously up to +40° using a clamping rod mechanism, allowing flexible positioning. A precision double square guide reduces rocking and lateral movement, ensuring smooth height adjustment. For hygiene, the examination table features a disinfectant-resistant synthetic leather cover available in multiple colours. The 64 mm upholstery provides comfort during longer examinations or treatments. Integrated floor levelling screws ensure stability on uneven surfaces. With its high load capacity, smooth adjustment and durable construction, the XXL examination table is suitable
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- AGA
- Model
- 135638HGR
- Product type
- Examination Couches
- Load capacity
- max. 300 kg
- Adjustment range
- 65 – 85 cm (650 – 850 mm)
- Length
- 190 cm (head section: 50 cm, lying surface: 140 cm)
- Width
- 80 cm
- Head section adjustment
- stepless up to +40° (clamping rod mechanism)
- Upholstery thickness
- 64 mm
- Cover
- VOWAled Pisa synthetic leather (OEKO-Tex Standard 100), tear-resistant, hard-wearing, disinfectant-resistant
- Upholstery colours
- choice of many shades, electrically conductive cover optional
- Warranty
- 36 months
- Net weight
- approx. 110 kg (electric version)
- Motor power
- 850 W
- Voltage
- 230 V, 50/60 Hz
- Protection class
- IPX4
- Lifting speed
- 11 mm/s (hydraulic version differs)
- Total length
- 1900 mm (head section: 500 mm, lying surface: 1400 mm)
