CO2 Traffic Light

Personal Protective Equipment

CO2 Traffic Light 142454

142454

Article No. AK-PPE-008

Product details

Article number
AK-PPE-008
Category
Personal Protective Equipment
Brand
AKLION
Model
142454

Description

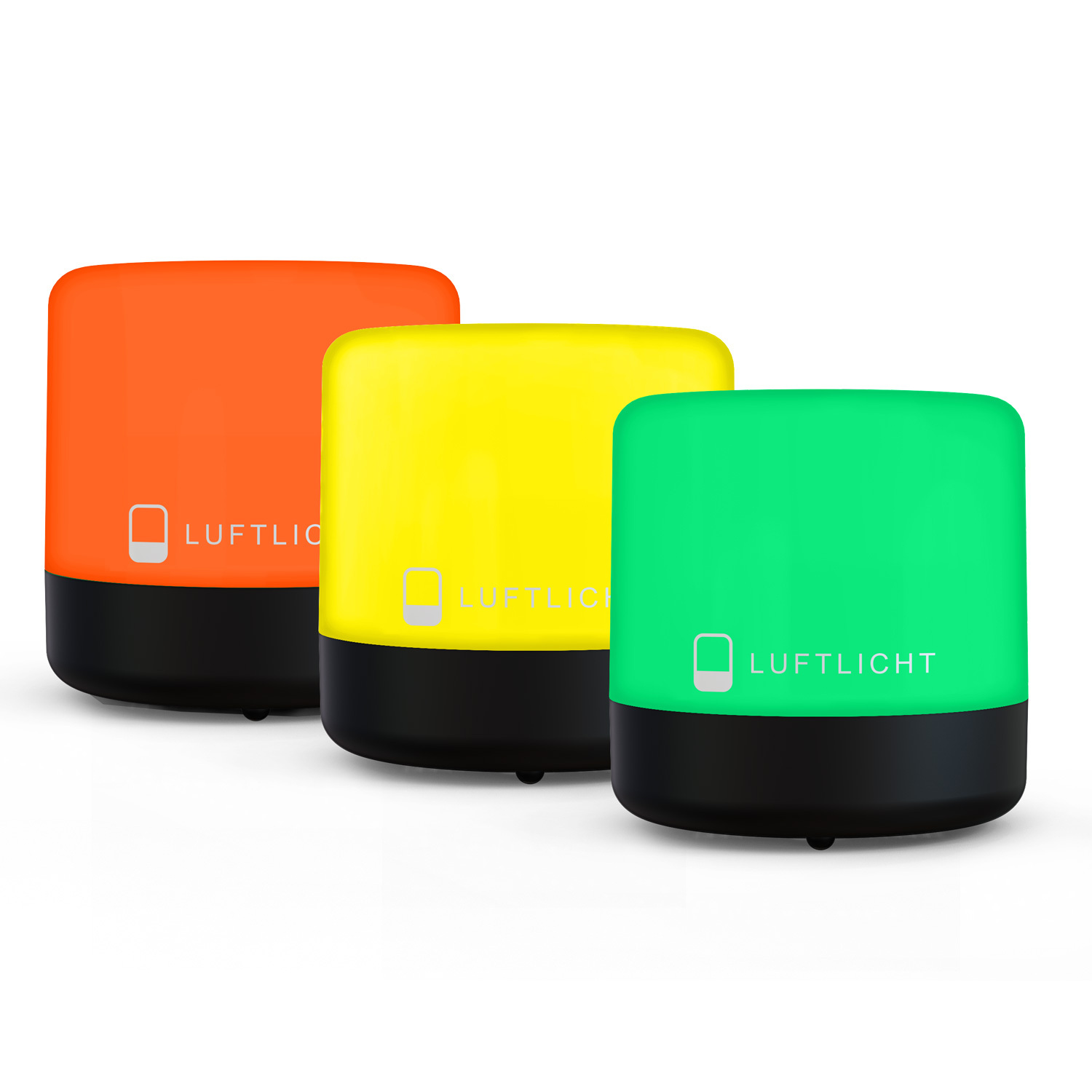

The CO2 Traffic Light from Luftlicht is ideal for monitoring the CO2 concentration in indoor spaces, such as offices or classrooms. The traffic light is equipped with three coloured LEDs and a CO2 sensor. Depending on the CO2 concentration, the lamp lights up in green (up to 999 ppm), yellow (up to 1999 ppm) or red colour (from 2000 ppm) and thus signals when ventilation of the room is necessary. The CO2 traffic light is already calibrated and ready for immediate use. To obtain optimal readings, the lamp should be placed centrally on the wall at a height of 2 m or on a table. Direct sunlight should be avoided and the distance to the nearest person should be at least 1.5 m. Monitoring CO2 concentation in the ambient air and regular airing have been shown to significantly reduce the risk of transmission of corona viruses (SARS-CoV-2) and influenza via aerosols. Thanks to the coloured LEDs, a high CO2 content can be quickly detected Red LED lights up at over 2000 ppm CO2: ventilation is absolutely necessary Ventilation time with yellow colour: 3-5 minutes with cold outside air, 10-20 minutes with warm outside air Ventilation time with red colour: ventilate for 10-15 minutes, open wind

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Model
142454
Product type
Infection Protection
Measuring method
NDIR sensor, self-calibrating
Sensor lifetime
15 years
Measuring range
400 ppm - 10,000 ppm CO2 (± 30 ppm)
Operating temperature range
0 °C - 50 °C
IP protection class
IP 30
Dimensions
Ø 9 cm, 9.5 cm height
Weight
approx. 300 g
Quantity
1 CO2 traffic light
Green LED lights up at 400-999 ppm CO2
good indoor air quality
Yellow LED lights up at 1000-1999 ppm CO2
ventilation is advisable
