KATASPIR 230/12 V BR, battery-operated suction pump

Surgical Equipment

KATASPIR 230/12 V BR, battery-operated suction pump 483-KAT23012

Medutek · 483-KAT23012

Article No. AK-SE-222

Product details

Article number
AK-SE-222
Category
Surgical Equipment
Brand
Medutek
Model
483-KAT23012

Description

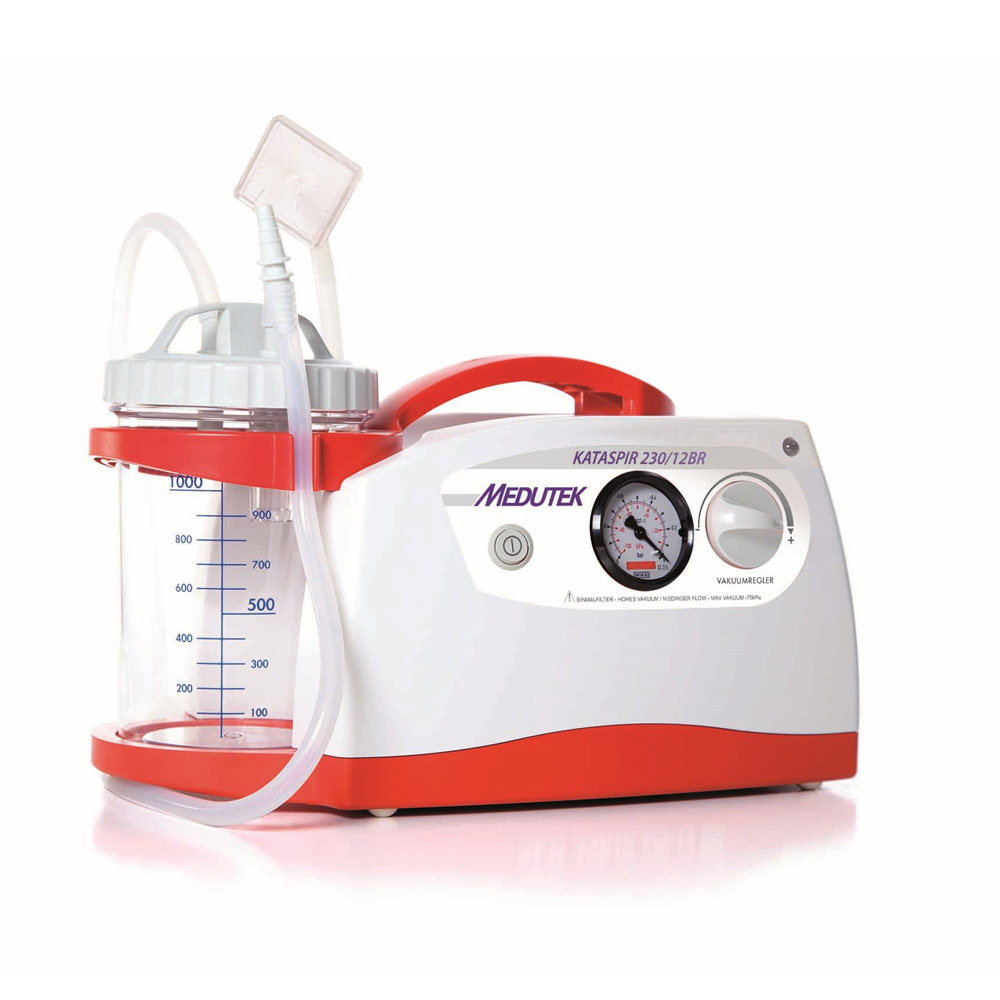

The KATASPIR 230/12 V BR is a portable and compact suction pump designed for flexible use in medical care. Thanks to its integrated battery, the device can be used for up to 50 minutes without mains connection, making it suitable for mobile emergencies and patient transports. With a maximum suction capacity of 16 l/min, the pump enables efficient secretion suction for adults and children. The stepless vacuum regulation allows precise adjustment of the suction power to individual requirements, supporting sensitive applications such as tracheostomy care. The device is easy to operate and provides visual and acoustic signals to indicate a low battery level. This supports reliable use without the need for continuous status monitoring. The supplied autoclavable 1-litre secretion container is easy to clean and reusable. A 2-litre container is also available for applications requiring a larger capacity. The integrated bacterial filter helps protect the device from contamination and supports hygienic operation. With its low weight and compact design, the KATASPIR 230/12 V BR offers comfortable transport and ergonomic handling. It is suitable for use in inpatient care, home care and veterin

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Brand
Medutek
Model
483-KAT23012
Product type
Secretion Aspirators
Dimensions
350 x 210 x 180 mm (L x W x H)
Weight
3.5 kg (with suction accessories)
Maximum suction capacity
16 l/min
Maximum vacuum
-0.75 bar (adjustable)
Minimum vacuum
-0.25 bar
Noise level
< 65 dBA
Battery operating time
approx. 80 minutes continuous operation
Battery charging time
approx. 240 minutes (initial charge recommended 8 hours)
Standard
1 litre, autoclavable, graduated
Optional
2 litre container available
Filter
Hydrophobic bacterial filter for contamination protection
Safety
Overflow valve protects against over-suction
Motor
Oil-free, maintenance-free piston compressor
Device class according to MPG
Class IIa
With mains adapter
Class II
