Surgical Equipment

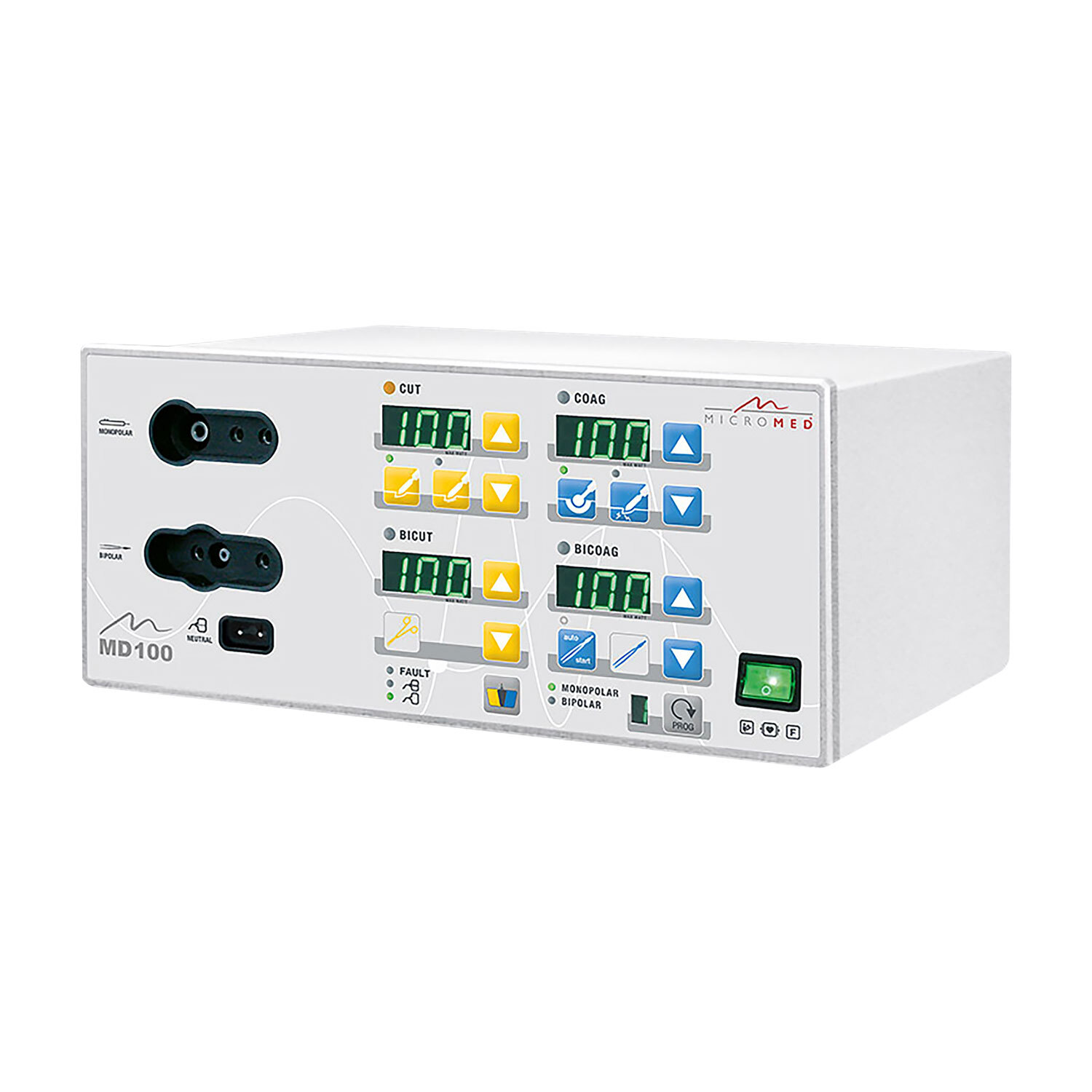

MD 100 Electrosurgical Unit 150-100-001
MicroMed · 150-100-001
Article No. AK-SE-238Product details
- Article number
- AK-SE-238
- Category
- Surgical Equipment
- Brand
- MicroMed
- Model
- 150-100-001
Description
The MD 100 Electrosurgical Unit has been developed for professional use in outpatient specialist practices and meets the highest requirements for patient safety and ease of use. Thanks to the automatic power control, the device continuously adjusts the output power to the current tissue resistance. This enables precise cutting and coagulation – regardless of anatomical conditions. The set maximum power is reliably maintained at all times. With two monopolar cutting and two coagulation modes as well as one bipolar cutting and coagulation function each, the MD 100 offers a wide range of indications. Particularly noteworthy is the bipolar AUTO-START function, which supports safe and comfortable operation during vessel sealing or work on delicate tissue structures. The power adjustment in 1-watt increments also enables microsurgical applications with the highest precision. Nine individually programmable memory slots allow you to quickly and reproducibly access frequently used settings. The intuitive user guidance as well as the choice between a 2-button handpiece and double footswitch provide flexibility in daily work in a medical practice. The monitoring of the neutral electrode with
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- MicroMed
- Model
- 150-100-001
- Product type
- Electrosurgery
- Output power
- 100 watts
- Power adjustment
- 1–25 watts in 1-watt increments (for micro applications)
- Frequency
- 500 kHz
- Memory slots
- 9 individually programmable memories
- Activation
- 2-button handpiece or double footswitch
- AUTO-START function
- Yes (for bipolar applications)
- Neutral electrode monitoring
- Visual and acoustic signalling
- Safety features
- Automatic power adjustment and safety shutdown
- Compatibility
- Mono- and bipolar instruments, various electrodes, handpieces and footswitches
- Dimensions (W x D x H)
- 310 x 310 x 145 mm
- Weight
- 6.9 kg
- Mains connection
- 100–260 V, 50–60 Hz
- Protection class
- I
- Classification
- CF, IIb
- Warranty
- 24 months
