Sterilization & CSSD
MELAquick®12+ p ME11012
Melag · ME11012
Article No. AK-SC-092Product details
- Article number
- AK-SC-092
- Category
- Sterilization & CSSD
- Brand
- Melag
- Model
- ME11012
Description

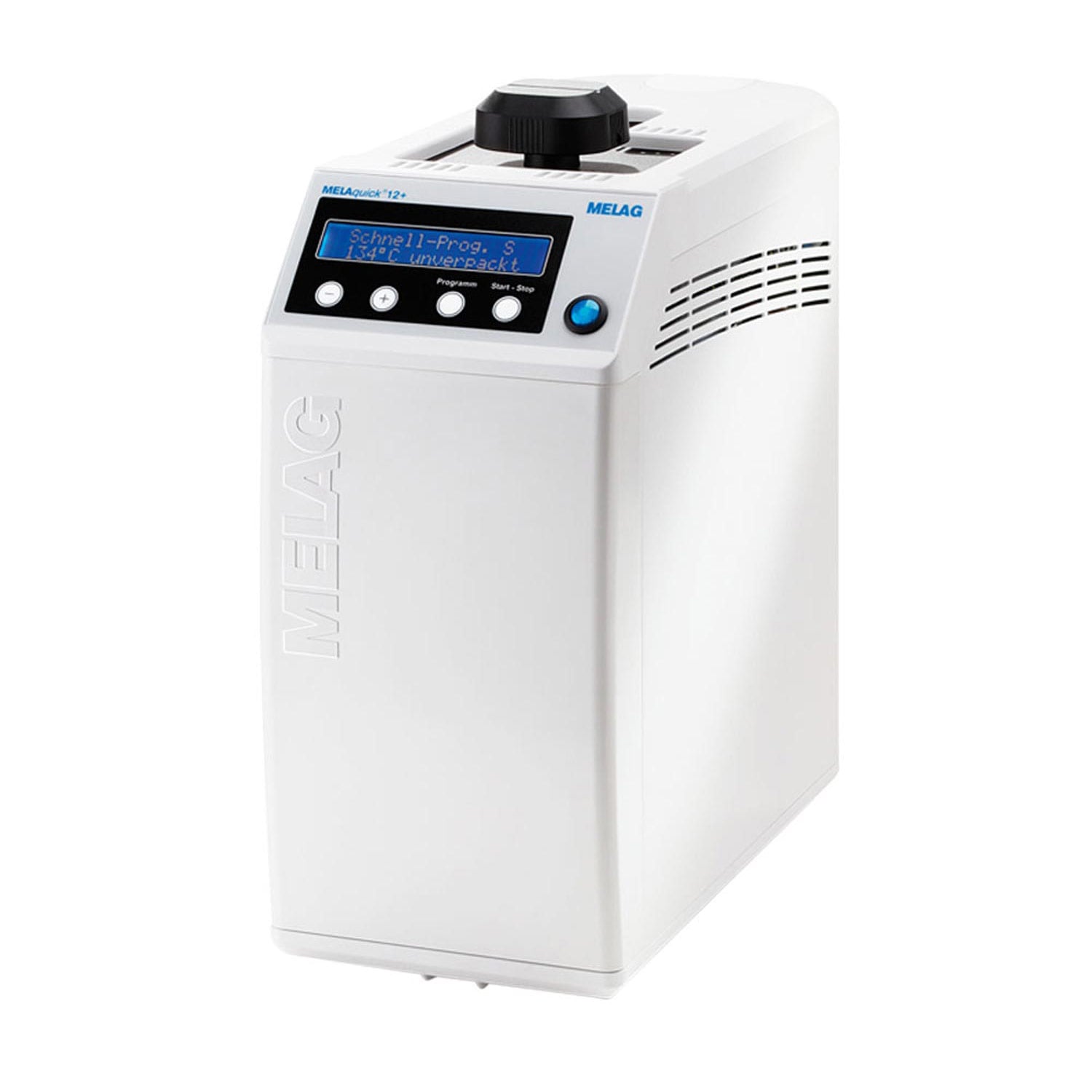

The stand-alone MELAquick®12+ p quick steam sterilizer from Melag is used for the rapid and RKI-compliant sterilization of up to 12 wrapped or unwrapped transmission instruments in only 7 minutes. It offers three class S programmes according to EN 13060, which can be easily selected via four softkeys on the display. The compact autoclave has an integrated compressor pump so that it can be used anywhere, even in rooms without a compressed air connection. Programs PackagingSterilization timeOperating time*DryingLoadng**Quick-Program Sunwrapped3.5 min. at 134 °C6-8 min.~ 1 min.1 kgUniversal-Program Swrapped5.5 min. at 134 °C13-15 min.~ 8 min. 1 kgPrion Program Swrapped20.5 min. at 134 °C28-34 min.~ 8 min.1 kg*Without drying and dependent on loading and installation conditions such as mains voltage and air pressure, for example. We reserve the right to technical modifications**Maximum load for unwrapped instrumentsTechnical Details
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Melag
- Model
- ME11012
- Product type
- Autoclaves
- Air removal principle
- Fractionated gravity method
- Drying
- Pulsating overpressure drying
- Feed water
- Aqua dem, Aqua dest
- Dimensions
- 20.5 x 43 x 46 cm (W x H x D)
- Weight (empty)
- approx. 24 kg
- Operating pressure/temperature
- 2.2 bar/136 °C
- Electrical supply
- 220-240 V; 50/60 Hz; 9.5 A; 2,050 W
