Clinical Laboratory
BioBlue Trinocular Microscope BB.4253
Euromex · BB.4253
Article No. AK-CL-091Product details
- Article number
- AK-CL-091
- Category
- Clinical Laboratory
- Brand
- Euromex
- Model
- BB.4253
Description

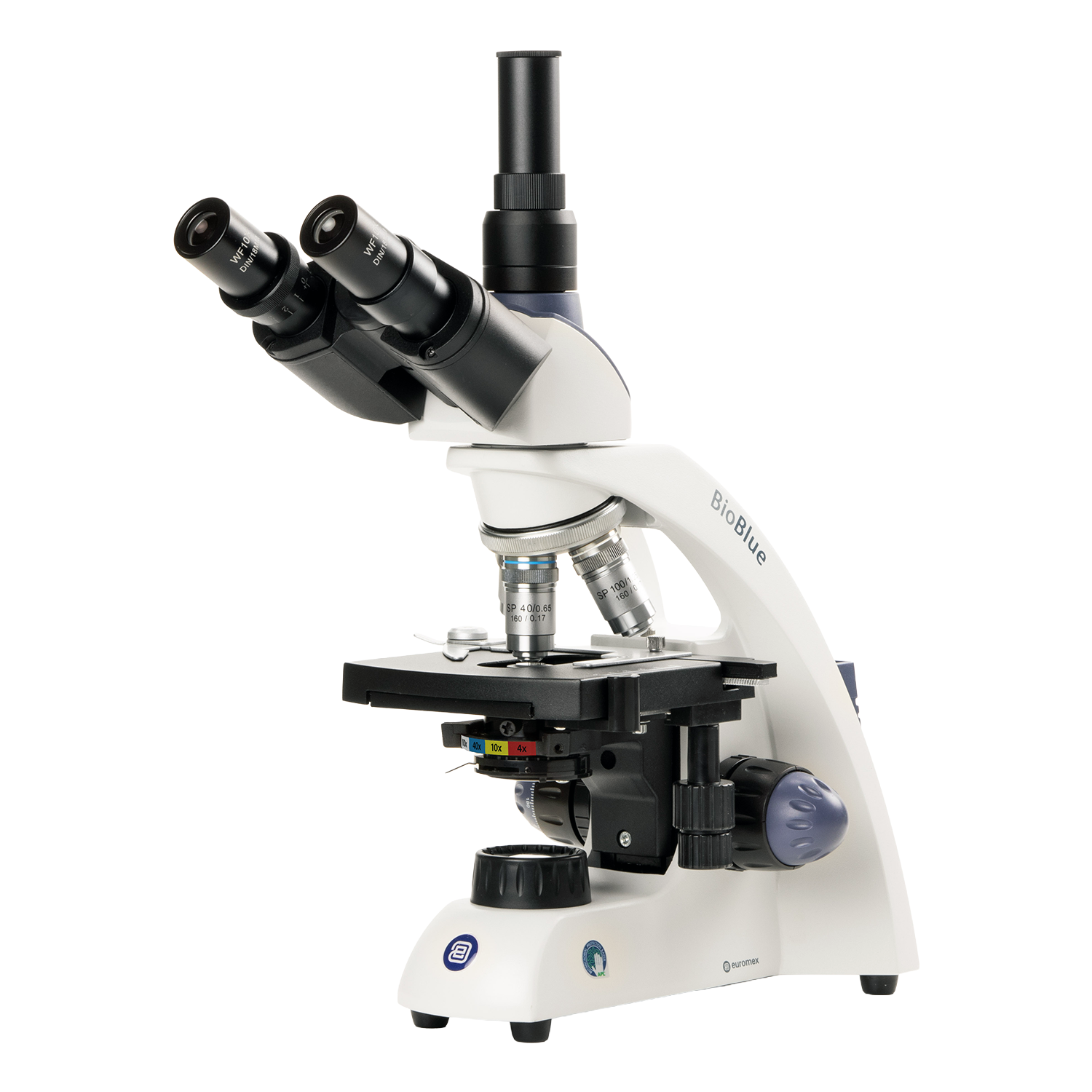

The BioBlue Trinocular Microscope is a modern transmitted light microscope designed for education, laboratory diagnostics and life sciences applications. It features a Siedentopf trinocular head, inclined at 30° and rotatable 360°, ensuring ergonomic and flexible viewing. The fixed 50:50 light splitter enables simultaneous visual observation and digital image capture. Equipped with semi-plan achromatic objectives (4x, 10x, S40x, S100x oil immersion) and WF 10x/18 mm widefield eyepieces (DIN), the microscope delivers high-resolution, detailed and contrast-rich imaging for demanding laboratory work. The optics are anti-reflective coated and antifungal treated, supporting long-term optical performance and reliability. A coaxial coarse and fine focusing system with 2 µm fine adjustment precision allows accurate specimen focusing. The mechanical stage (130 x 130 mm, 70 x 28 mm travel range) ensures smooth and efficient slide handling for routine and multi-sample analysis. The microscope uses Dual-Color NeoLED™ illumination, providing adjustable daylight or halogen-like light for optimal specimen contrast. Flexible operation is possible via USB-C power supply (100–240 V AC) or wireless u
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Euromex
- Model
- BB.4253
- Product type
- Microscopes
- Type
- Trinocular transmitted light microscope
- Fixed light splitter (50
- 50) for camera connection
- Eyepieces
- Widefield (WF) 10x/18 mm, DIN standard
- Nosepiece
- Inverted, ball-bearing mounted, 4-fold
- Objectives
- Semi-plan
- Optics
- Antifungal treated, anti-reflective coated
- Focusing range
- 0.4 mm per rotation
- Total travel range
- approx. 23 mm
- Size
- 130 × 130 mm
- Condenser
- Height-adjustable Abbe condenser (NA 1.25) with iris diaphragm and filter holder
- Illumination
- 1 W Dual-Color NeoLED™ (daylight white or halogen-like)
- Housing
- Antibacterial protective coating (APL)
- Warranty
- 10-year manufacturer's warranty
- Head
- Siedentopf trinocular head, 30° inclined, 360° rotatable, fixed light splitter (50:50)
